Blower motor location/task/design/function - GF83.10-P-2170GI
MODEL 163 as of 1.9.01 with CODE (580a) Automatic air conditioning

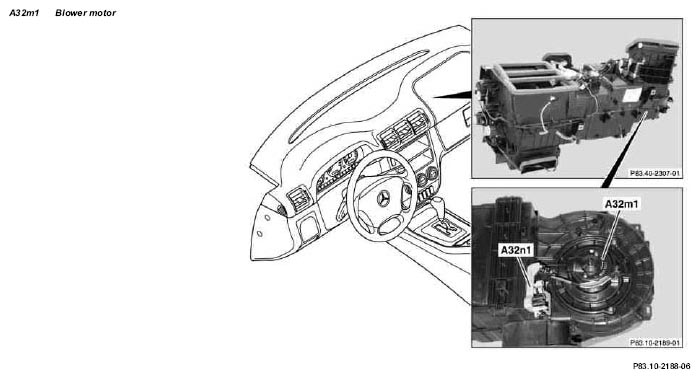

| Blower motor location | The blower motor (A32m1) is to the bottom right of the evaporator housing below the glove compartment. | ||
| Blower motor task | In fresh air mode the blower motor draws in fresh air via the fresh air/recirculating air flap. In recirculating air mode, air from the vehicle interior is drawn into the evaporator housing via the fresh air/recirculating air flap. When residual engine heat utilization is being used, the blower motor circulates the air around the interior. | ||
| Blower motor design | The blower motor is designed as a radial blower. | ||
| Blower motor function | GF83.10-P-2170-01GI |
