Ambient temperature display temperature sensor, location/task/function - GF83.57-P-2119GI

MODEL 163 as of 1.9.01 with CODE (580a) Automatic air conditioning

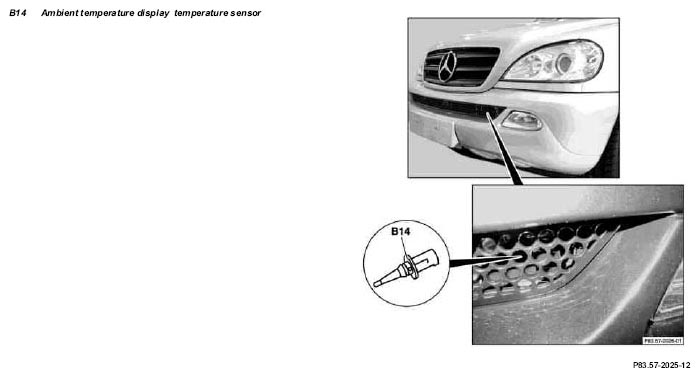

Fig 1: Identifying Ambient Temperature Display Temperature Sensor

Courtesy of MERCEDES-BENZ USA

	Ambient temperature display temperature sensor, location	The ambient temperature display temperature sensor (B14) is located on the front left side of the bumper.
	Ambient temperature display temperature sensor, task	The ambient temperature display temperature sensor (B14) determines the ambient temperature.
	Ambient temperature display temperature sensor, function		GF83.57-P-2119-01GI
