4.2L & 5.0L (Engine 119)

NOTE: The following graphics apply to E420 (1997), S420 (1996-99), S500 (1996-99) and SL500 (1996-98). See Fig 1 -Fig 13 .

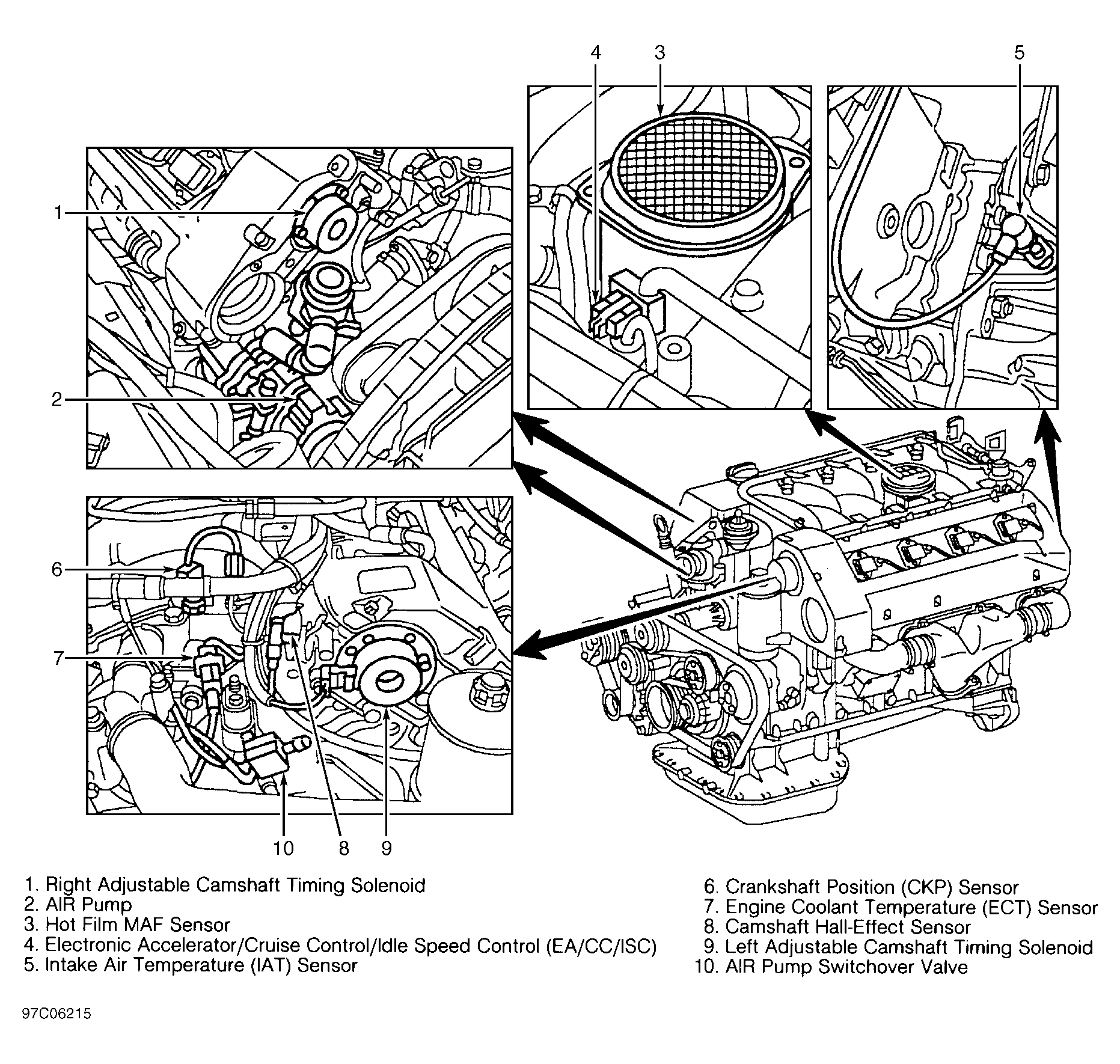

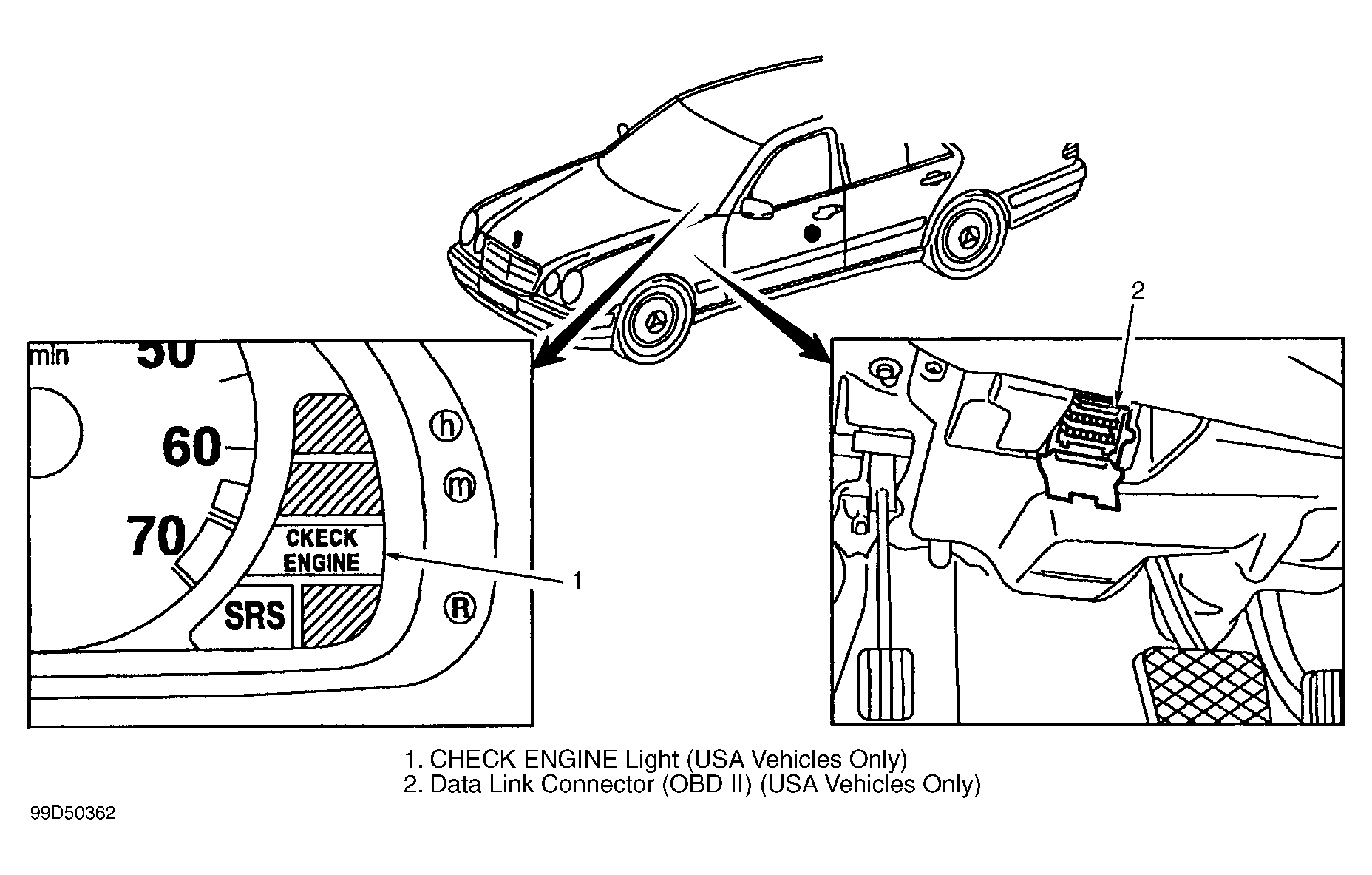

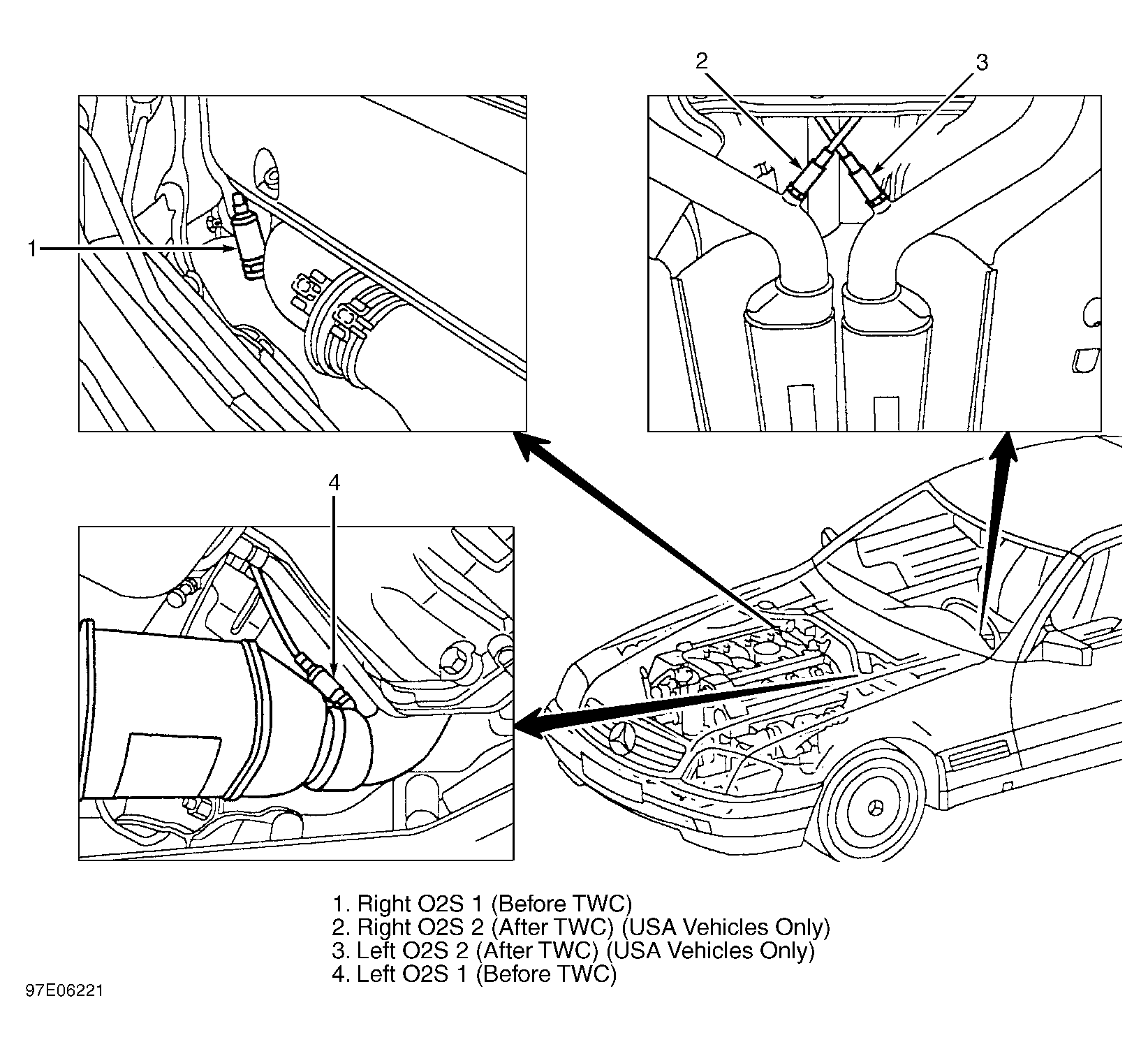

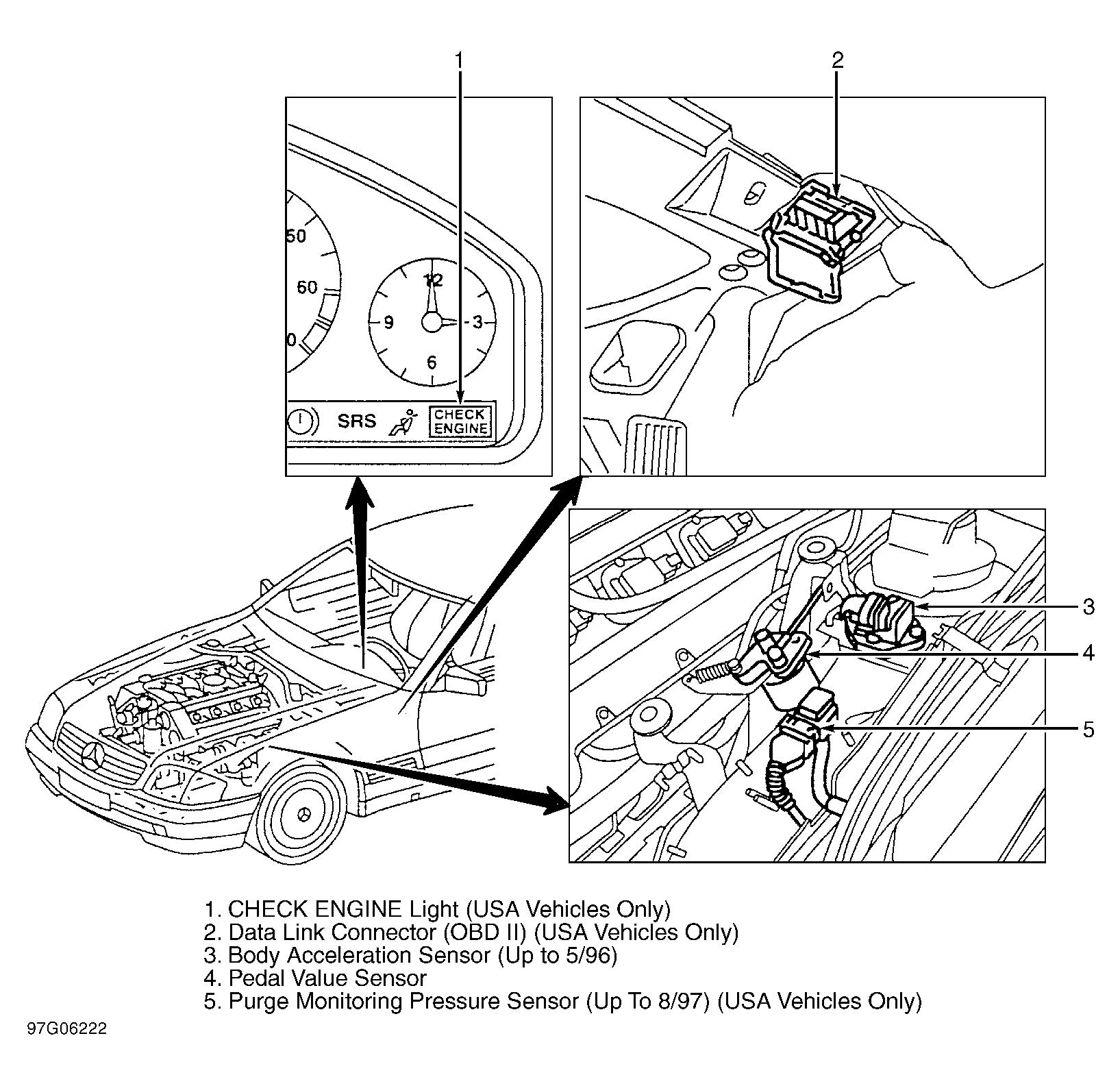

Fig 1: Locating Engine Components (E420, S420, S500 & SL500 - 1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

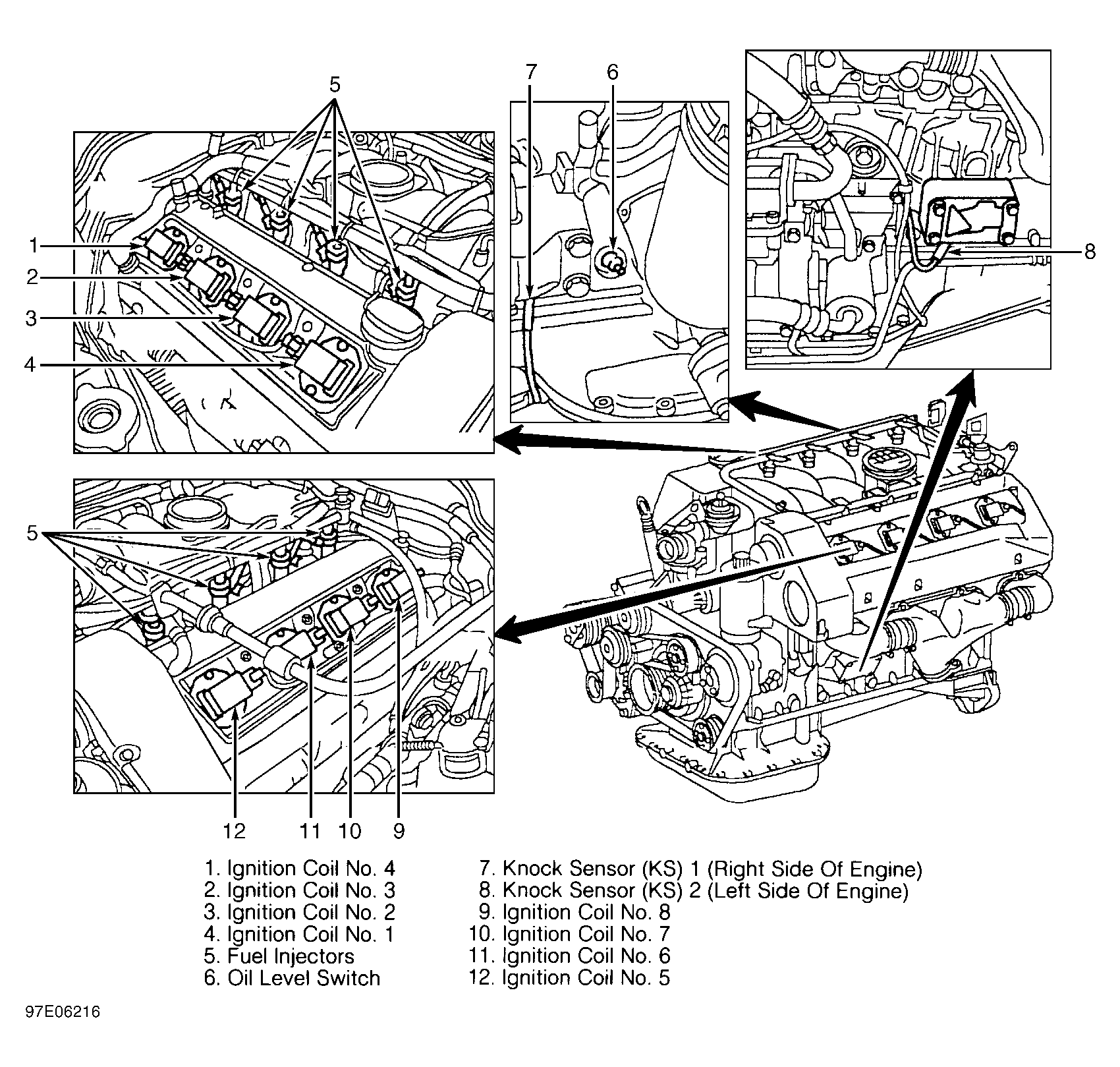

Fig 2: Locating Engine Components (E420, S420, S500 & SL500 - 2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

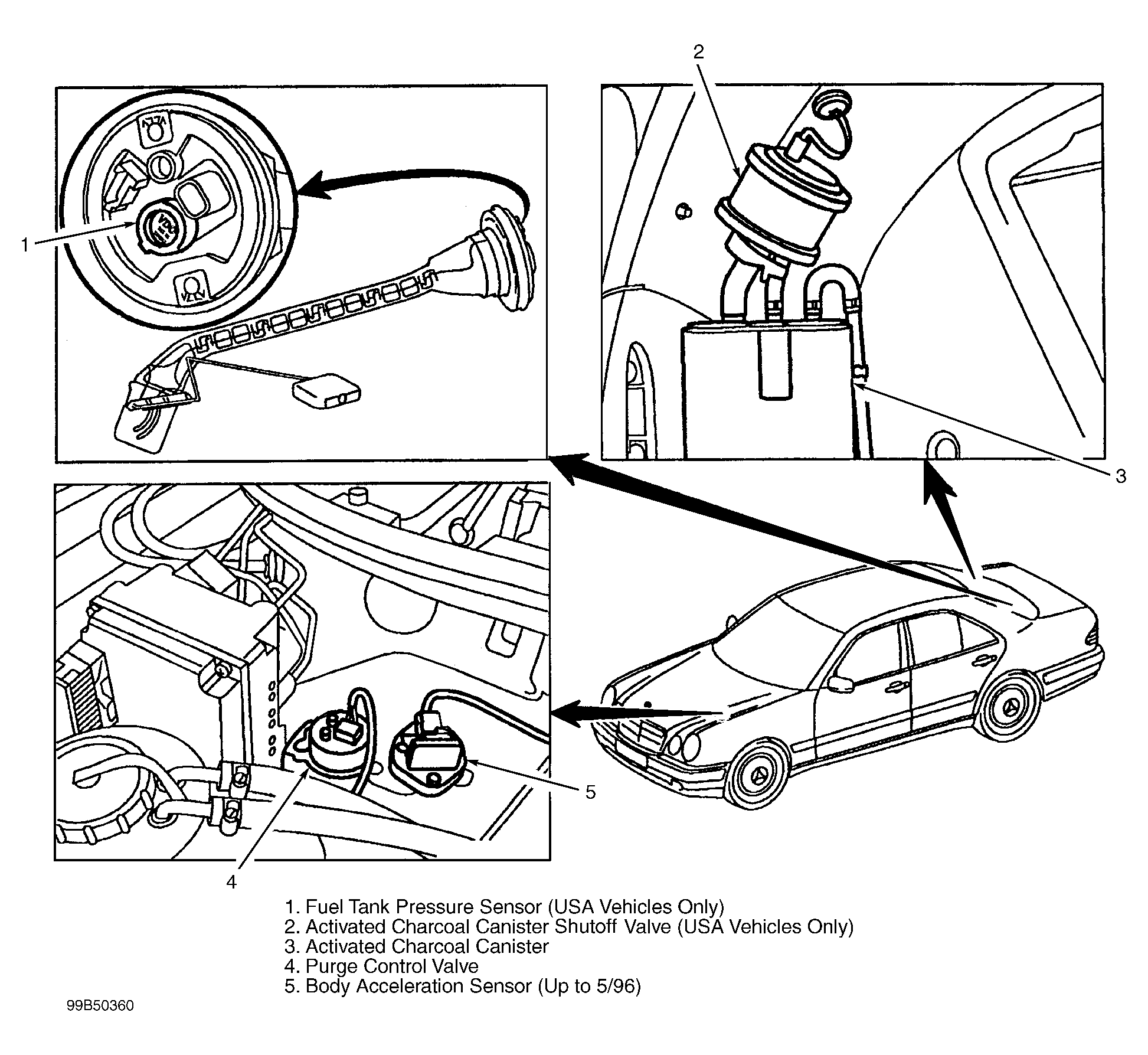

Fig 3: Locating System Components (E420 - 1 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Locating System Components (E420 - 2 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Locating System Components (E420 - 3 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Locating System Components (E420 - 4 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

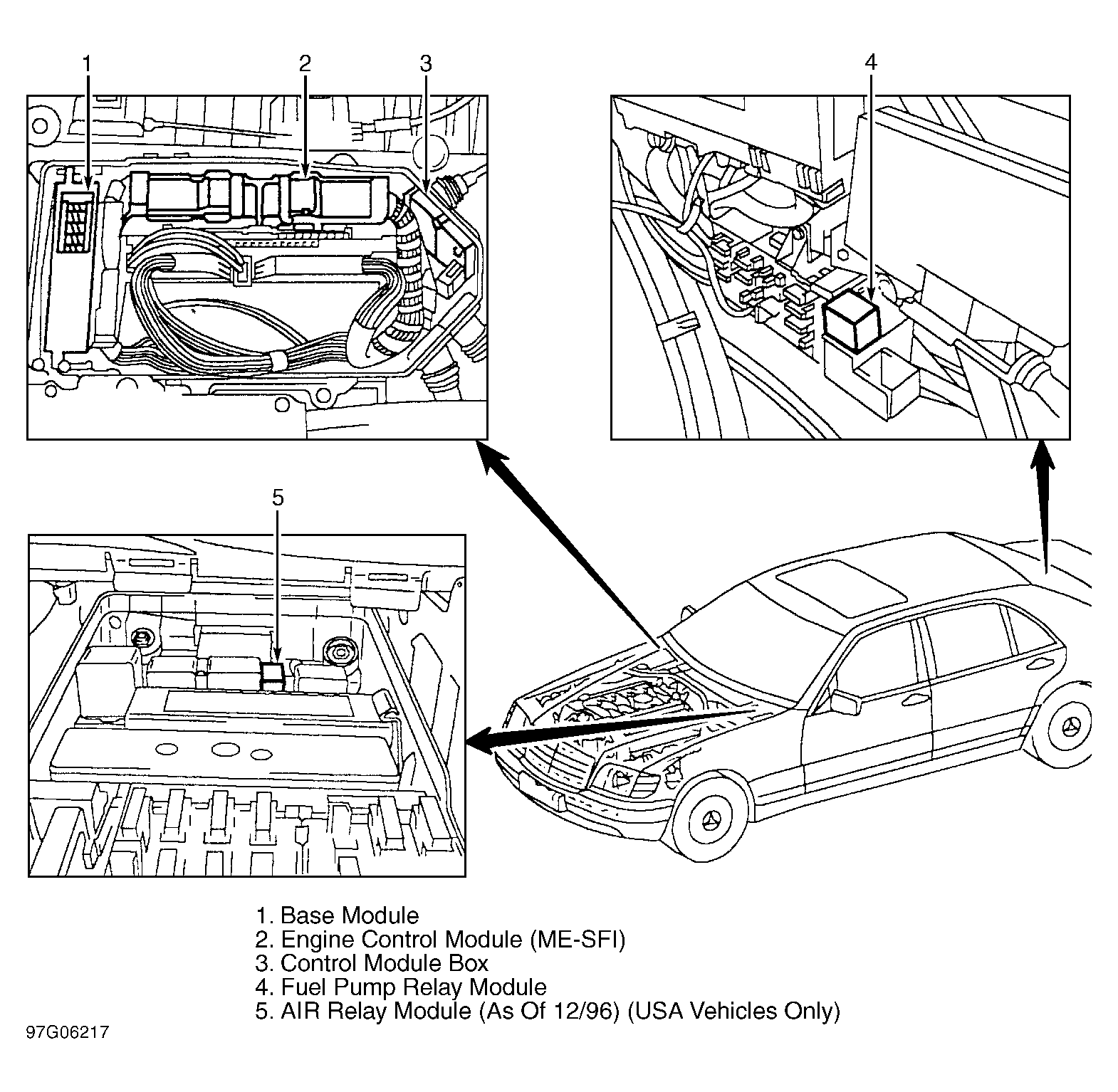

Fig 7: Locating System Components (S420 & S500 - 1 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

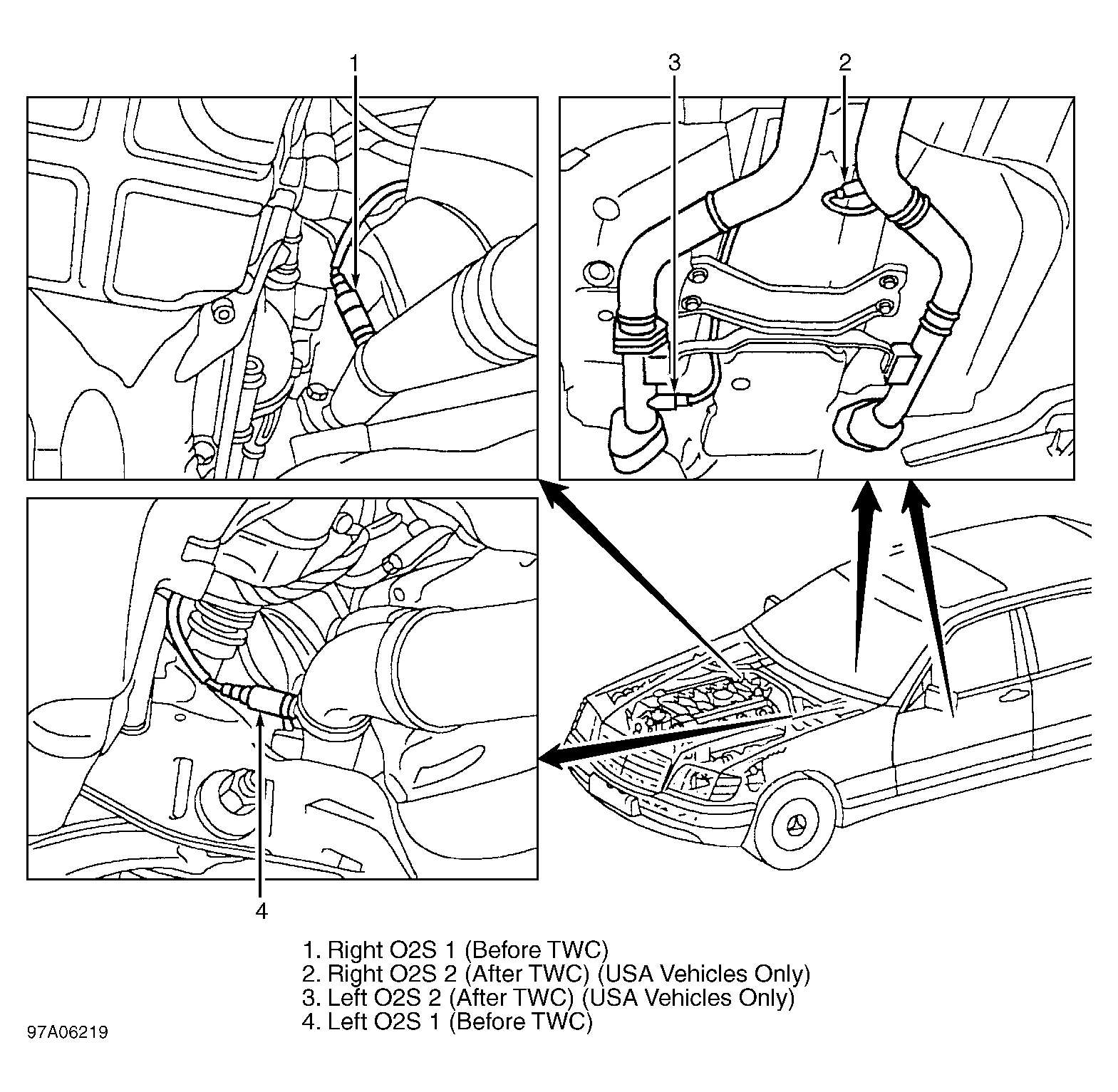

Fig 8: Locating System Components (S420 & S500 - 2 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

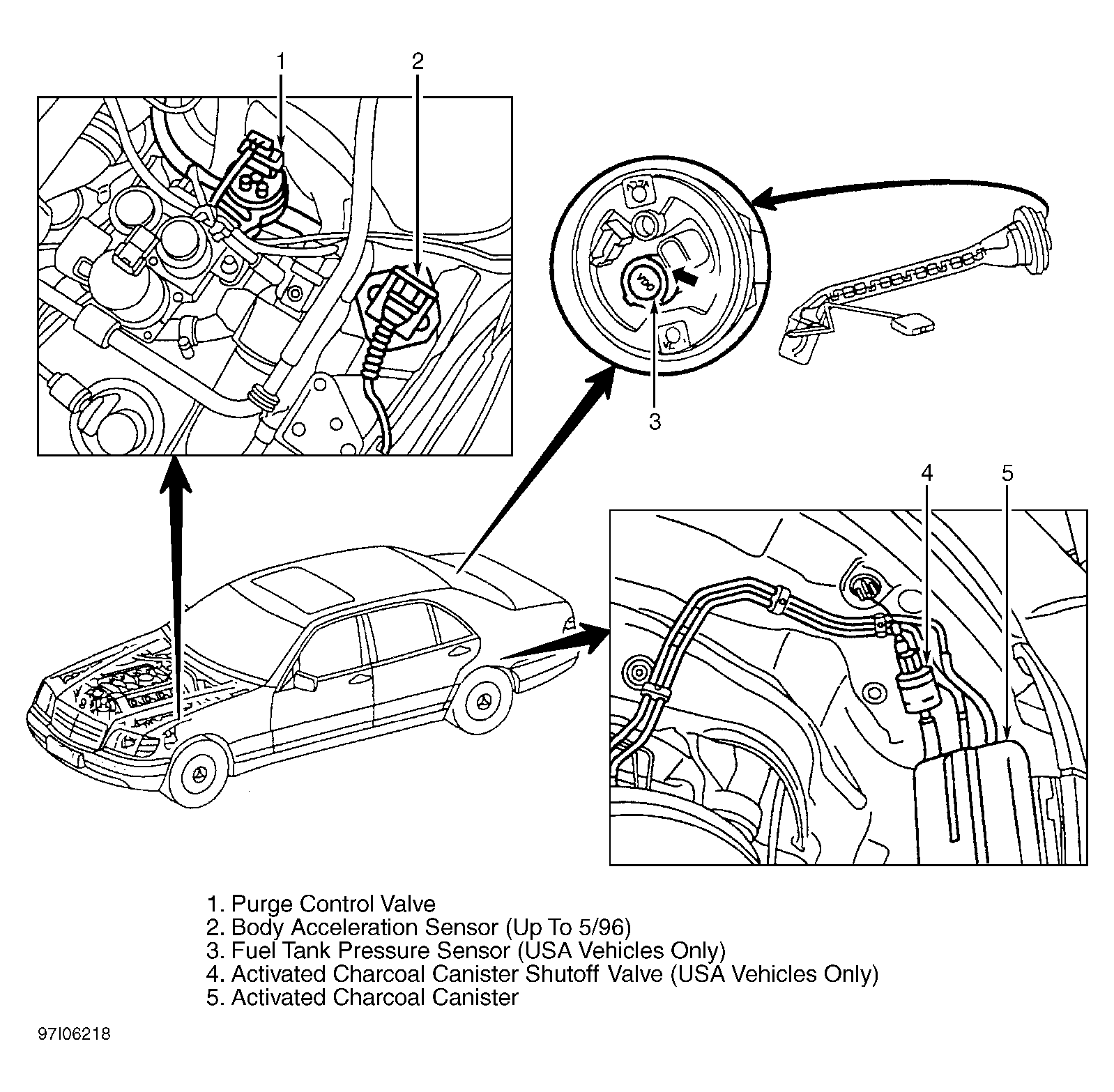

Fig 9: Locating System Components (S420 & S500 - 3 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

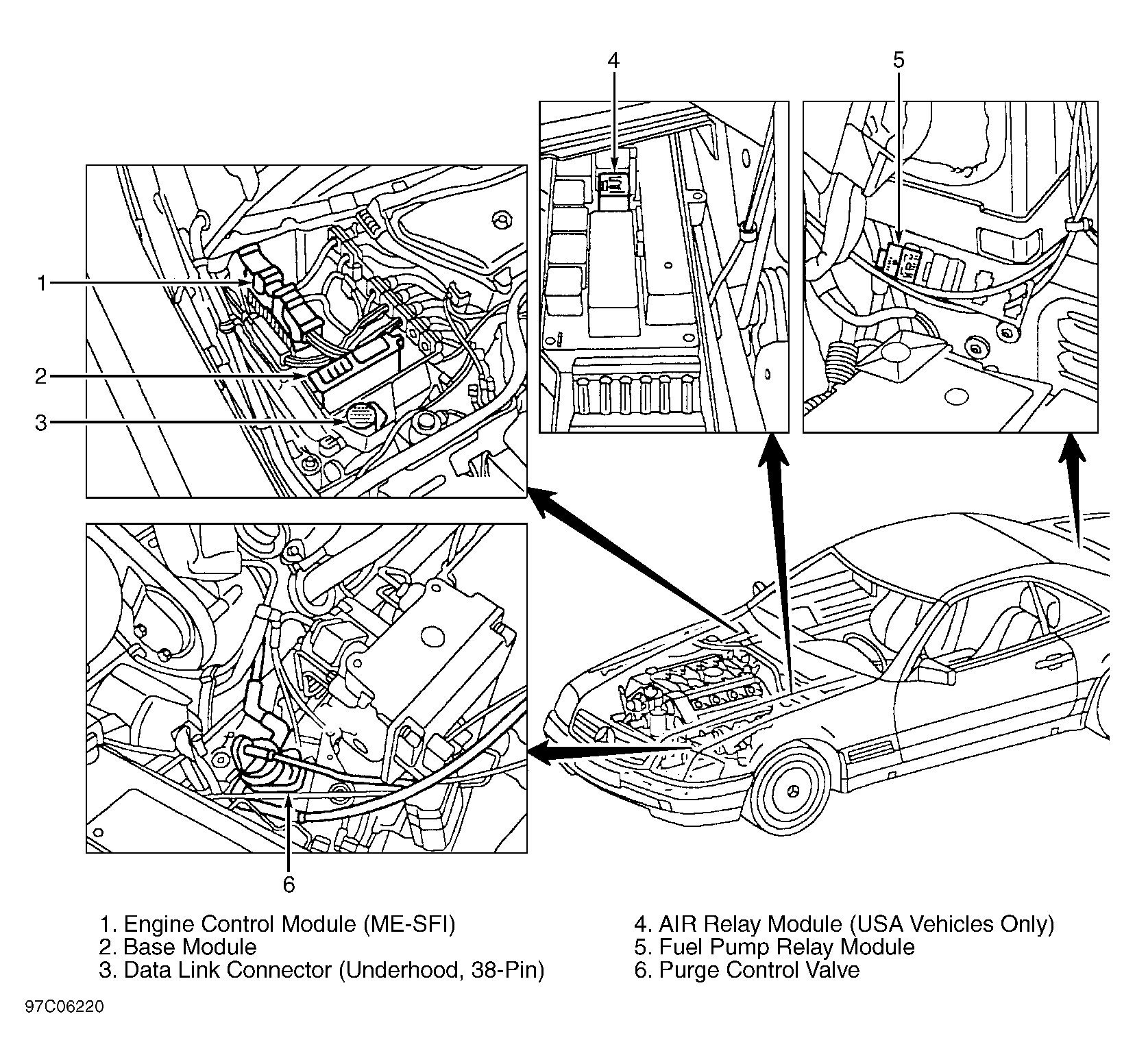

Fig 10: Locating System Components (SL500 - 1 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

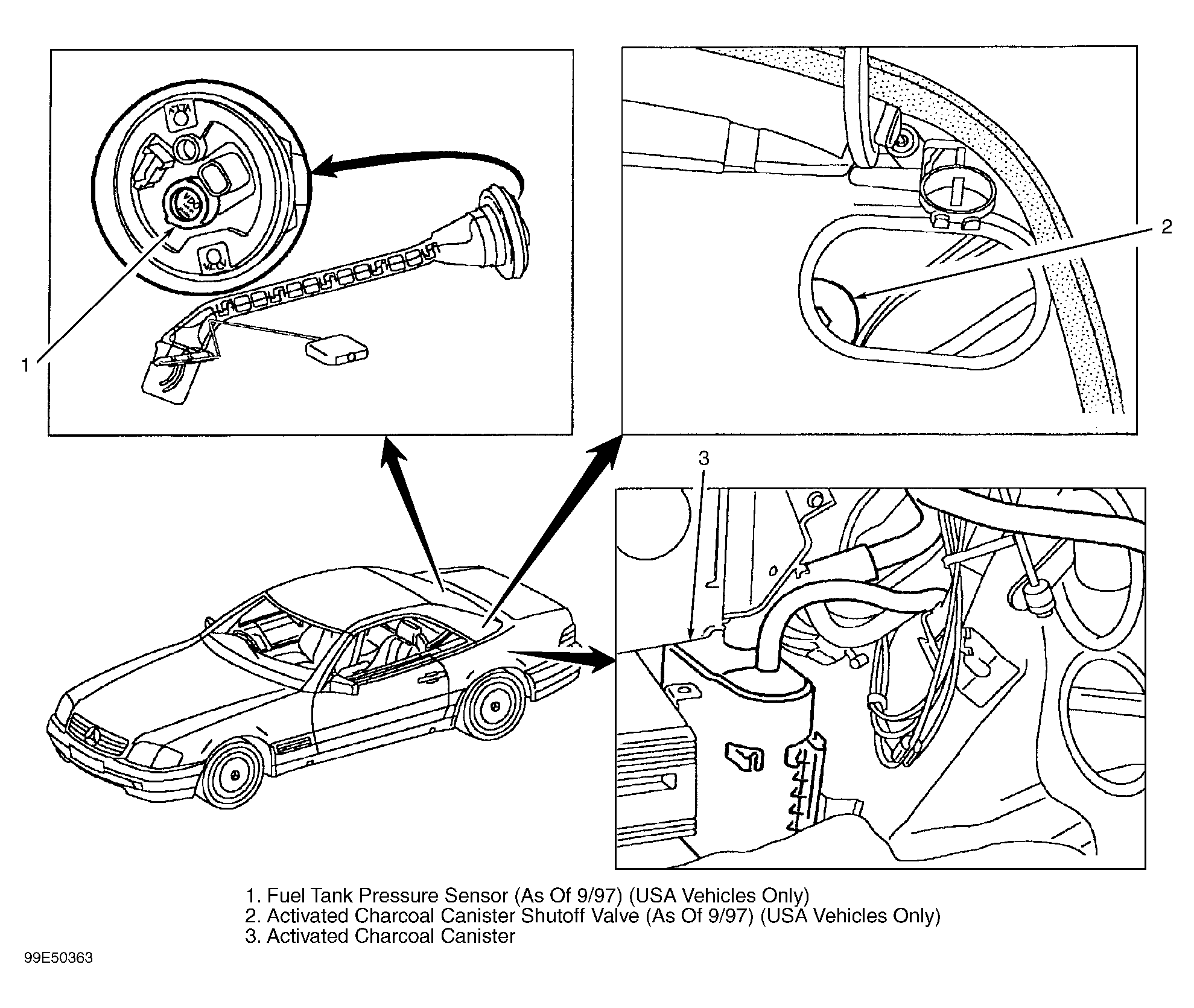

Fig 11: Locating System Components (SL500 - 2 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 12: Locating System Components (SL500 - 3 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 13: Locating System Components (SL500 - 4 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
