ME-SFI ignition system function diagram - GF15.12-P-0001-01A

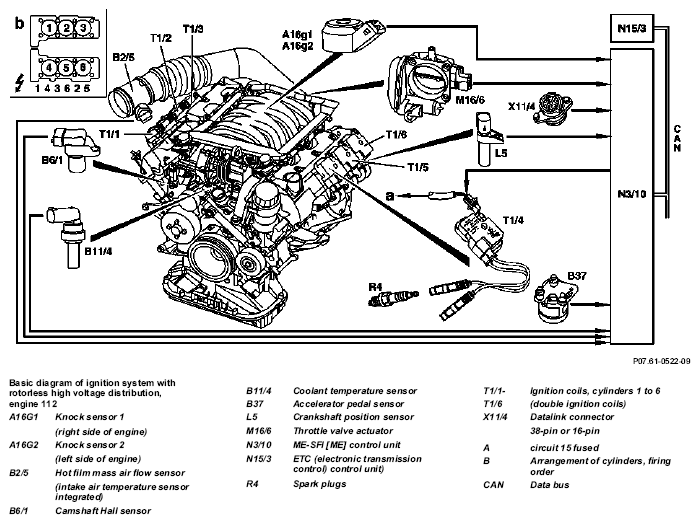

Fig 1: Identifying ME-SFI Ignition System Components - Engine 112
G04606217
