IFI limiting engine maximum speed function - GF07.12-P-3007HA
ENGINE 605.960 in MODEL 202.128 as of 1.4.96, 202.188
ENGINE 605.912 in MODEL 210.010 as of 1.6.96, 210.210 /610
ENGINE 606.912 in MODEL 210.020 as of 1.6.96 with CODE (491) U.S. version
ENGINE 606.962 in MODEL 210.025 /225
ENGINE 606.961 in MODEL 140.135
ENGINE 605.962 in MODEL 210.015 /215
Task
To limit the maximum speed of the engine.
Function

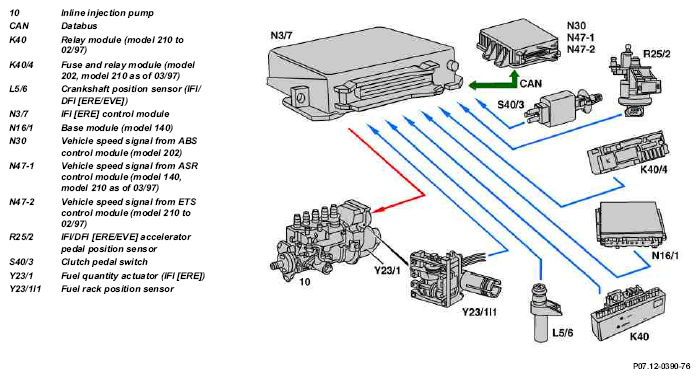

The IFI [ERE] control module (N3/7) detects the engine speed via the IFI/DFI [ERE/EVE] crankshaft position sensor (L5/6) and limits it by means of the fuel quantity actuator (Y23/1) and the control rod to approximately 5400 rpm, or 5300 rpm for engine 606.961/962 (under no load).
Drive train protection for MT vehicles
The injected quantity is reduced in the operating states stated below as a protection for the engine and the drive train:
- After each engine start as long as the clutch pedal is not fully depressed
- When the clutch pedal is depressed
- When the clutch pedal is depressed and vehicle speed is <10 km/h
Engine speed is limited by the IFI [ERE] control module (N3/7) to 3500 rpm.
The following information is processed for this purpose:
- Engine speed
- Clutch pedal switch (S40/3)
| Fuse and relay module location/task/function | Model 202 Model 210 as of 03/97 |
GF07.13-P-3141H | |
| Relay module location/task/design/function | Model 210 to 02/97 | GF07.13-P-3101H | |
| IFI [ERE] control module location/task/function | GF07.12-P-3102HA | ||
| Crankshaft position sensor location/task/design/function | GF07.04-P-4116H | ||
| Fuel quantity actuator (IFI [ERE]) location/task/function | GF07.12-P-3131H | ||
| Fuel rack position sensor location/task/design/function | GF07.04-P-5022H | ||
| Clutch pedal switch location/task/function | GF29.10-P-2100A | ||
| ABS control module location/task/design/function | Model 202 | GF42.30-P-4500A | |
| ETS control module location/task/design/function | Model 210 to 02/97 | GF42.35-P-4500A | |
| ASR control module location/task/design/function | Model 140 Model 210 as of 03/97 |
GF42.40-P-4500A | |
| CAN databus function | GF54.00-P-0005HA |
