IFI idle speed control function - GF07.12-P-3002HA
ENGINE 605.960 in MODEL 202.128 as of 1.4.96, 202.188
ENGINE 605.912 in MODEL 210.010 as of 1.6.96, 210.210 /610
ENGINE 606.912 in MODEL 210.020 as of 1.6.96 with CODE (491) U.S. version
ENGINE 606.962 in MODEL 210.025 /225
ENGINE 606.961 in MODEL 140.135
ENGINE 605.962 in MODEL 210.015 /215
Task
Controlling the idle speed, even when engine operating under load (e.g. with or without gear engaged or A/C compressor on).
Function

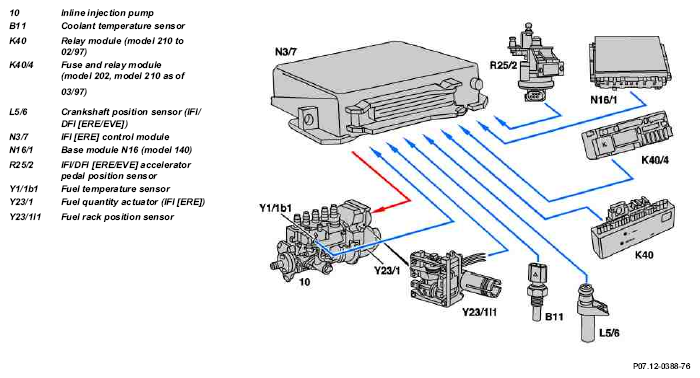

The IFI/DFI [ERE/EVE] crankshaft position sensor (L5/6) delivers an A.C. signal to the IFI [ERE] control module (N3/7). The control module calculates the engine speed, compares actual and specified values and governs the injection quantity via the IFI [ERE] fuel quantity actuator (Y23/1) and the control rod.
| Fuse and relay module location/task/function | Model 202 Model 210 as of 03/97 |
GF07.13-P-3141H | |
| Relay module location/task/design/function | Model 210 to 02/97 | GF07.13-P-3101H | |
| IFI [ERE] control module location/task/function | GF07.12-P-3102HA | ||
| Crankshaft position sensor location/task/design/function | GF07.04-P-4116H | ||
| Fuel quantity actuator (IFI [ERE]) location/task/function | GF07.12-P-3131H | ||
| Fuel rack position sensor location/task/design/function | GF07.04-P-5022H | ||
| Accelerator pedal position sensor location/task/design/function | GF07.04-P-5029H |
