IFI [ERE] ignition ON function - GF07.12-P-2000HA

ENGINE 605.960 in MODEL 202.128 as of 1.4.96, 202.188

ENGINE 605.912 in MODEL 210.010 as of 1.6.96, 210.210 /610

ENGINE 606.912 in MODEL 210.020 as of 1.6.96 with CODE (491) U.S. version

ENGINE 606.962 in MODEL 210.025 /225

ENGINE 606.961 in MODEL 140.135

ENGINE 605.962 in MODEL 210.015 /215

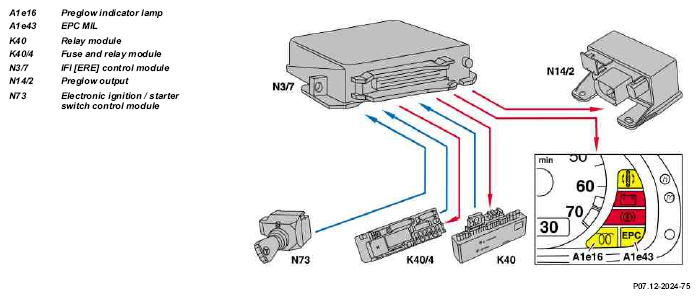

Fig 1: Identifying IFI (ERE) Ignition ON Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	IFI [ERE] ignition ON function	Turning the key in the glow/starter switch (S2/2) or the electronic ignition switch control module supplies current to the glow output stage (N14/2), the EPC MIL (A1e43) and the IFI [ERE] control module (N3/7). The glow output stage (N14/2) initiates preglow. The preglow indicator lamp (A1e16) and the EPC MIL (A1e43) or CHECK ENGINE MIL (A1e26- version) illuminate.
	Electronic ignition switch control module location/task/design/function	Model 202 as of 06/97 Model 210 as of 03/97	GF80.57-P-4102A
	Preglowing function		GF15.20-P-3000HB
	EPC malfunction indicator lamp location/task/function		GF54.30-P-4100H
	CHECK ENGINE malfunction indicator lamp location/task/function	only	GF07.13-P-3144H
	IFI [ERE] control module location/task/function		GF07.12-P-3102HA
	Fuse and relay module location/task/function	Model 202 Model 210 as of 03/97	GF07.13-P-3141H
	Relay module location/task/design/function	Model 210 to 02/97	GF07.13-P-3101H
