Engine Controls - Self-Diagnostics With Codes
>>
IFI Control Module Connector Identification
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
IFI Control Module Connector Identification
NOTE:
For IFI control module connector identification, see
Fig 1
.

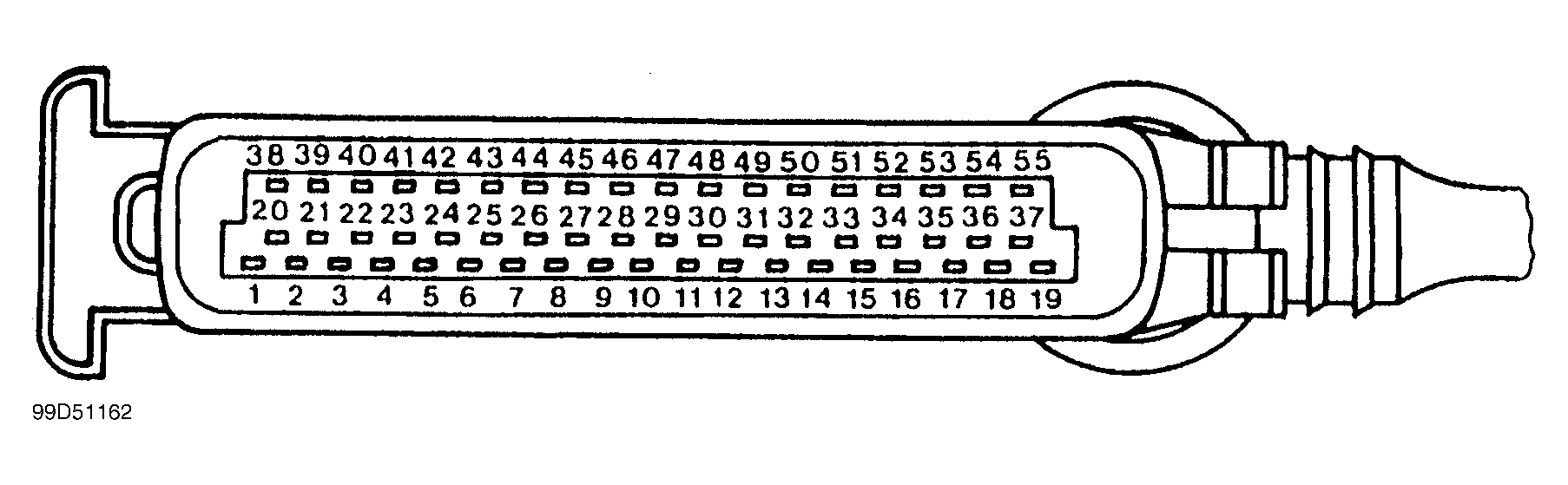

Fig 1: In-Line Fuel Injection (IFI) Control Module Connector Terminal Identification
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
