Fuel Injection System Test (Steps 29.0 & 30.0)

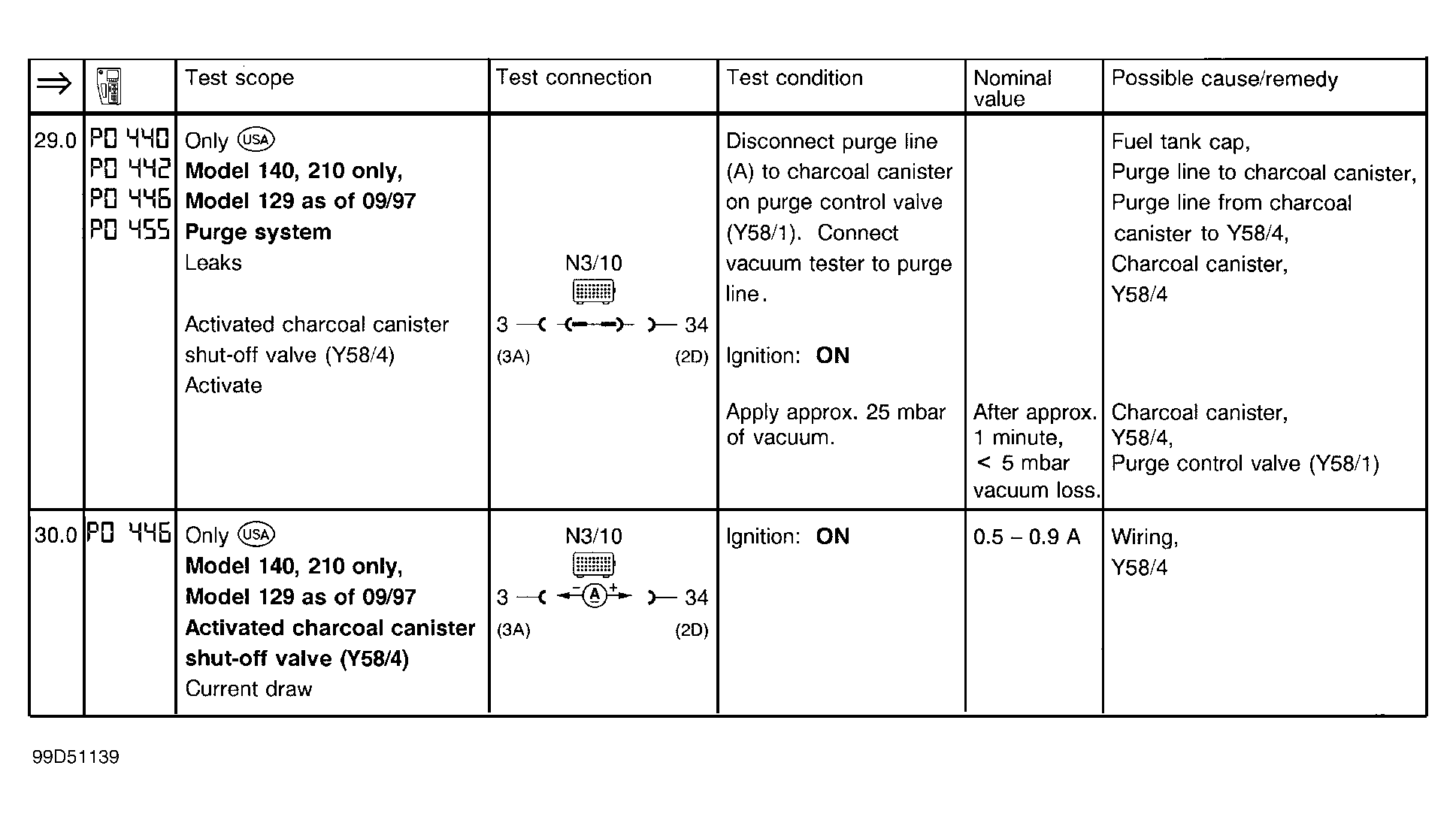

Fig 1: Fuel Injection System Test (Steps 29.0 & 30.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
