Test 31: Switchover Solenoid Valve Internal Resistance

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 1999 Mercedes-Benz SLK230, 1999 Mercedes-Benz ML430, 1999 Mercedes-Benz ML320, 1999 Mercedes-Benz E430, and 1999 Mercedes-Benz E320. However, it is still accessible from the selected car via links, so may be relevant.

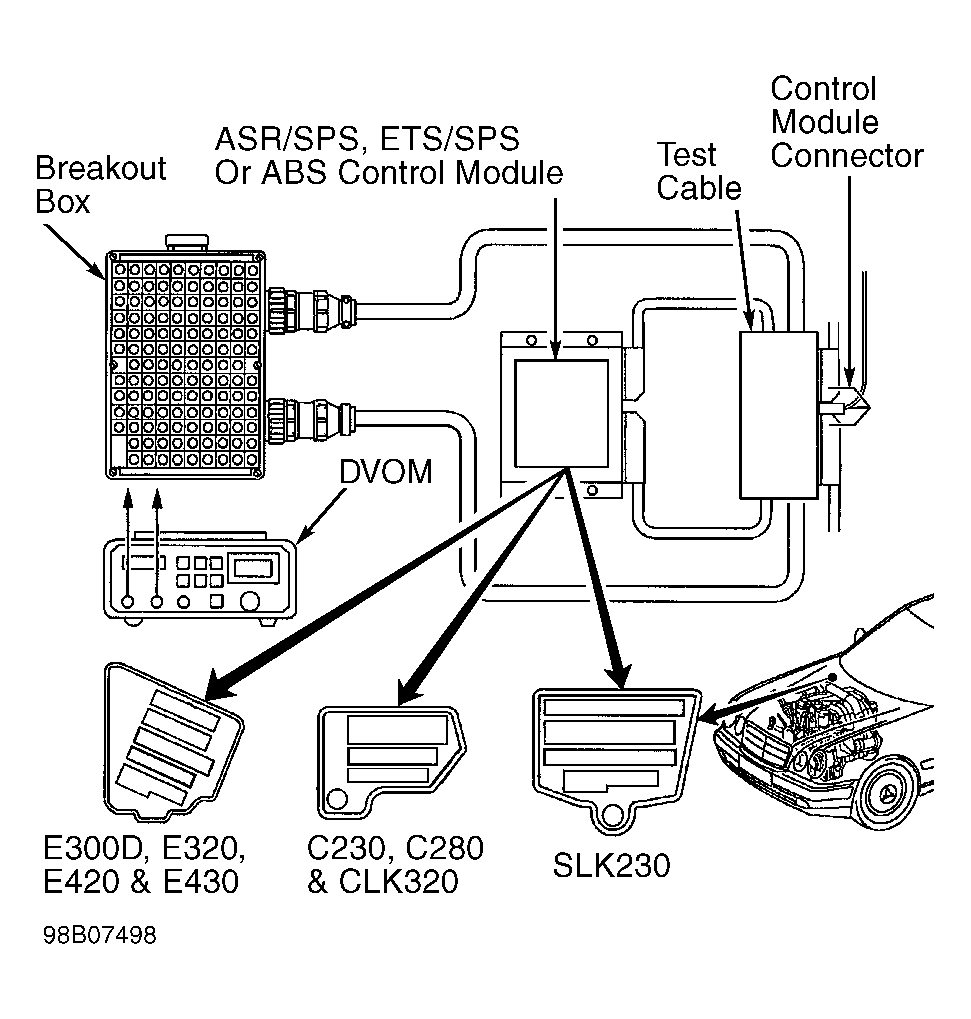

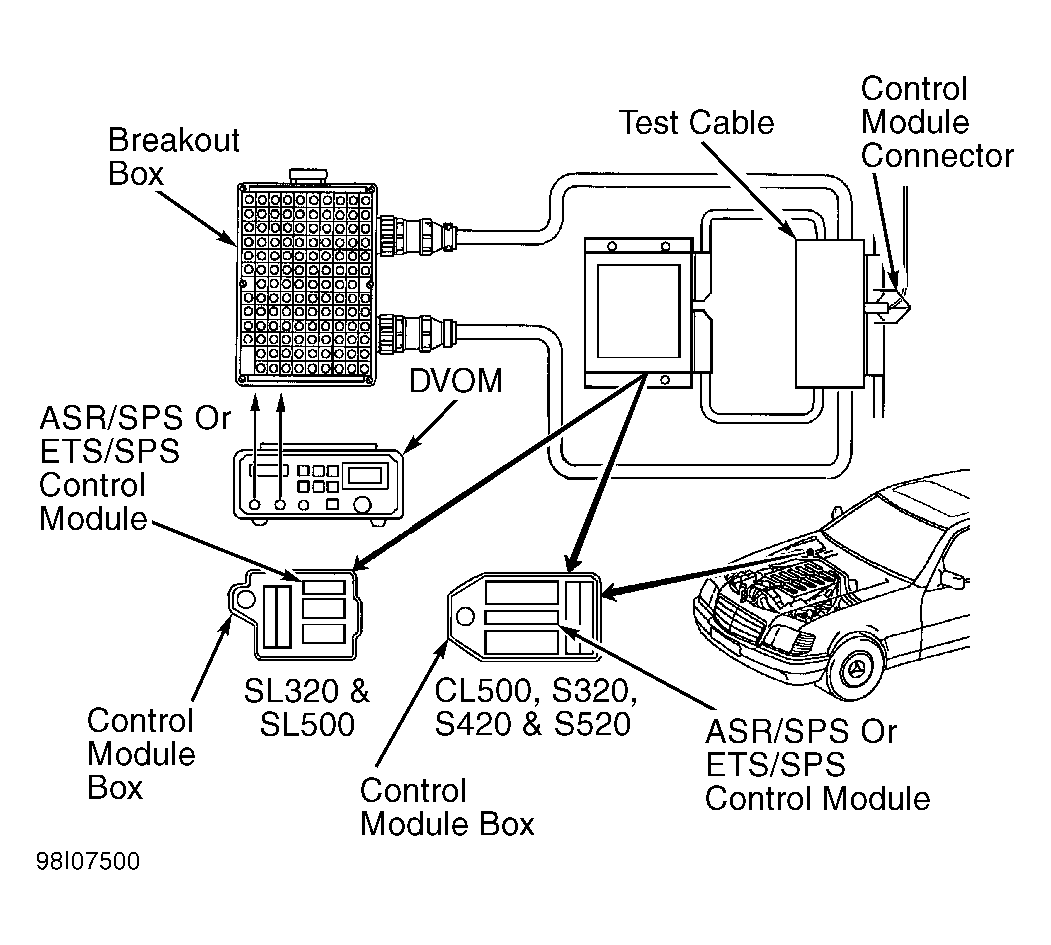

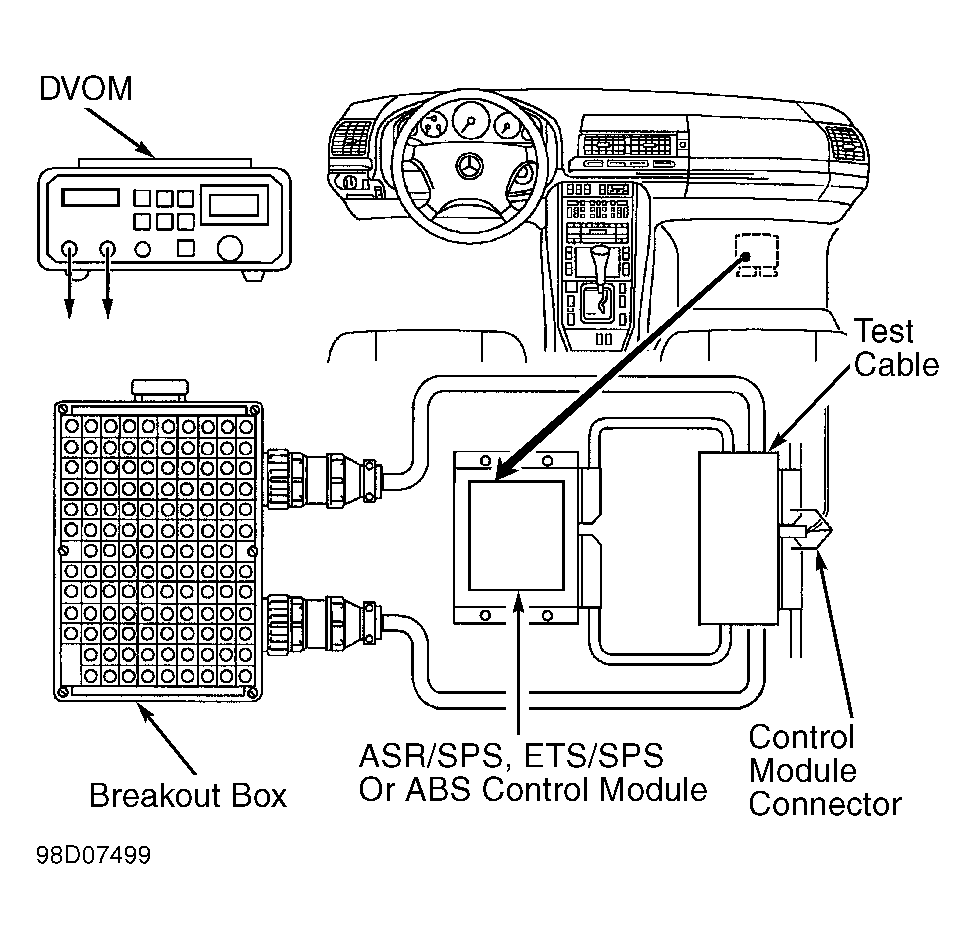

  1. Using Adapter (202 589 03 63 00), connect Breakout Box (129 589 00 21 00) to traction control module. See Figure, Figure or Figure. Turn ignition switch to OFF position. Disconnect traction control module, leaving wiring harness connected to breakout box.
  2. On models equipped with Bosch units, check resistance between terminals No. 62 and 80 at breakout box. On models equipped with Teves units, check resistance between terminals No. 65 and 71 at breakout box. If 5.4-12.6 ohms exists, system is okay at this time. If 5.4-12.6 ohms does not exist, check wiring. See WIRING DIAGRAMS . If wiring is okay, replace hydraulic unit.
