Electronic Accelerator Test (Steps 2.0-2.2)

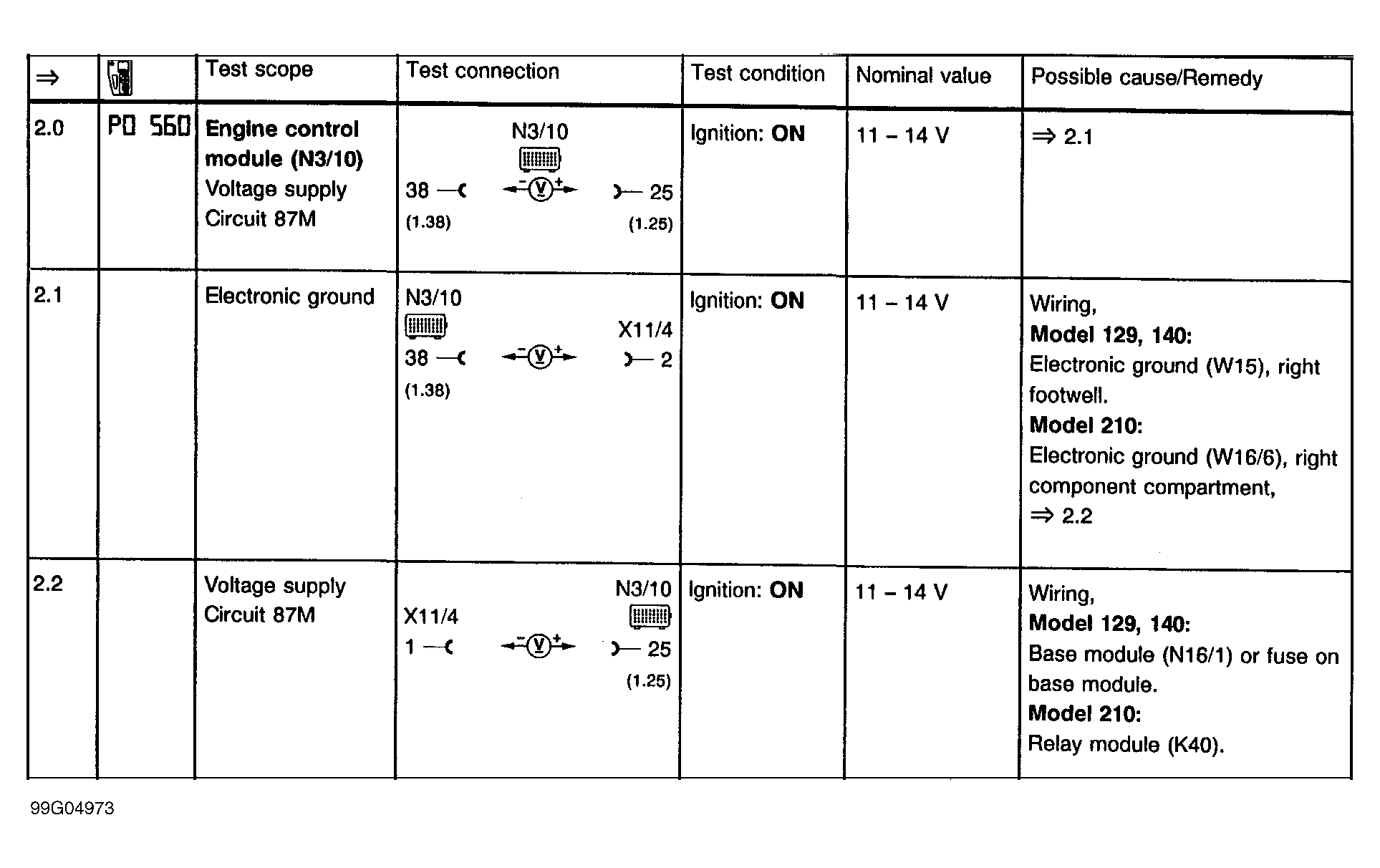

Fig 1: Electronic Accelerator Test (Steps 2.0-2.2)
G99G04973Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
