Engine Controls - Tests W/Codes - Diagnostic Module
>>
Connector Identification
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Connector Identification

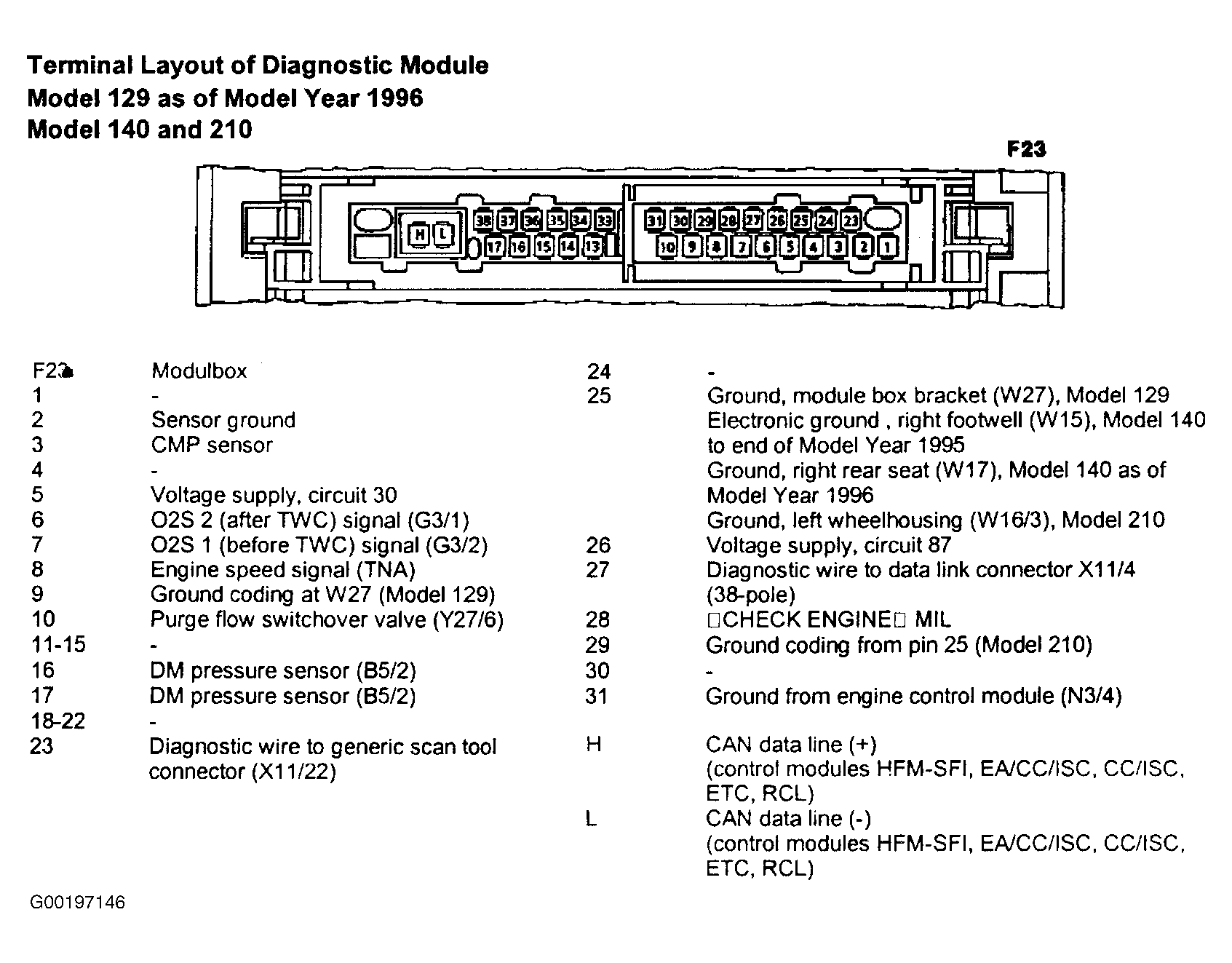

Fig 1: Diagnostic Module Connector Pin Identification
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 2: Data Link Connector Pin Identification (X11/22)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Data Link Connector Pin Identification (X/11 & X11/4s1)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
