Connecting Test Equipment (Section 33)

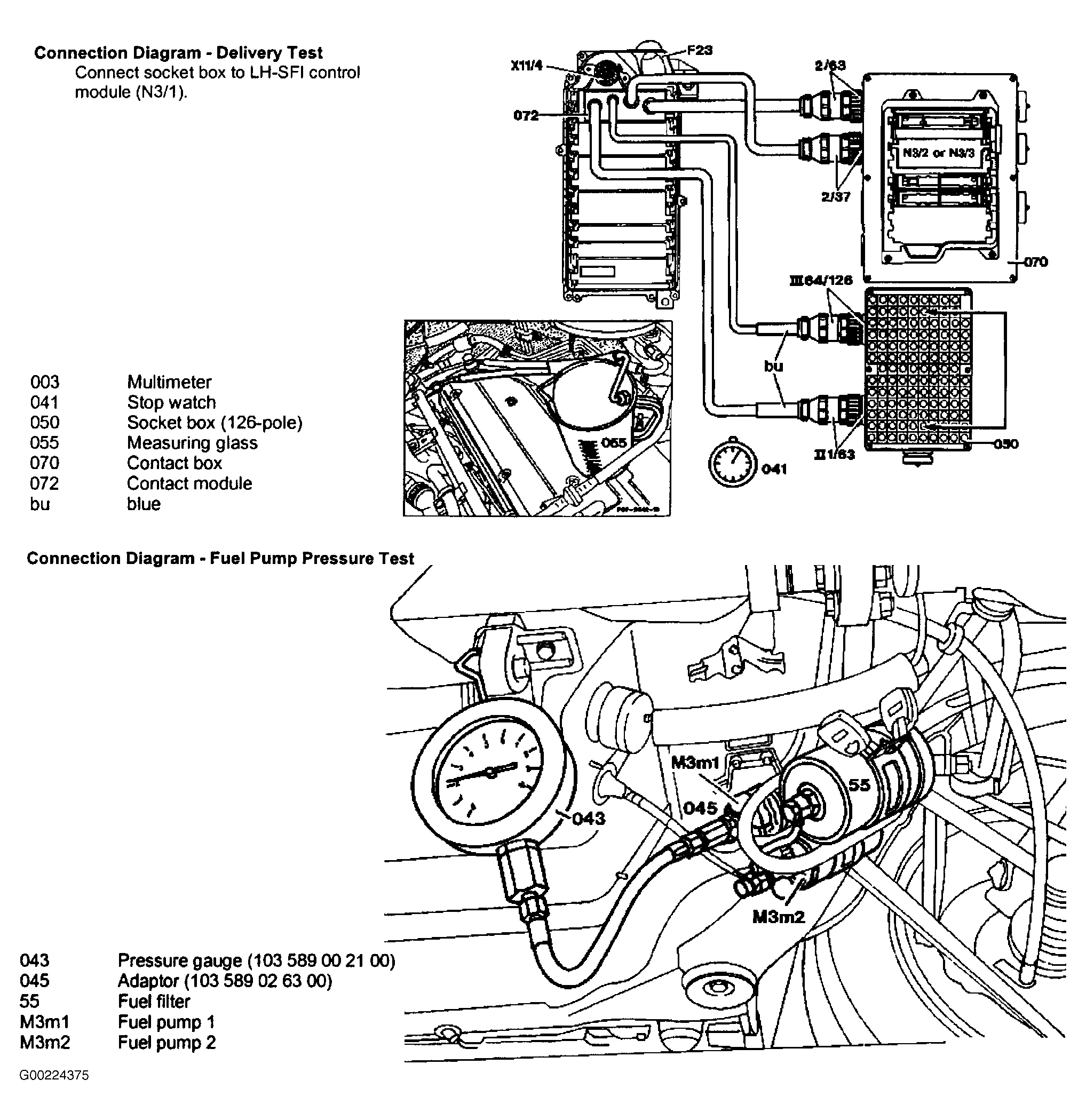

Fig 1: Connecting Test Equipment (Section 33)
G00224375Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
