Electrical System Tests Component Locations (Section 21)
ELECTRICAL SYSTEM COMPONENT LOCATIONS (SECTION 21)
| Component | See | |
|---|---|---|
| AIR Pump Switchover Valve (Y32) | Fig 1 & Fig 10 | |

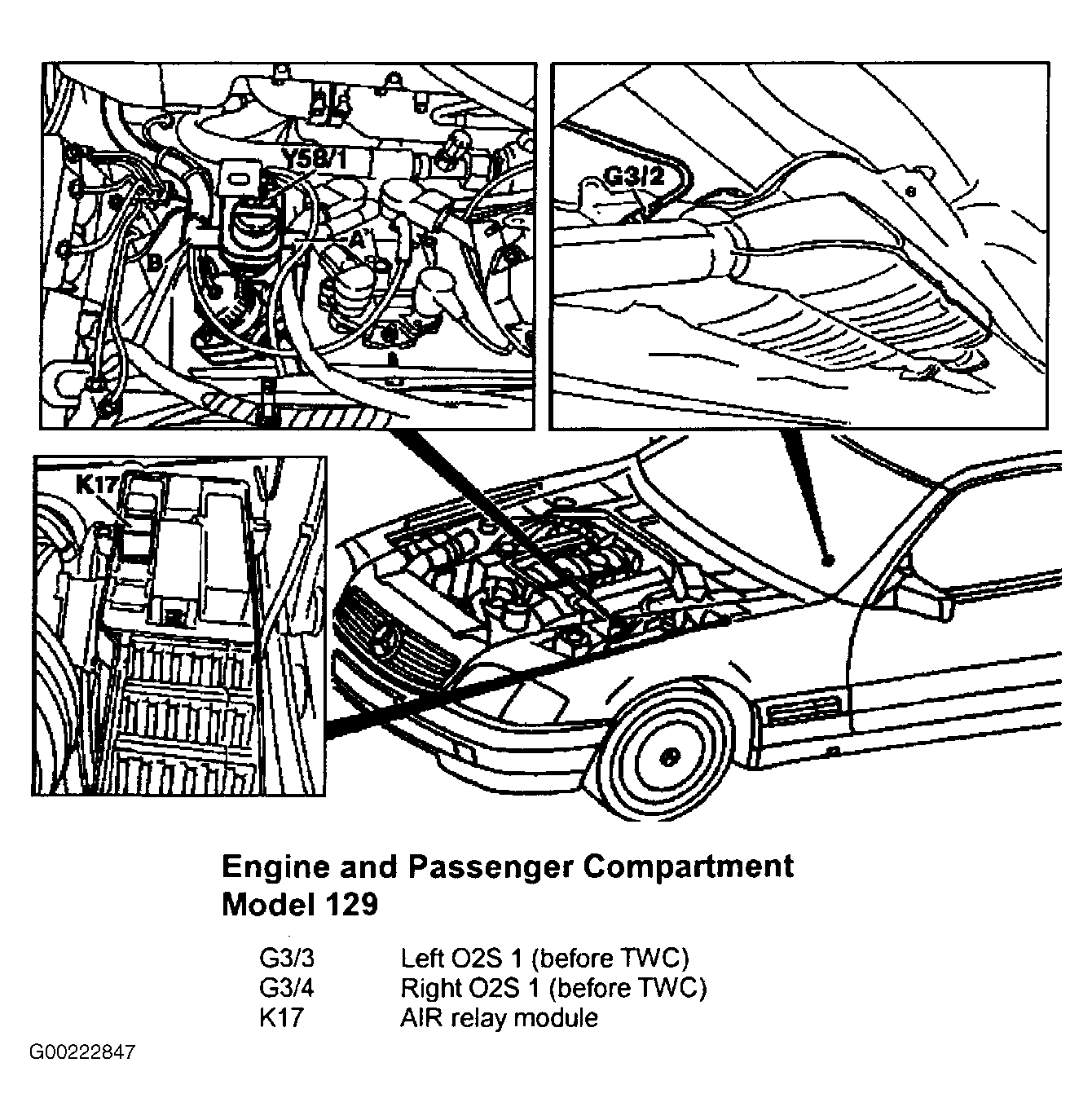

| AIR Relay Module (K17) | ||
| Model 129 | Fig 4 | |
| Model 140 | Fig 8 | |

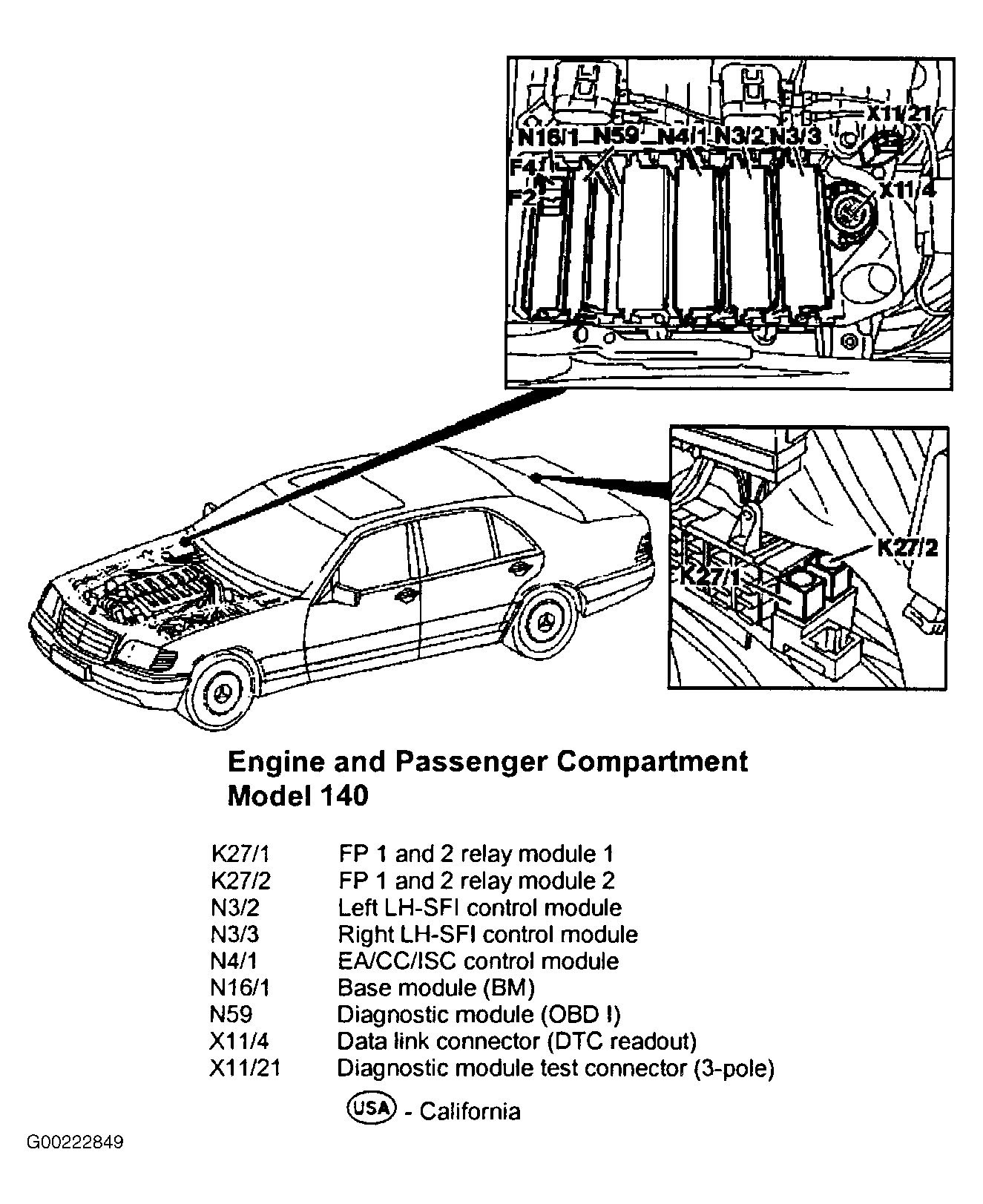

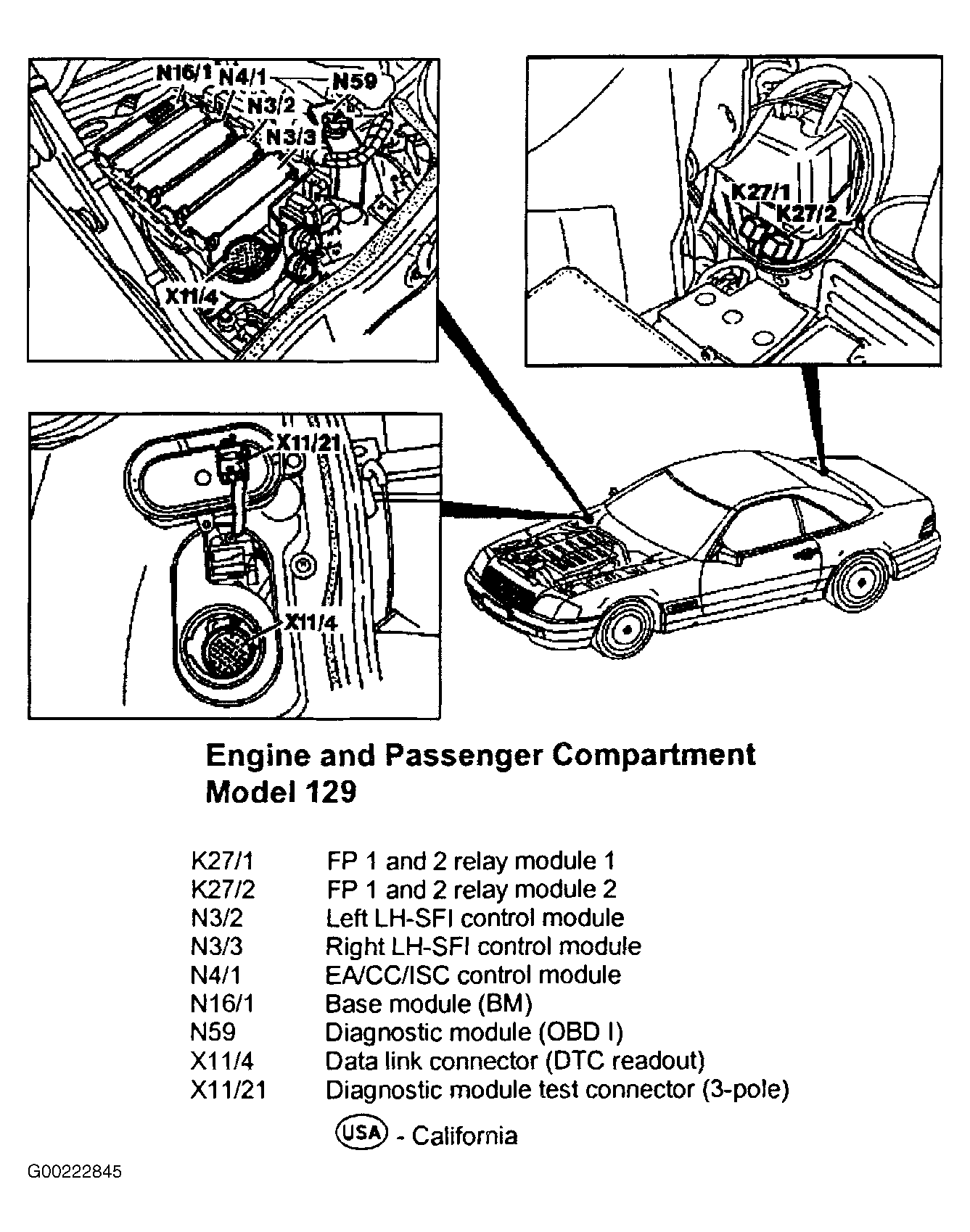

| Base Module (N16/1) BM | ||
| Model 129 | Fig 2 | |
| Model 140 | Fig 6 | |
| CHECK ENGINE MIL (A1e26) | ||
| Model 129 | Fig 5 | |
| Model 140 | Fig 9 | |
| Data Link Connector - DTC Readout (X11/4) | ||
| Model 129 | Fig 2 | |
| Model 140 | Fig 6 | |
| Diagnostic Module OBD 1 (N59) | ||
| Model 129 | Fig 2 | |
| Model 140 | Fig 6 | |
| Diagnostic Module Test Connector - 3 Pole (X11/21) | ||
| Model 129 | Fig 2 | |
| Model 140 | Fig 6 | |
| EA/CC/ISC Control Module | ||
| Model 129 | Fig 2 | |
| Model 140 | Fig 6 | |
| FP 1 & 2 Relay Module 1 | ||
| Model 129 | Fig 2 | |
| Model 140 | Fig 6 | |
| FP 1 & 2 Relay Module 2 | ||
| Model 129 | Fig 2 | |
| Model 140 | Fig 6 | |
| Left Adjustable Camshaft Timing Solenoid (Y49/1) 1 |
||

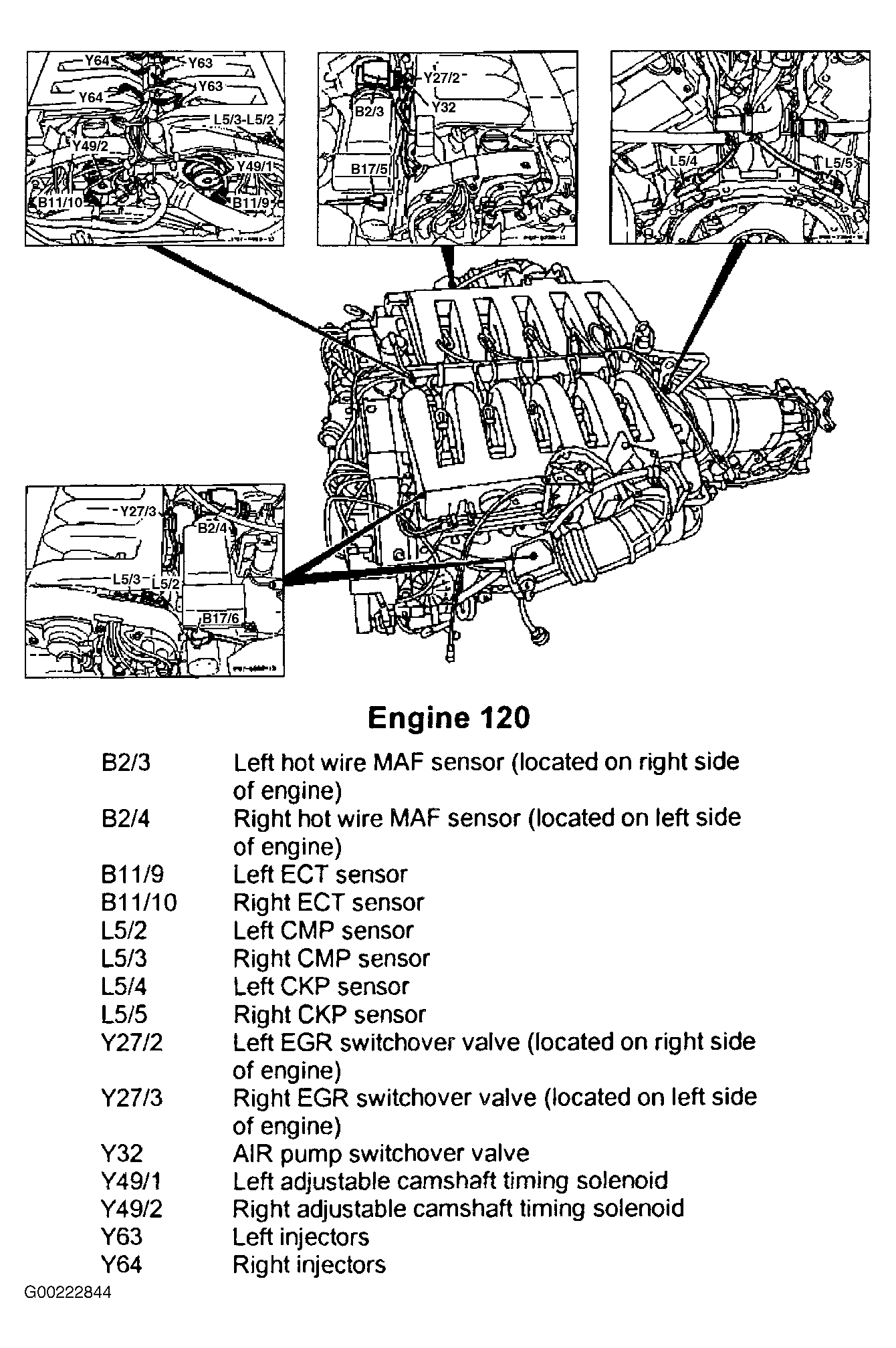

| Left CKP Sensor (L5/4) | Fig 1 | |
| Left CMP Sensor (L5/2) | Fig 1 | |
| Left ECT Sensor (B11/9) | Fig 1 | |
| Left EGR Switchover Valve (Y27/2) - located on right side of engine. | Fig 1 &Fig 10 | |
| Left Hot Wire MAF Sensor (B2/3) - located on right side of engine. | Fig 1 | |
| Left IAT Sensor (B17/5) - located on right side of engine. | ||
| Model 129 | Fig 3 | |
| Model 140 | Fig 7 | |
| Left Injectors (Y63) | Fig 1 | |
| Left LH-SFI Control Module (N3/2) | ||
| Model 129 | Fig 2 | |
| Model 140 | Fig 6 | |
| Left O2S 1 (G3/3) - Before TWC | ||
| Model 129 | Fig 4 | |
| Model 140 | Fig 8 | |
| Left Purge Control Valve (Y58/2) - located on right side of engine. | ||
| Model 129 | Fig 3 | |
| Model 140 | Fig 7 | |
| Purge Line To Charcoal Canister (B) | ||
| Model 129 | Fig 3 | |
| Model 140 | Fig 7 | |
| Purge Line To Engine (A) | ||
| Model 129 | Fig 3 | |
| Model 140 | - | |
| Right Adjustable Camshaft Timing Solenoid (Y49/2) | Fig 1 | |
| Right CKP Sensor (L5/5) | Fig 1 | |
| Right CMP Sensor (L5/3) | Fig 1 | |
| Right ECT Sensor (B11/10) | Fig 1 | |
| Right EGR Switchover Valve (Y27/3) - located on left side of engine. | Fig 1 & Fig 10 | |
| Right Hot Wire MAF Sensor (B2/4) - located on left side of engine. | Fig 1 | |
| Right IAT Sensor (B17/6) - located on left side of engine. | ||
| Model 129 | Fig 3 | |
| Model 140 | Fig 7 | |
| Right Injectors (Y64) | Fig 1 | |
| Right LH-SFI Control Module (N3/3) | ||
| Model 129 | Fig 2 | |
| Model 140 | Fig 6 | |
| Right O2S 1 (G3/4) - Before TWC | ||
| Model 129 | Fig 4 | |
| Model 140 | Fig 8 | |
| Right Purge Control Valve (Y58/3) - located on left side of engine. | ||
| Model 129 | Fig 3 | |
| Model 140 | Fig 7 | |
| Upshift Delay Switchover Valve (Y3/3) | ||
| Model 129 | Fig 3 | |
| Model 140 | Fig 8 | |
