Symptom Index

Use symptom index charts to determine which system tests to perform. See Fig 1 and Fig 2 .

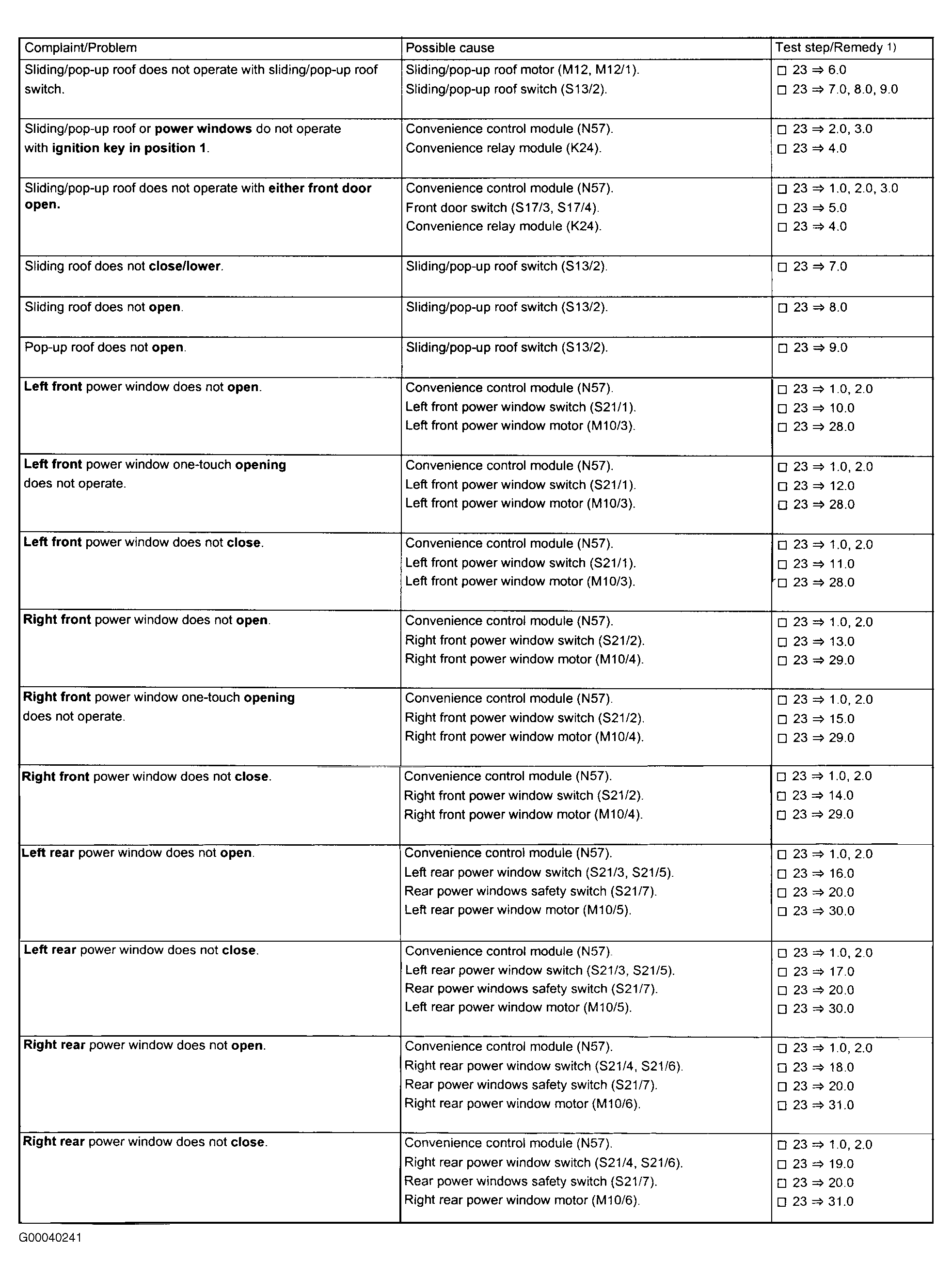

Fig 1: Symptom Index Chart (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

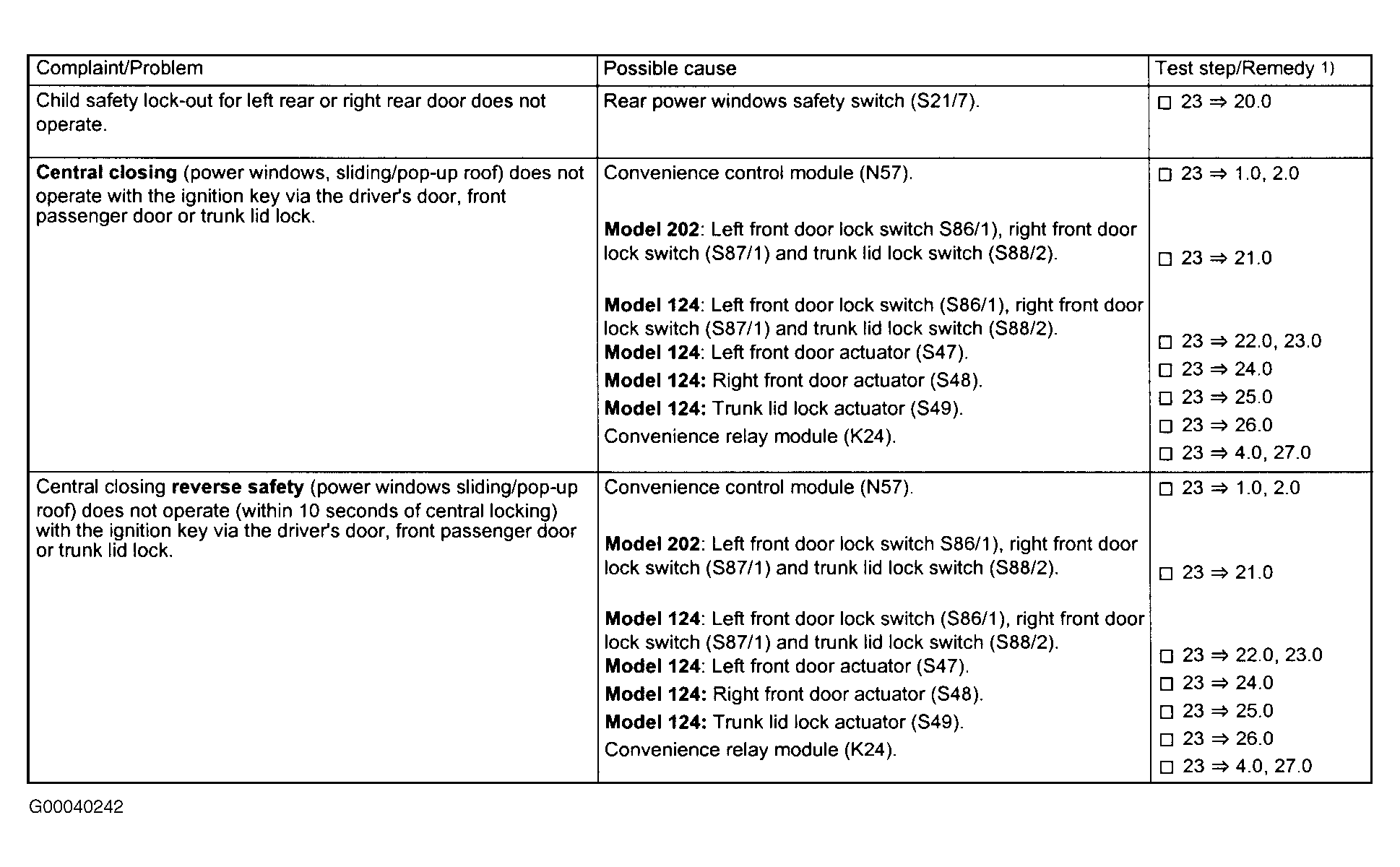

Fig 2: Symptom Index Chart (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
