Ignition System Tests 9.0-11.0

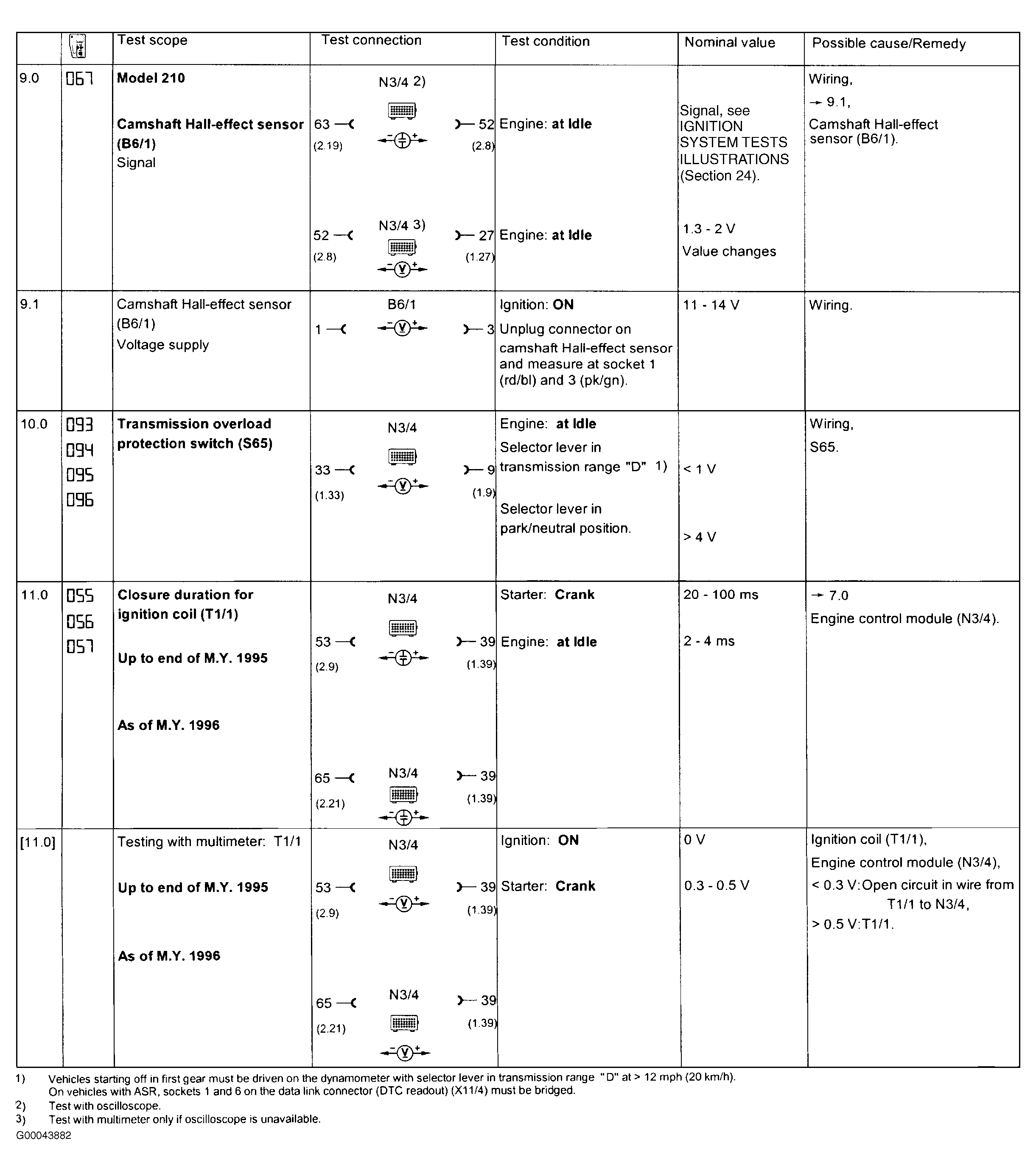

Fig 1: Ignition System Tests (Steps 9.0-11.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
