Component Locations: Notes

NOTE: For component locations, refer to illustrations. See Figure -Fig 2

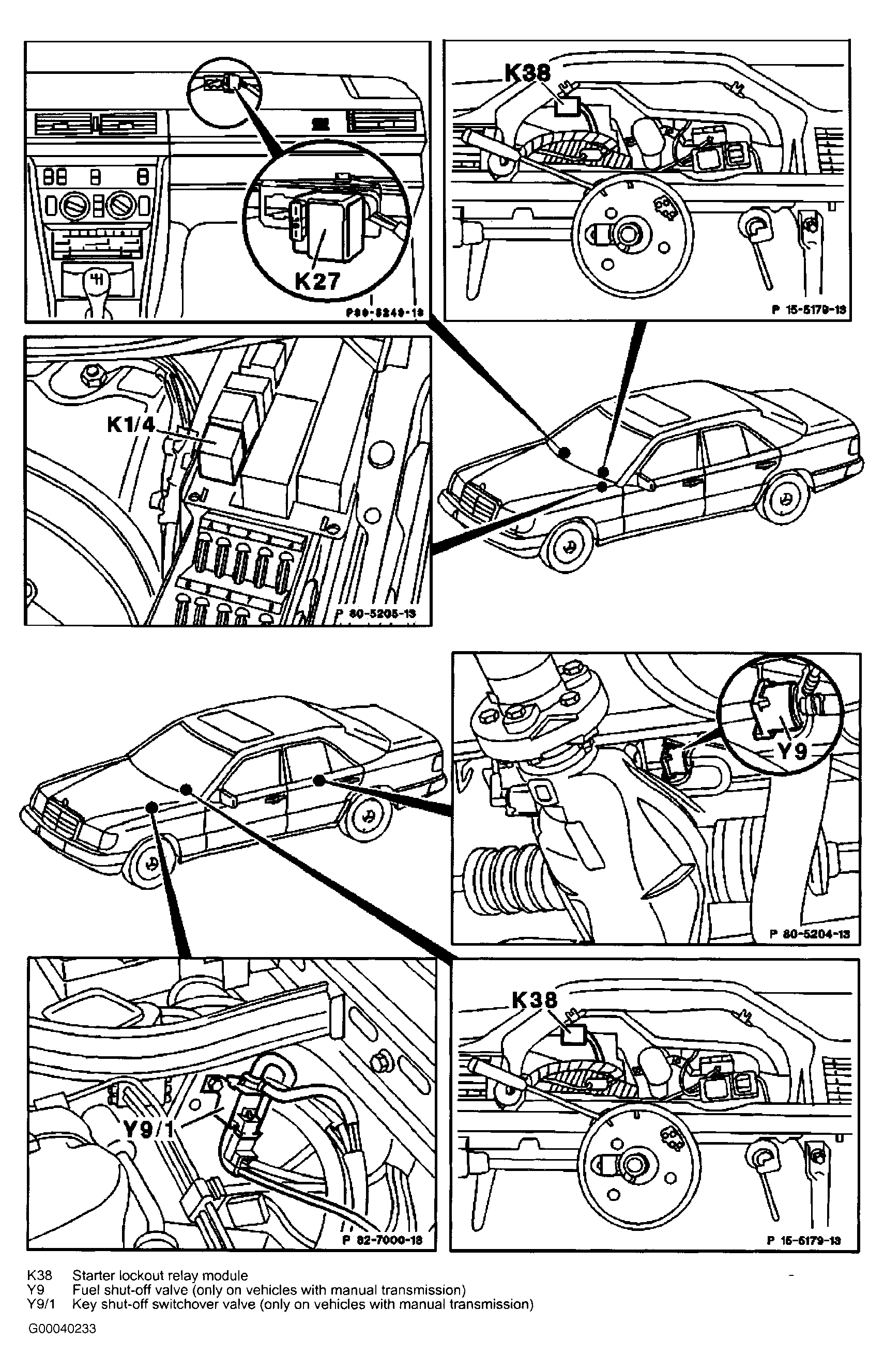

Fig 1: Component Locations (German (D) Vehicles As Of 3/94 & System Code 885)
G00040233Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

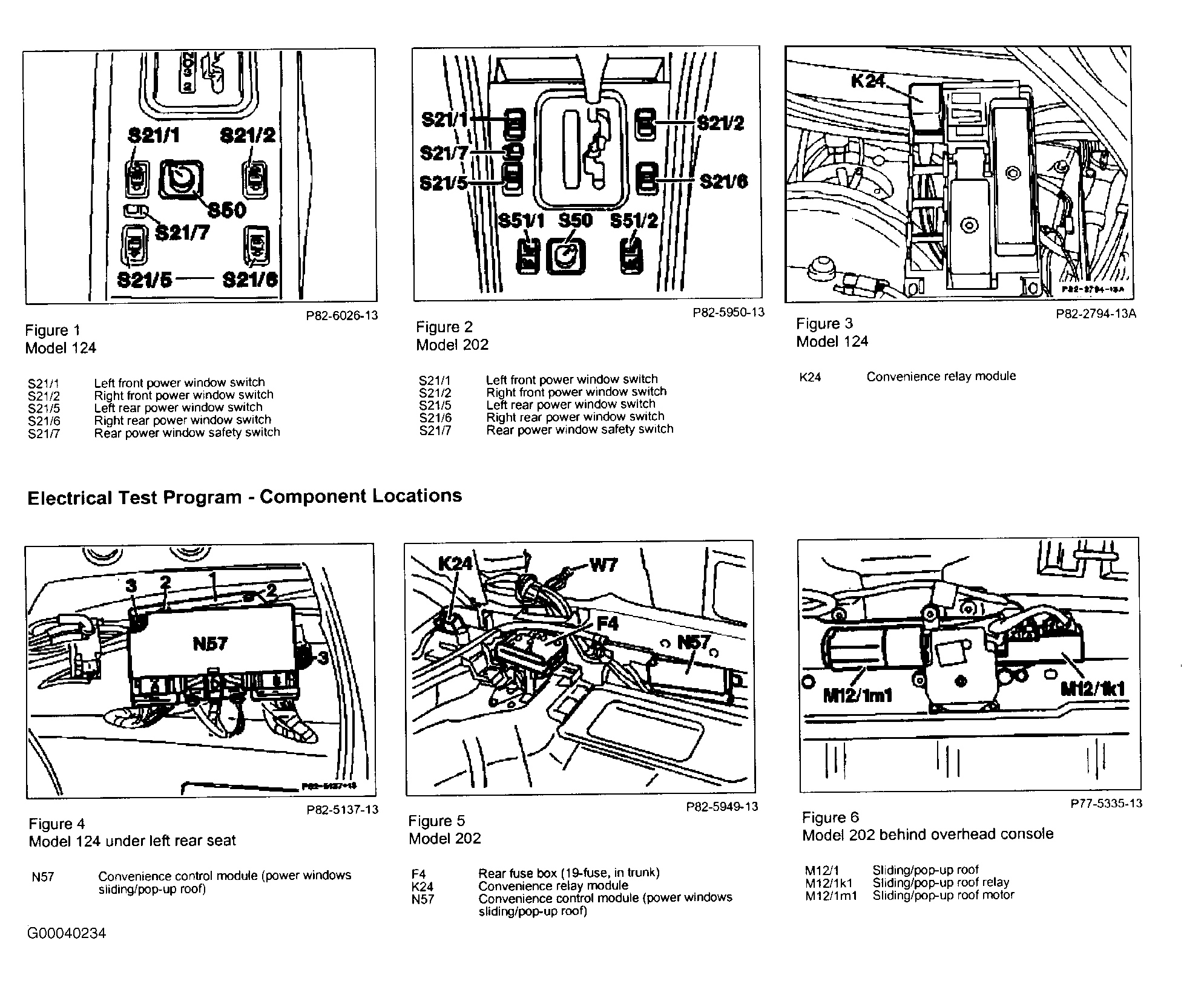

Fig 2: Component Locations - Models 124 & 202
G00040234Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
