Ignition System Tests 12.0-13.0

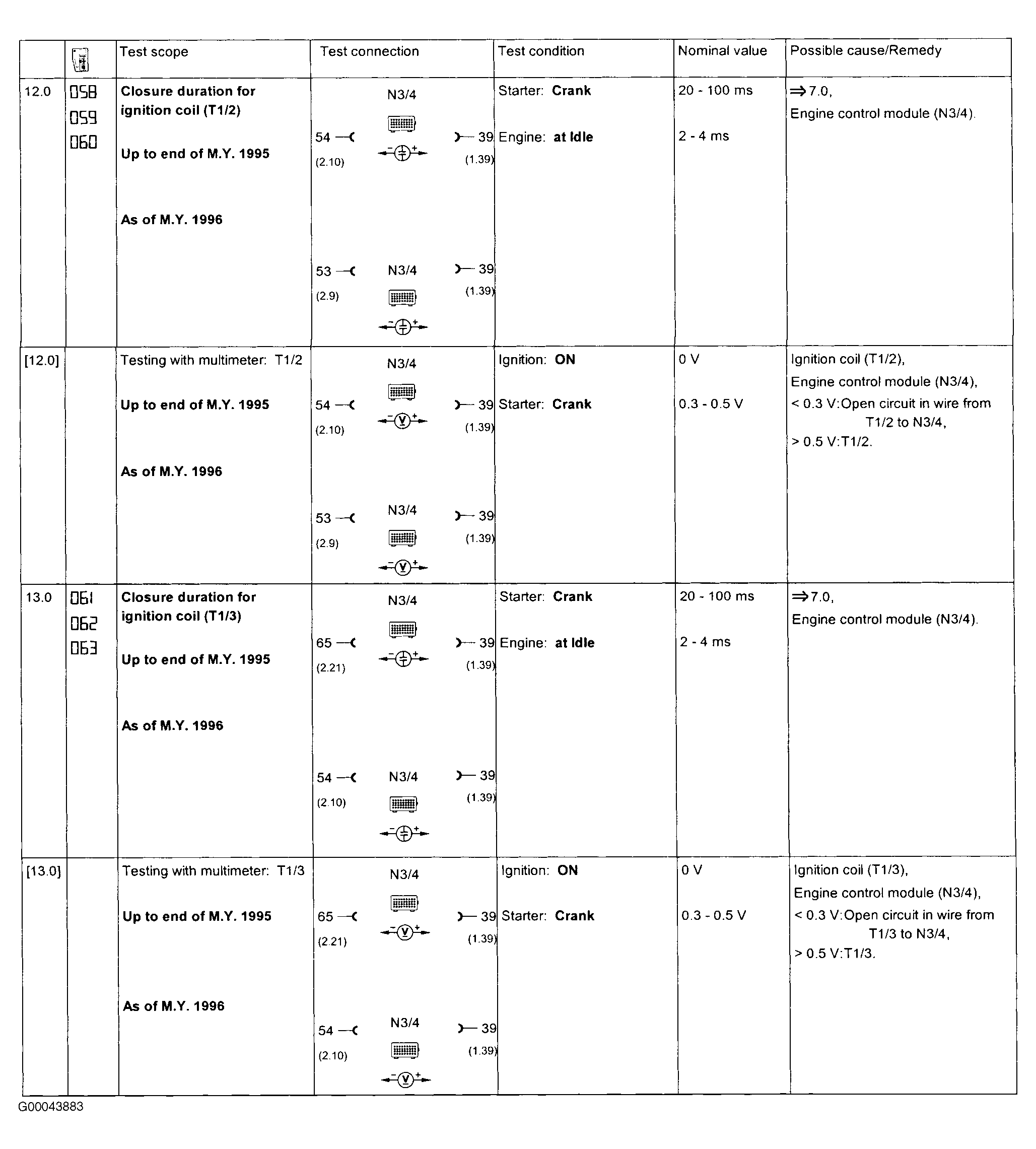

Fig 1: Ignition System Tests (Steps 12.0-13.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
