Electronic Acceleration System Tests 8.0

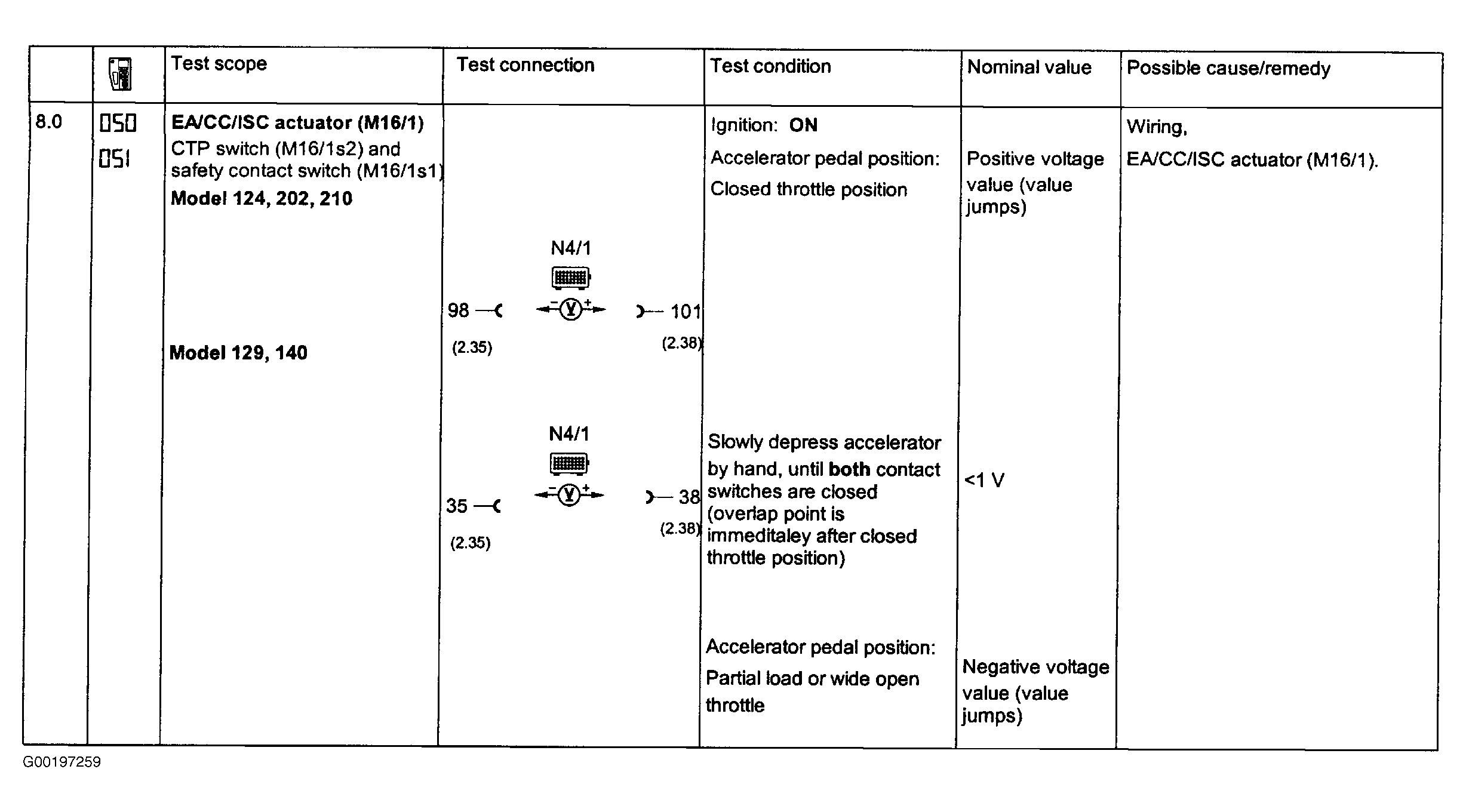

Fig 1: Electronic Acceleration System Tests (Step 8.0)
G00197259Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
