Preparation For Test - Section 22

1. Model 202 up to 11/94: Check fuses F3-33 and F3-35 OK,
2. Model 202 as of 12/94: Check fuses F1-24 and F1-27 OK,
3. Battery voltage 11 - 14 V.
4. Provide access to PSE control module (A37/4, A37/5).
5. Connect socket box with test cable according to connection diagram.

Special Tools:

Conventional Tools, Test Equipment:
Description Brand, model, etc.
Multimeter 1) Fluke models 23, 83, 85, 87

1) Available through the MBNA Standard Equipment Program.

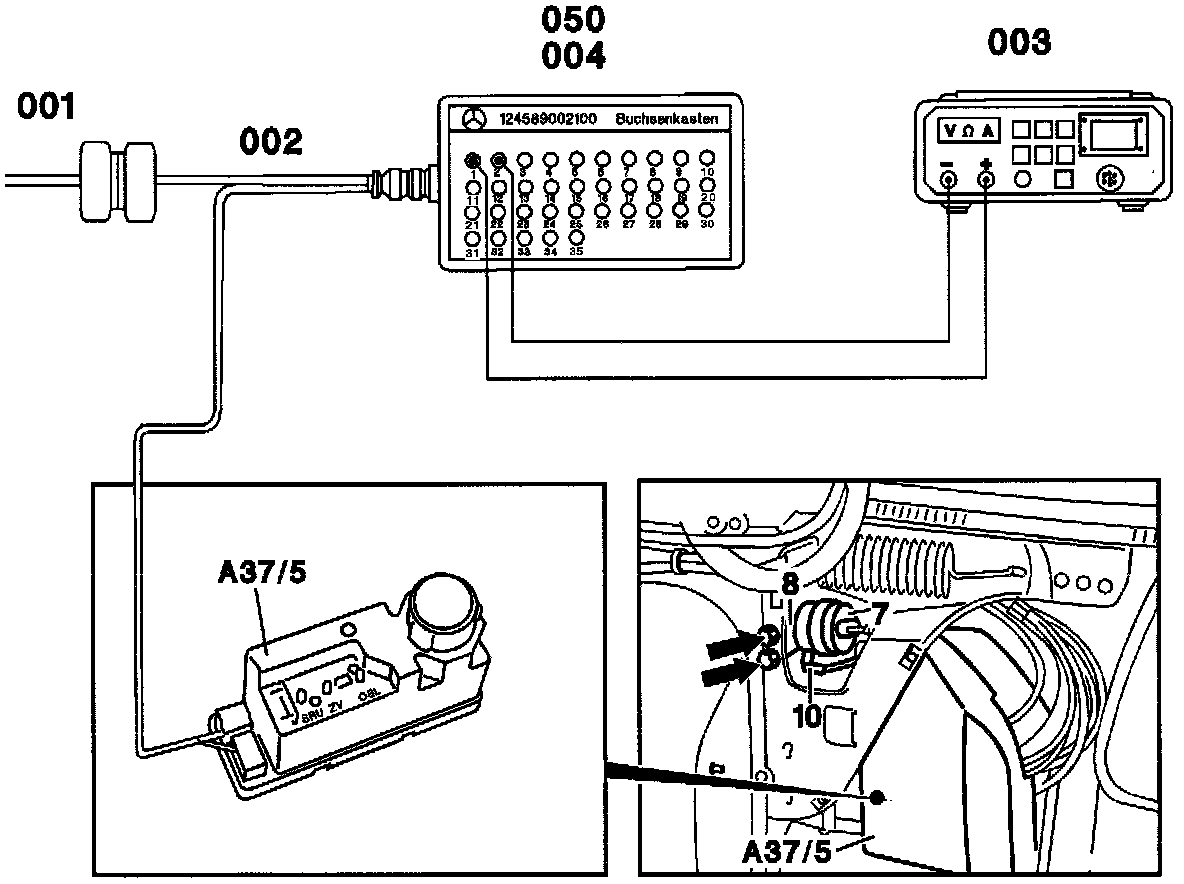

Connection Diagram - Socket Box

Figure 1:

001 PSE control module connector
002 Test cable
003 Multimeter
004/050 Socket box (35-pole)
A37/5 PSE control module (CL, OSB, MVA)
