Knock Sensor: Service and Repair

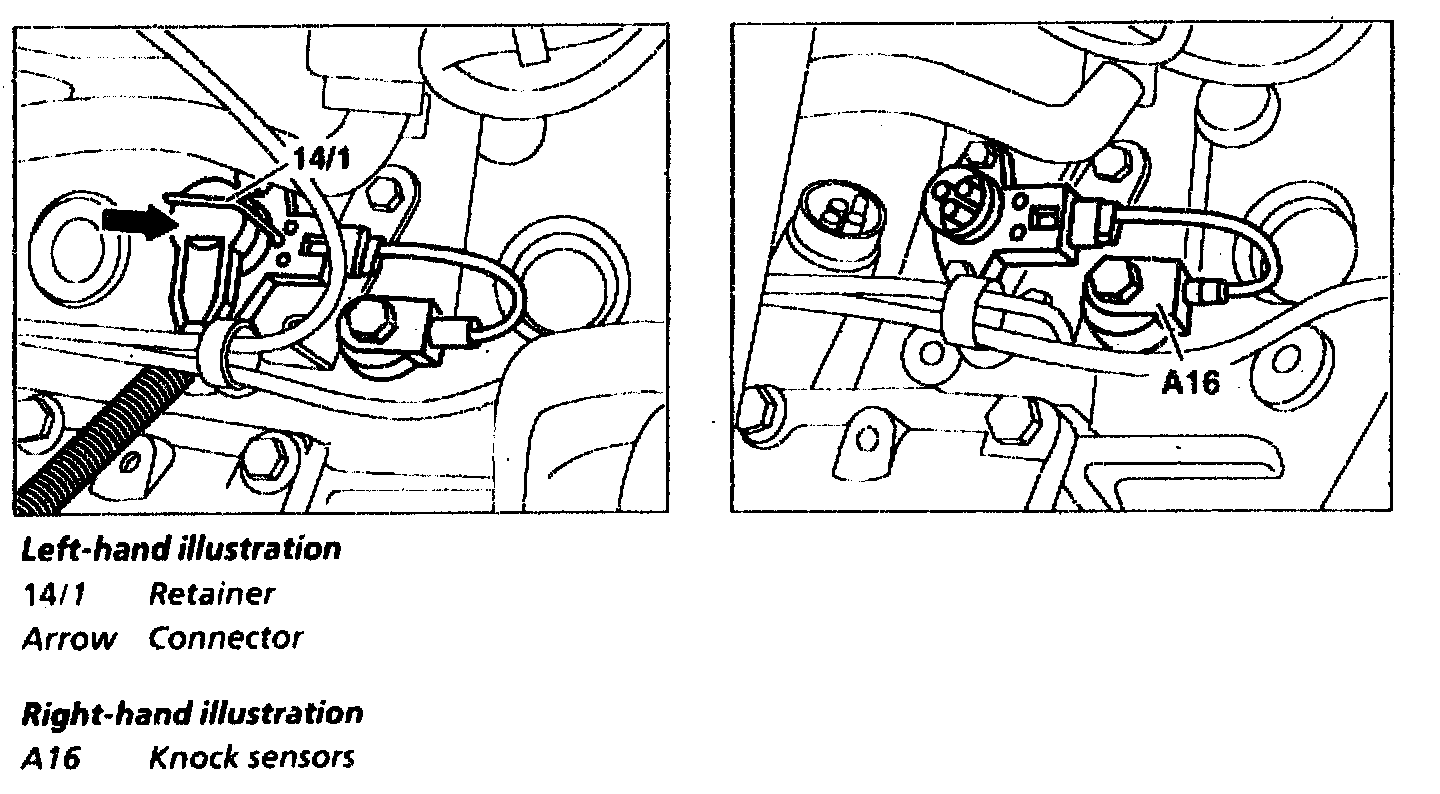

Component Identification, Engine 104

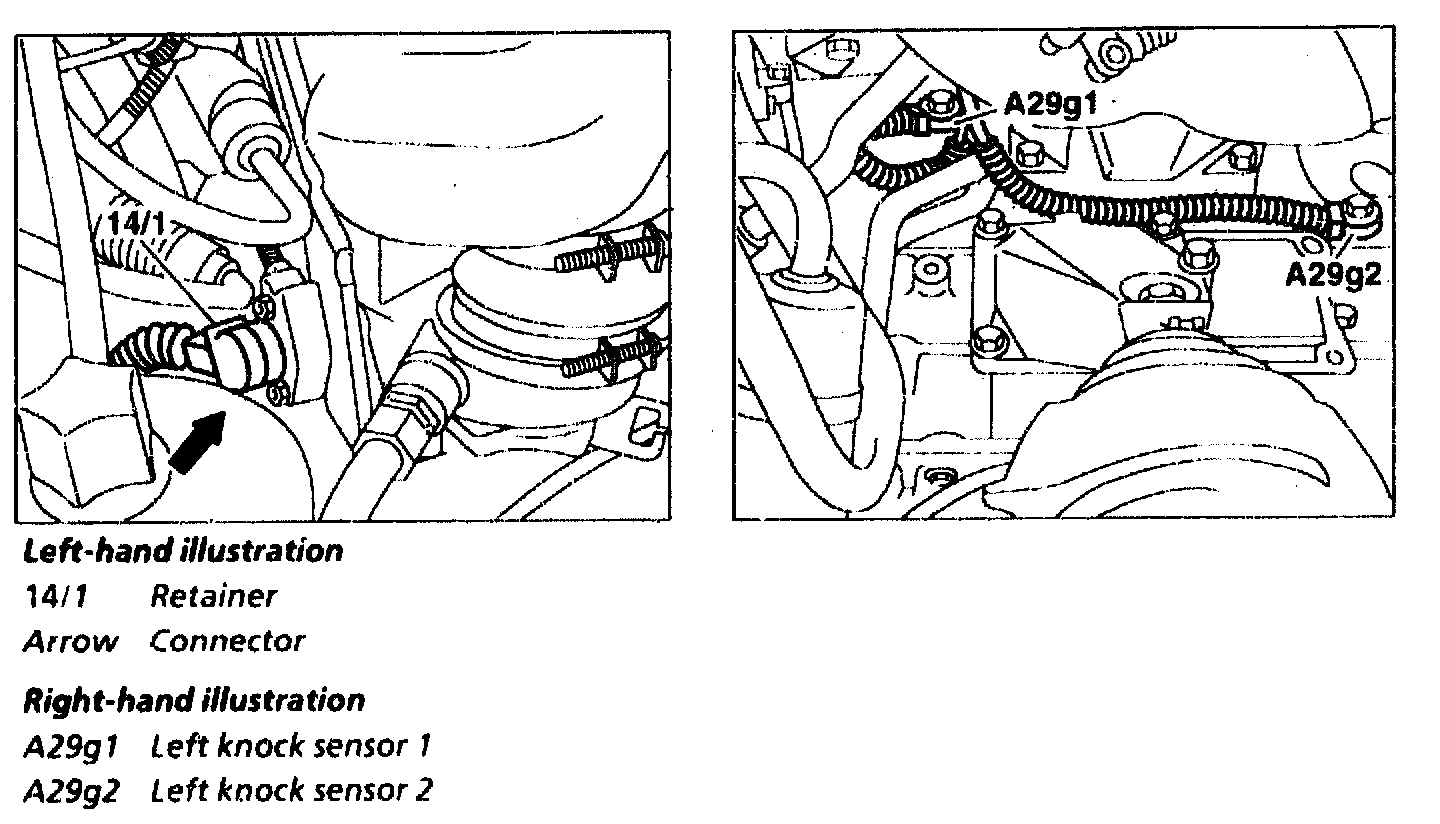

Component Identification, Engine 111

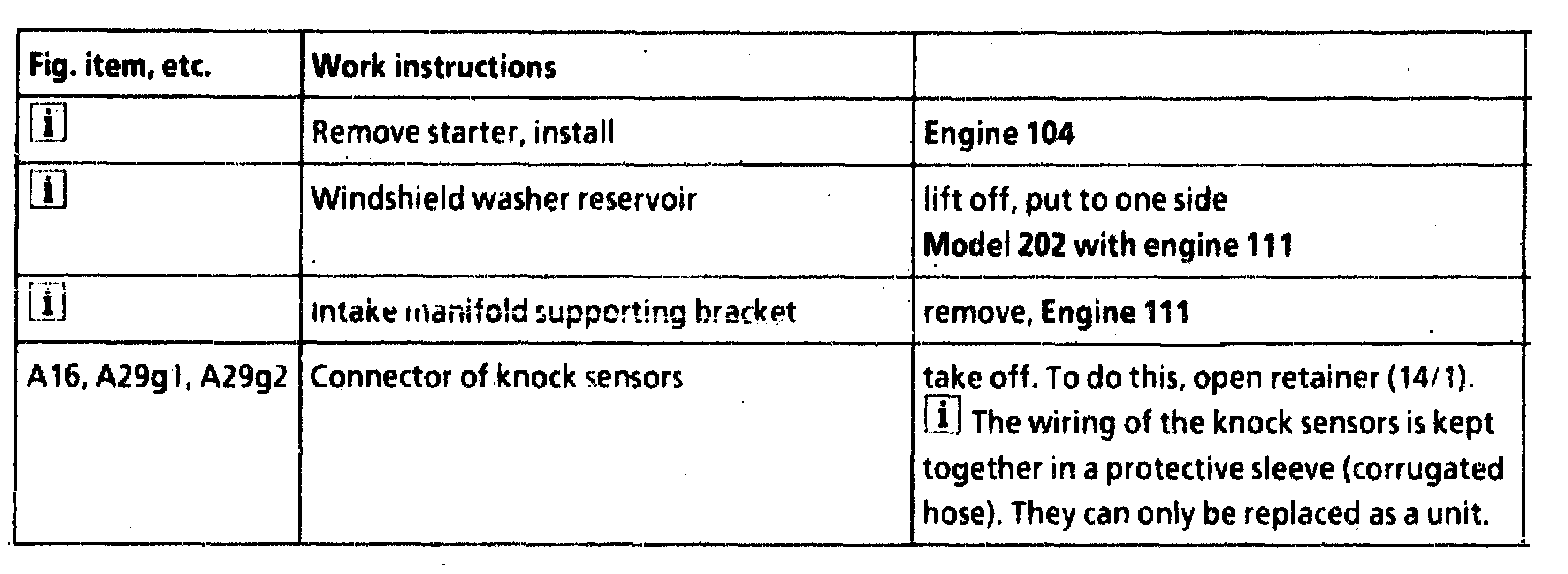

Work instructions
