EA/CC/ISC - with ASR

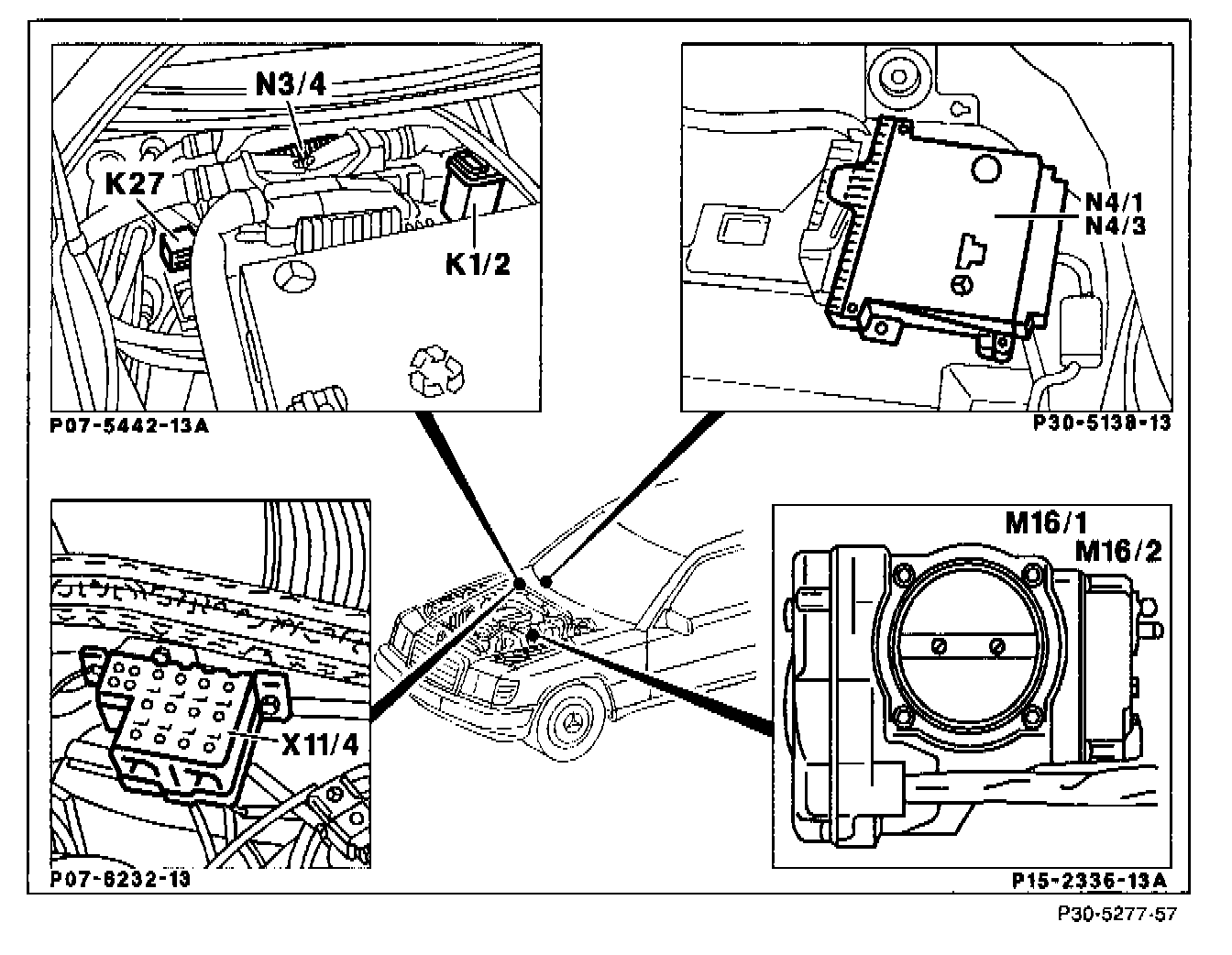

K1/2 Overvoltage protection relay module (9-pole)
M16/1 EA/CC/ISC actuator
N3/4 Engine control module (HFM-SFI)
N4/1 EA/CC/ISC control module
X11/4 Data link connector (DTC readout)

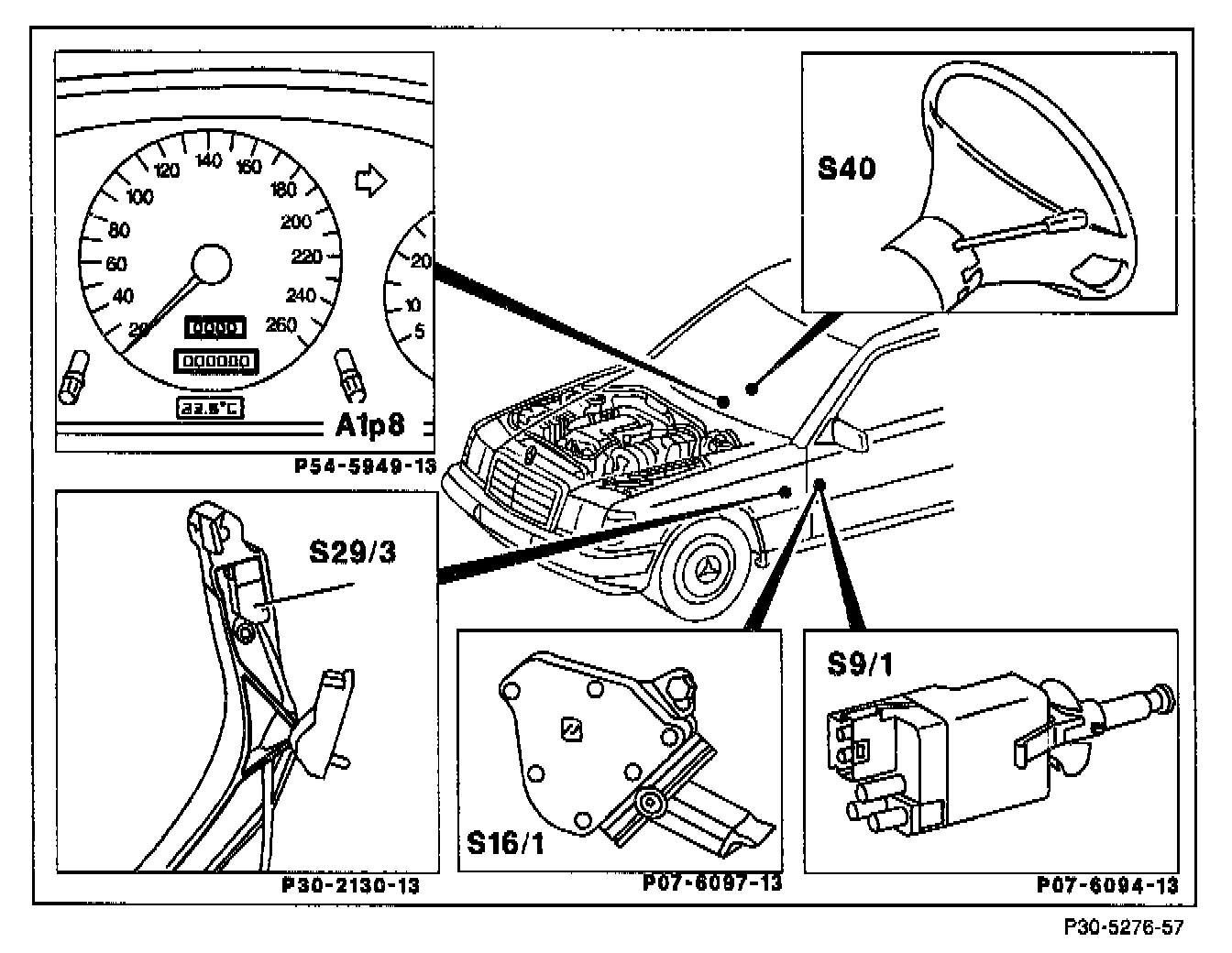

A1p8 Electronic speedometer
S9/1 Stop lamp switch (ASR) (4-pole)
S16/1 Starler lock-out/backup lamp switch
S29/3 CTP switch
S40 CC switch
V Decelerate/set
B Accelerate/set
SP Resume
A Off
