Removal and Replacement

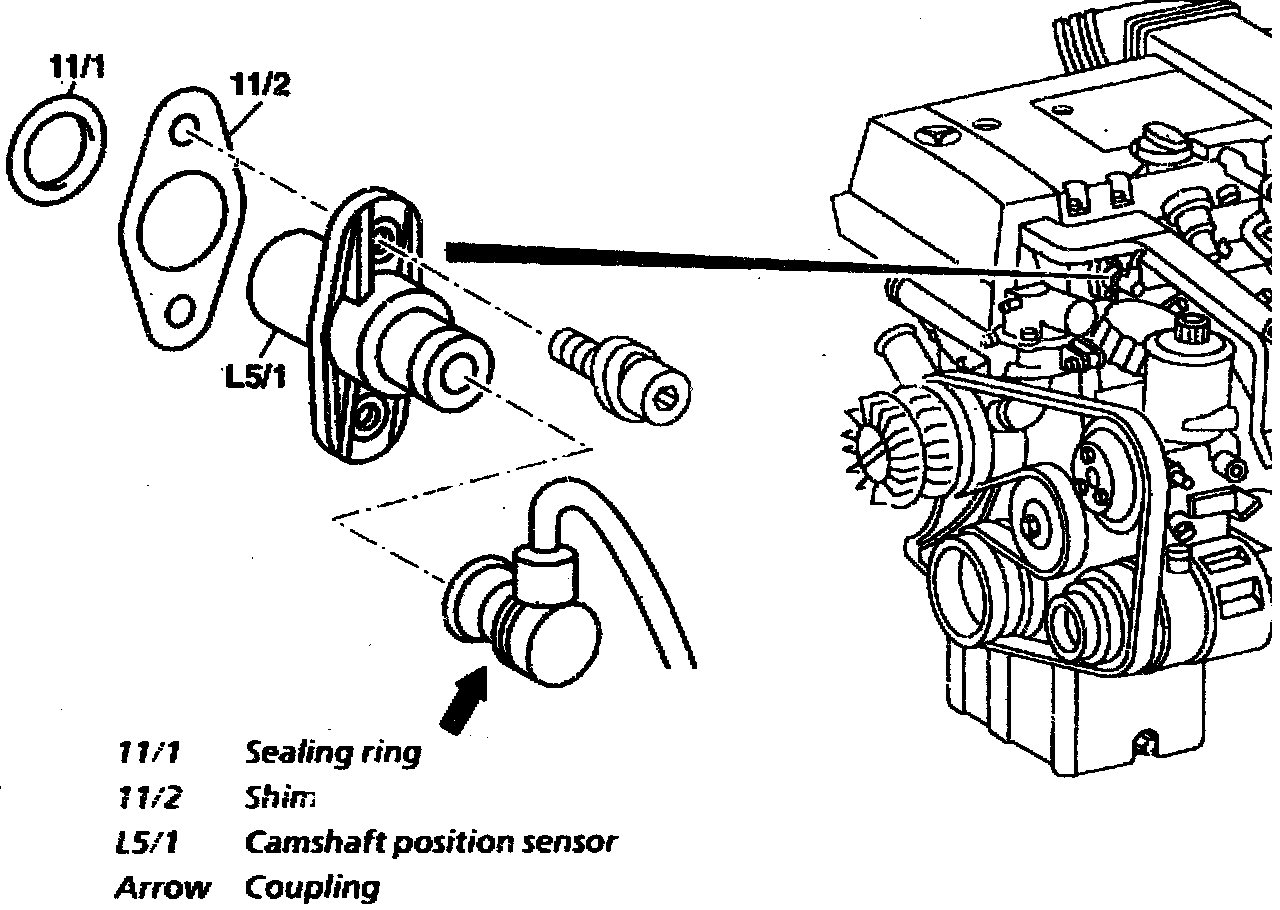

Shown on engine 111.92
Setting with feeler gage

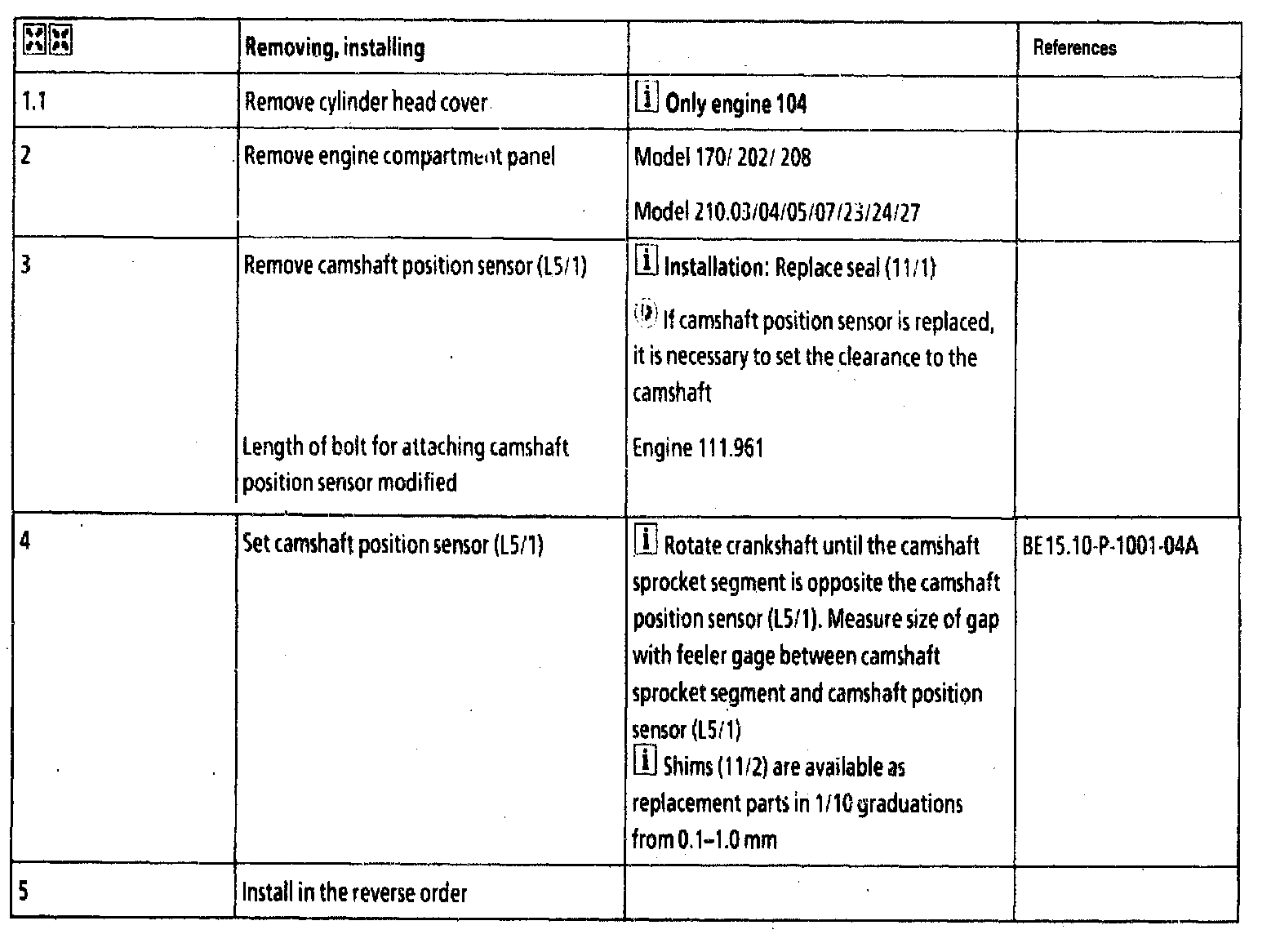

Removing, installing
References (BE), Test data position sensor
