Compressor HVAC: Service and Repair

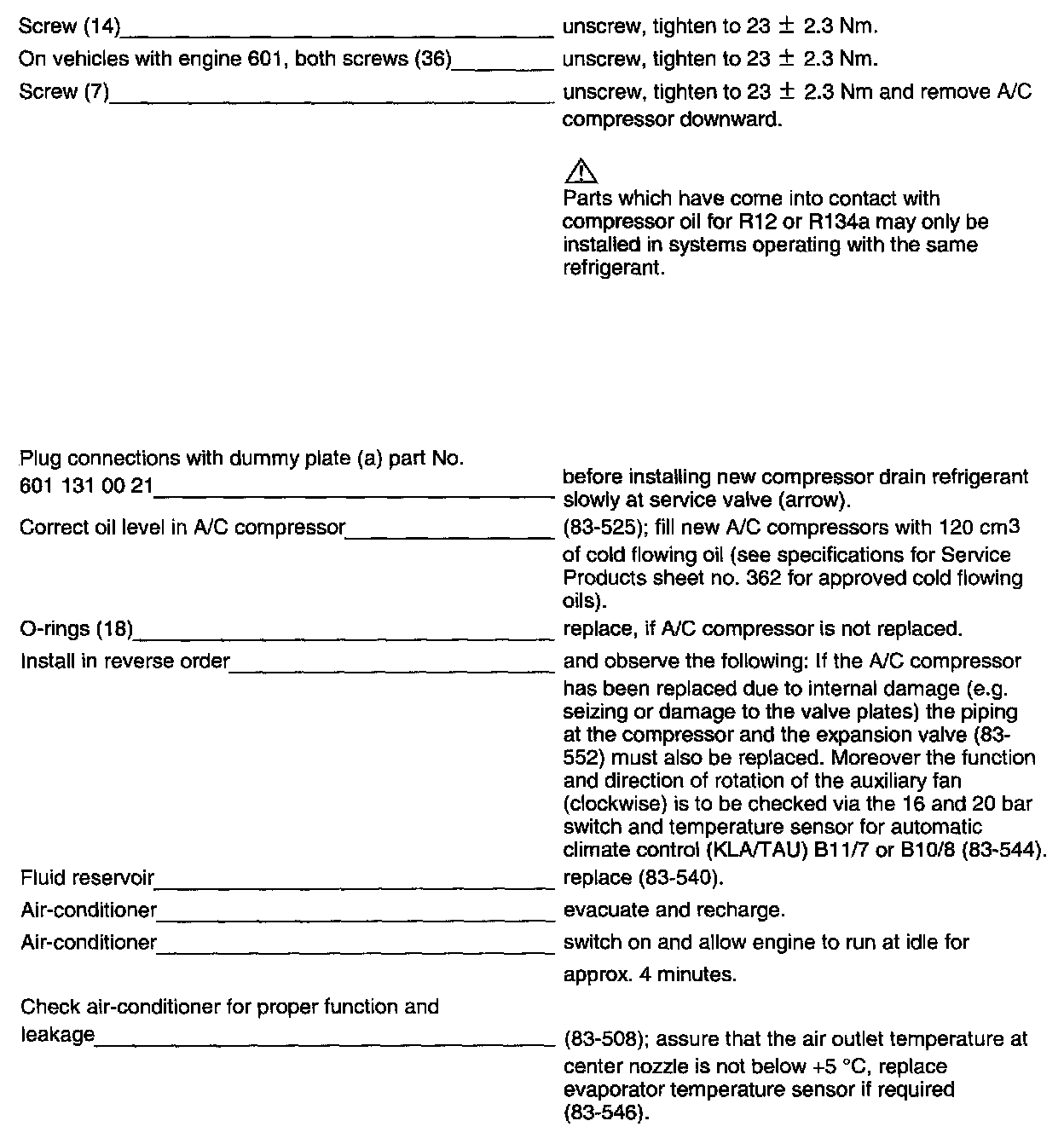

Removal and installation of A/C compressor

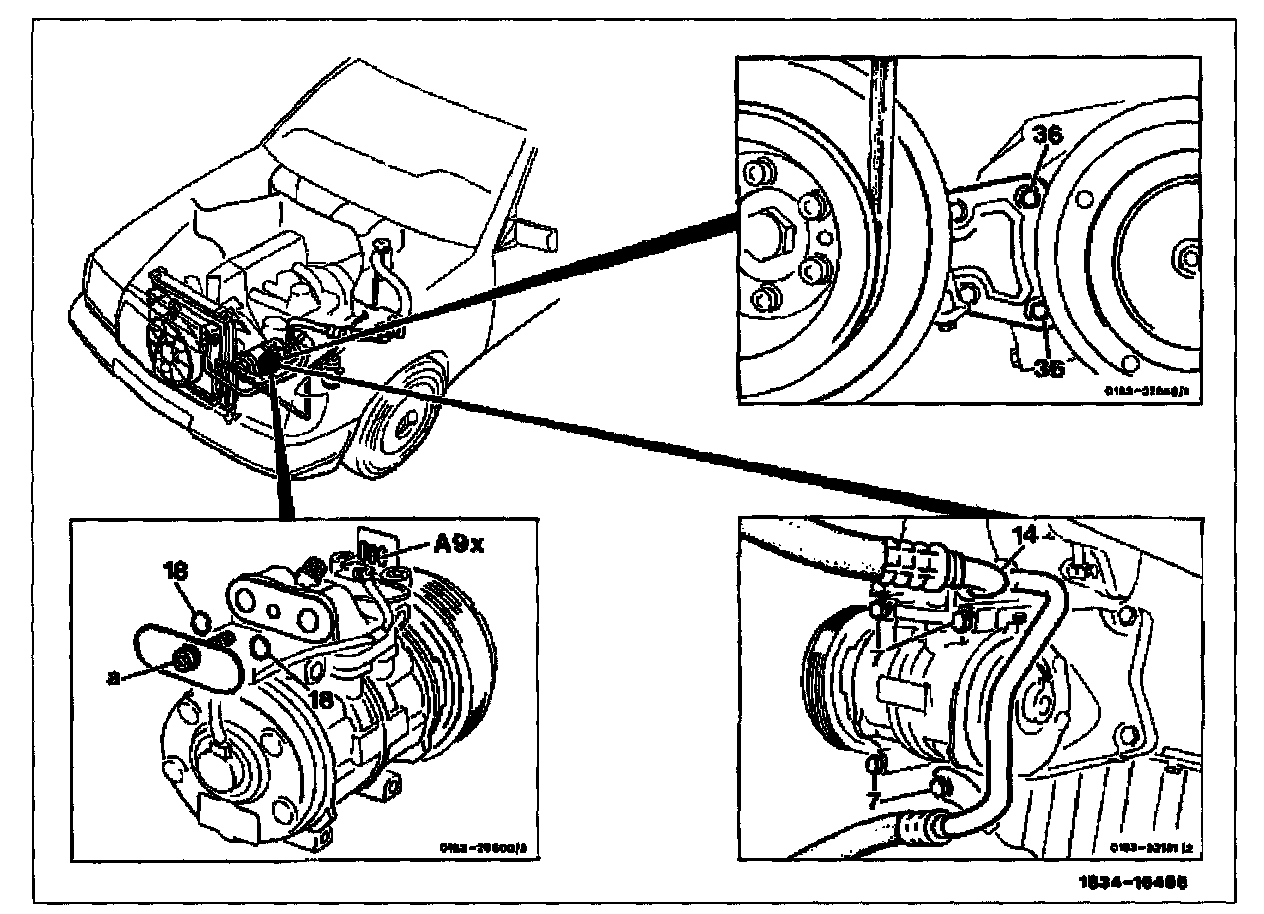

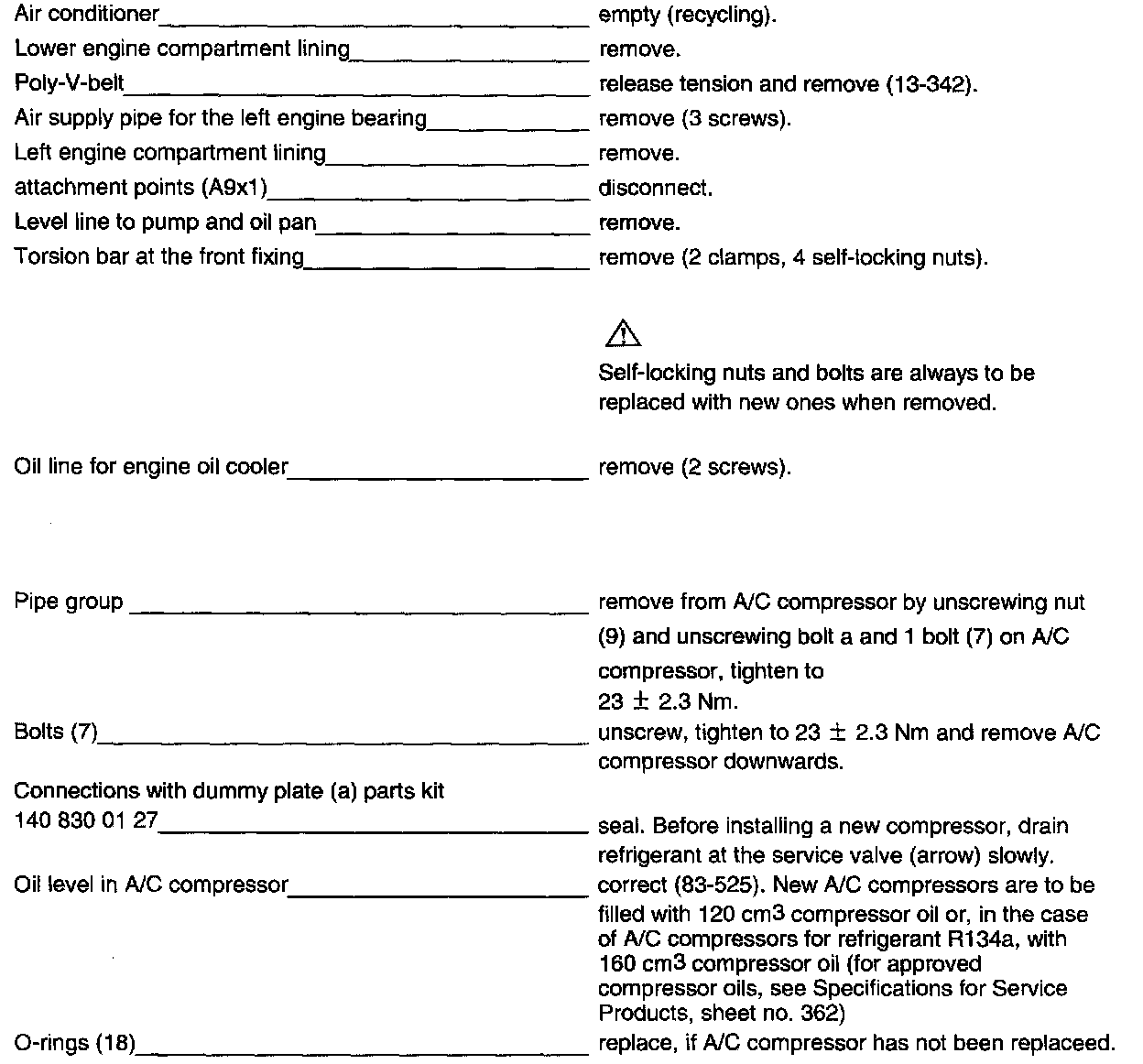

A. Engine 102

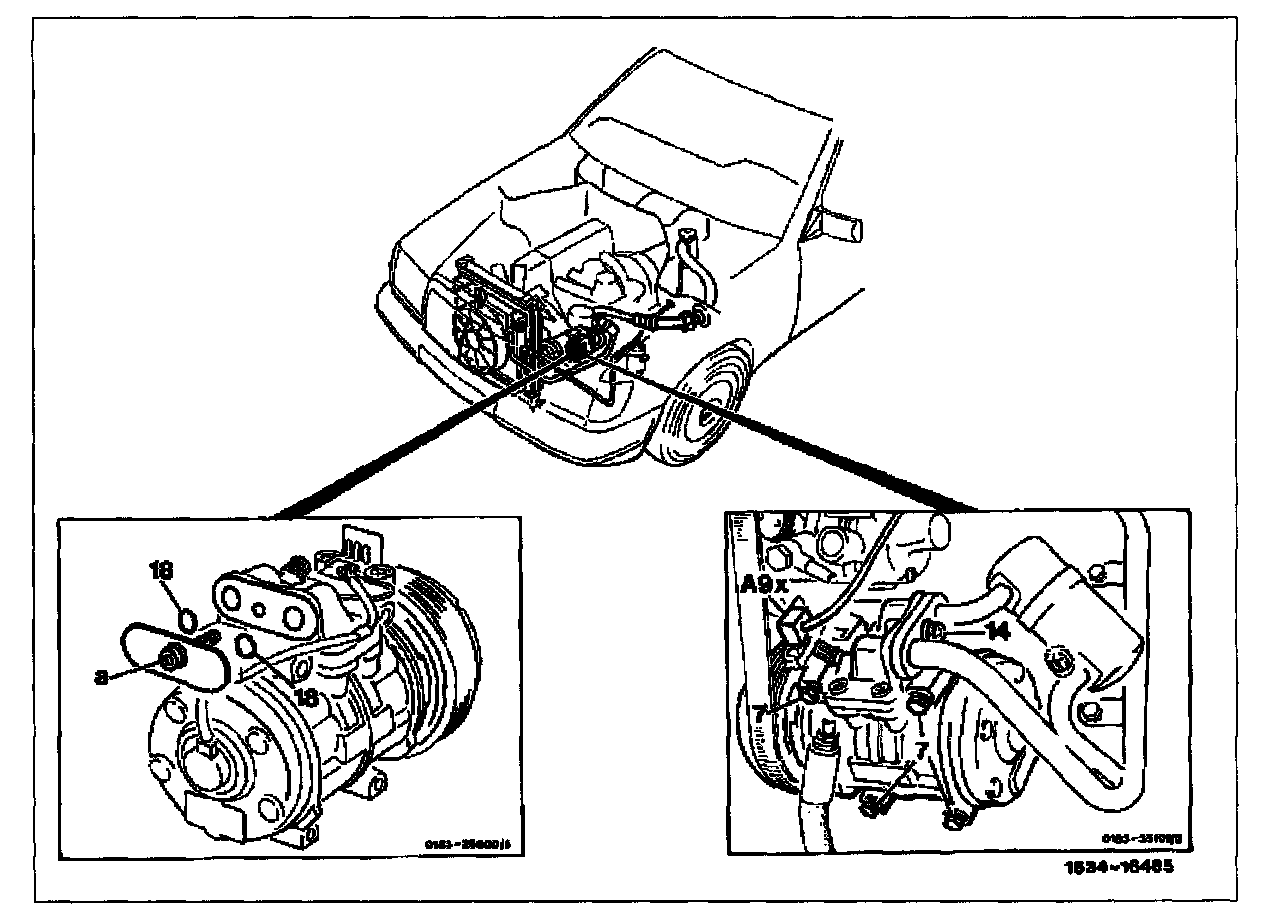

B. Engines 103 and 104

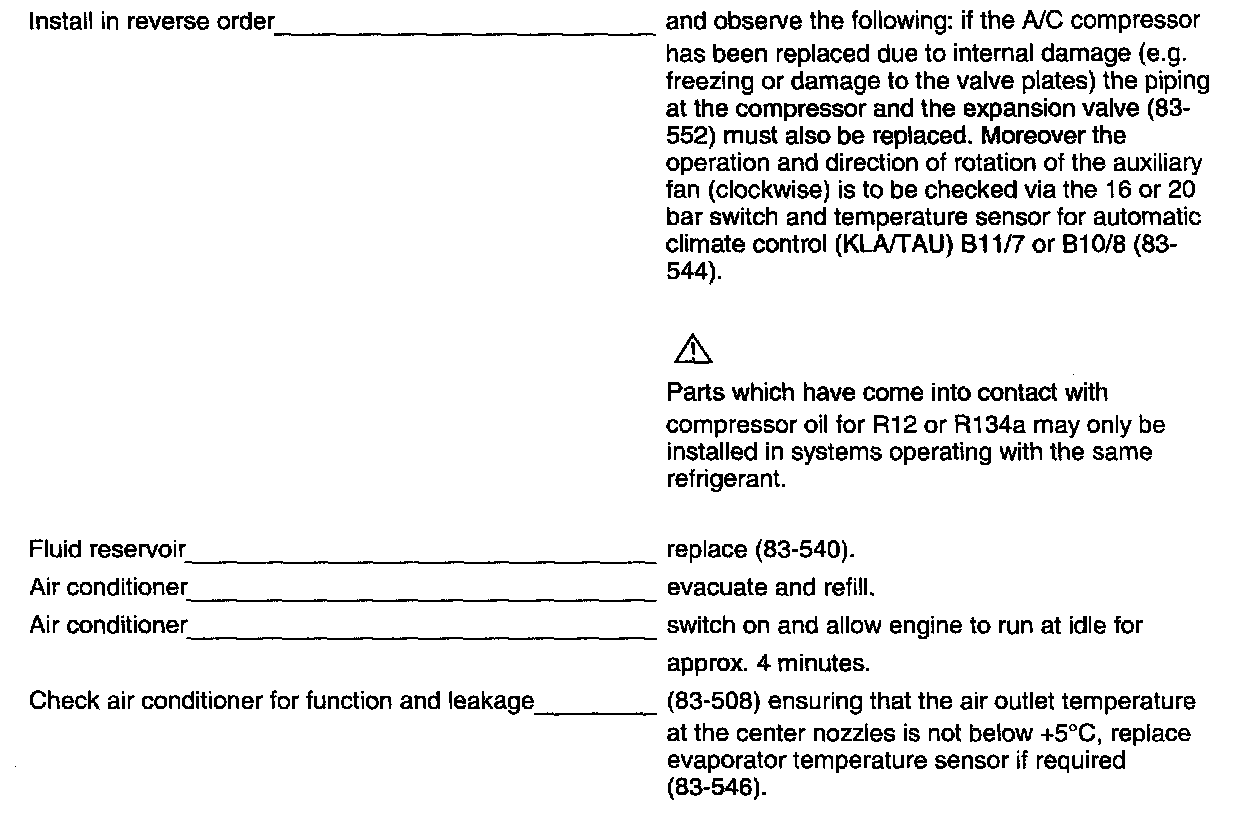

Caution! Parts which have come into contact with compressor oil for R12 or R134a may only be installed in systems operating with the same refrigerant.

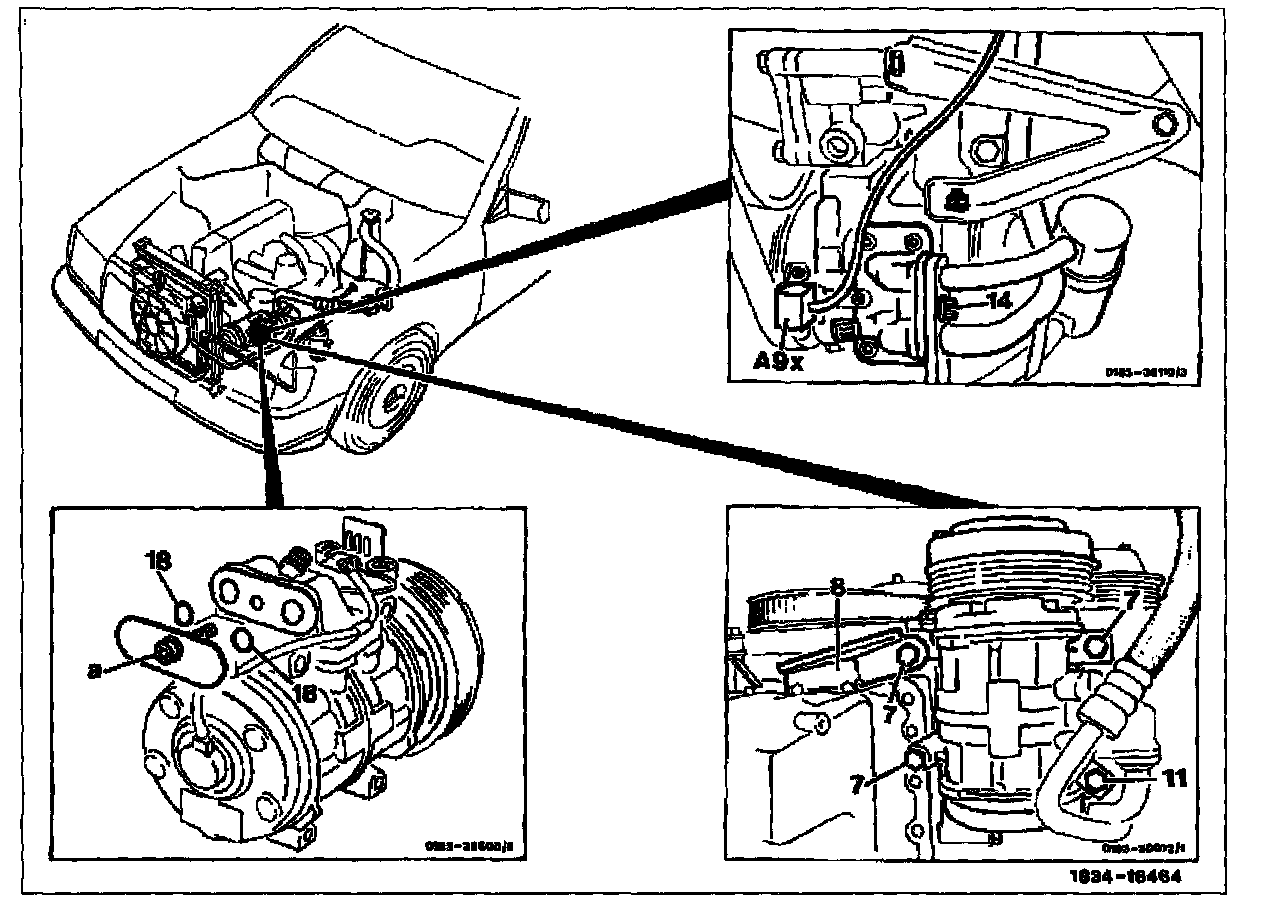

C. Engine 119

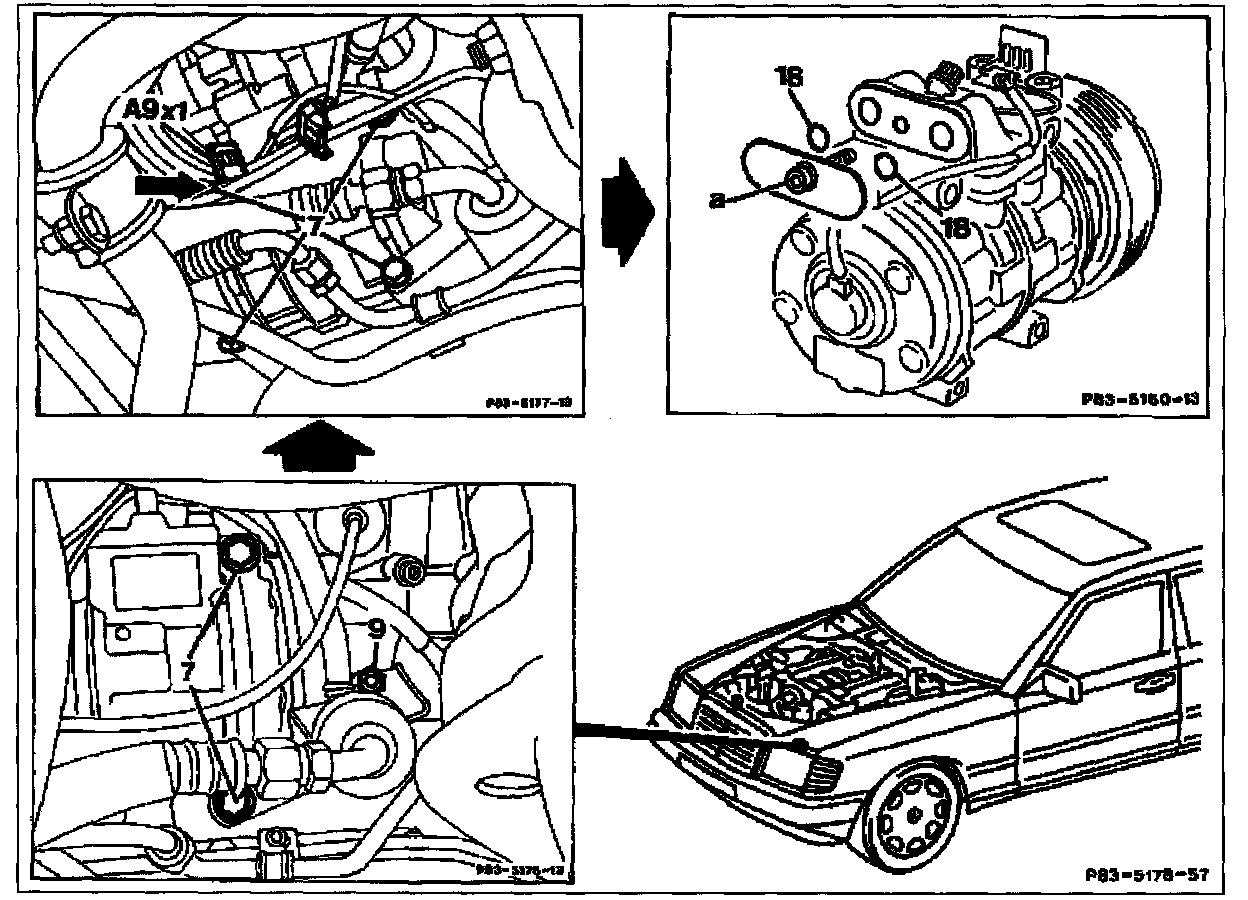

D. Engines 601, 602 and 603
