Fuel tank position/ design/ function - GF47.10-P-3000C
MODEL 140.0
Shown on MODEL 140.057/ 076 without CODE (282a) Ski bag (through-loading facility)
MODEL 140 with CODE (282a) Ski bag (through-loading facility)

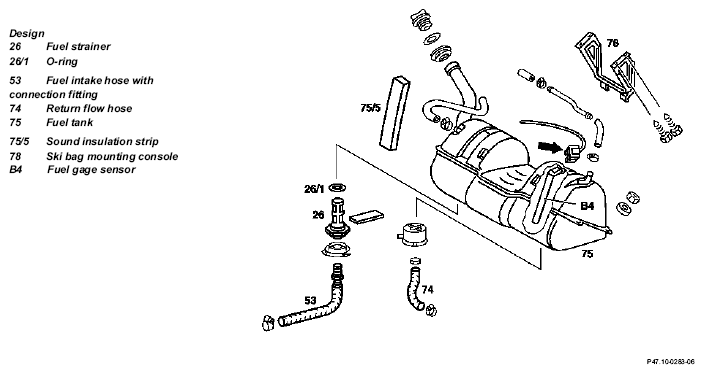

| Fuel tank position | The fuel tank (75) is positioned in the trunk above the rear axle | ||
| Fuel tank design | The fuel tank (75) is manufactured from sheet steel. | ||
| Fuel tank function | The fuel is drawn through the fuel strainer (26) and the fuel inlet hose (53). The fuel flows back along the return flow hose (74). The vent hose (76/1) runs to the activated charcoal canister. | ||
| Fuel tank ventilation system function | except CODE 282 Ski bag (through-loading facility) | GF47.10-P-3005B | |
| with CODE 282 Ski bag (through-loading facility) | GF47.10-P-3005BB | ||
| Fuel gage sensor (B4) position/ task/ design/ function | Lever-type sensor as of 1.4.95 | GF47.10-P-3001B | |
| Splash bowl position/ task/ function | GF47.10-P-3101C |
