Fuel Injection System (CIS-E)

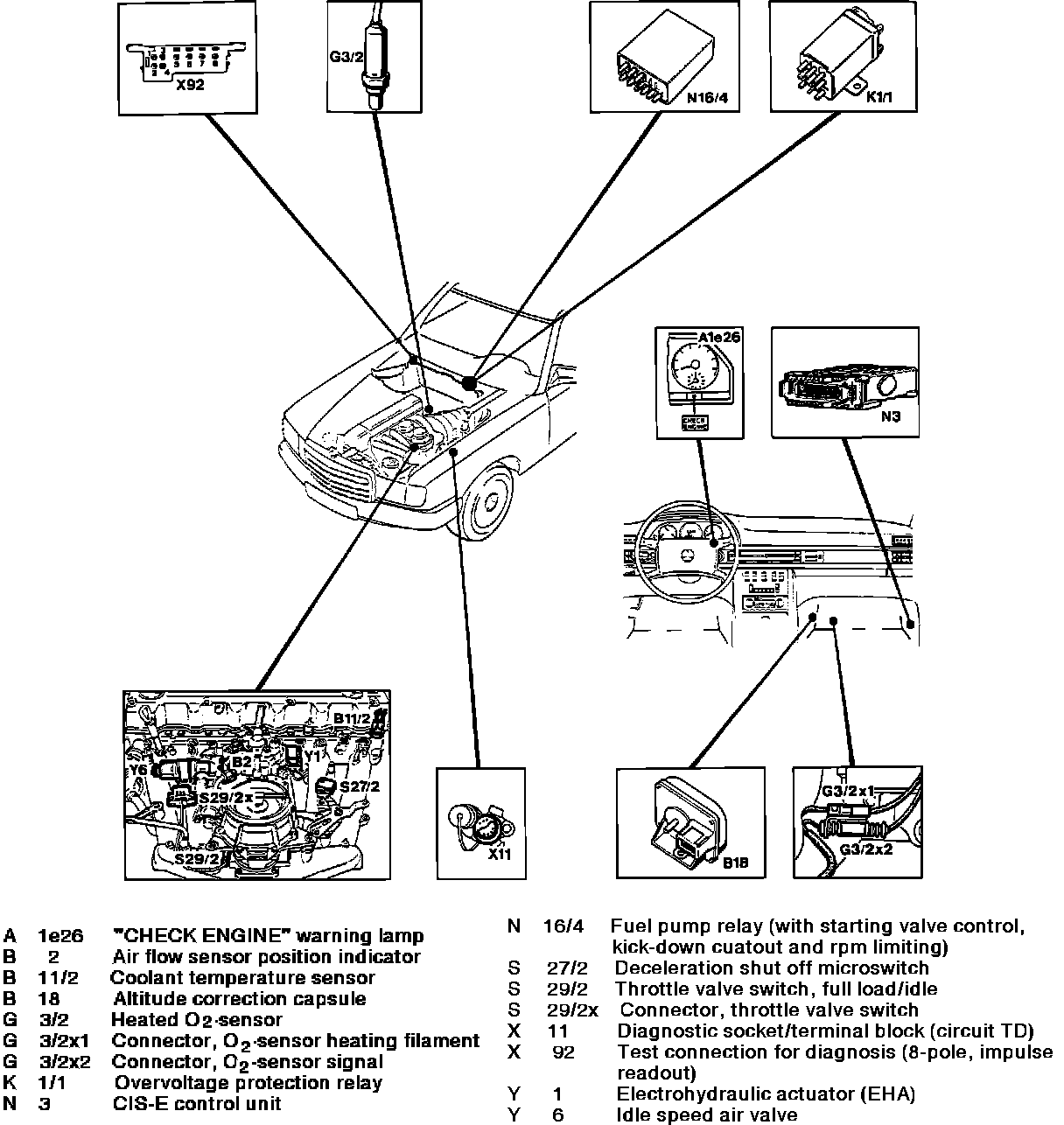

Component Locations:
The CIS-E control unit is located behind the passenger's right side panel.
