Vehicle Speed Signal (In Speedometer)

Signal relays vehicle speed to CIS-E control unit.

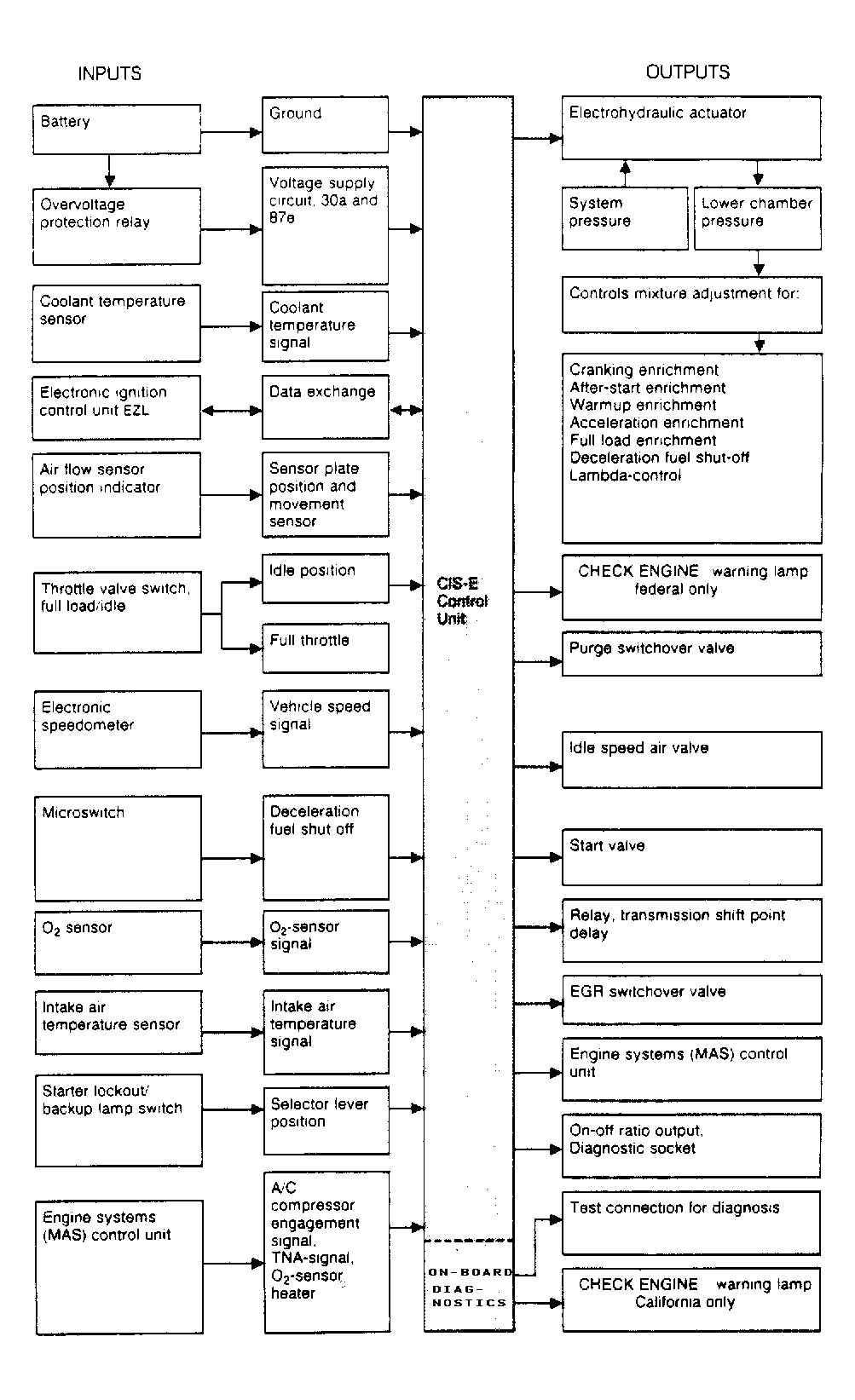

Fig 1: Inputs & Outputs of CIS-E Control Unit
G91C17444Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
