Checking Pneumatic Function Of Element

Conversion of mbar to psi is as follows:

• 600 mbar is 8.7 psi
• 300 mbar is 4.4 psi
• 25 mbar is 0.36 psi

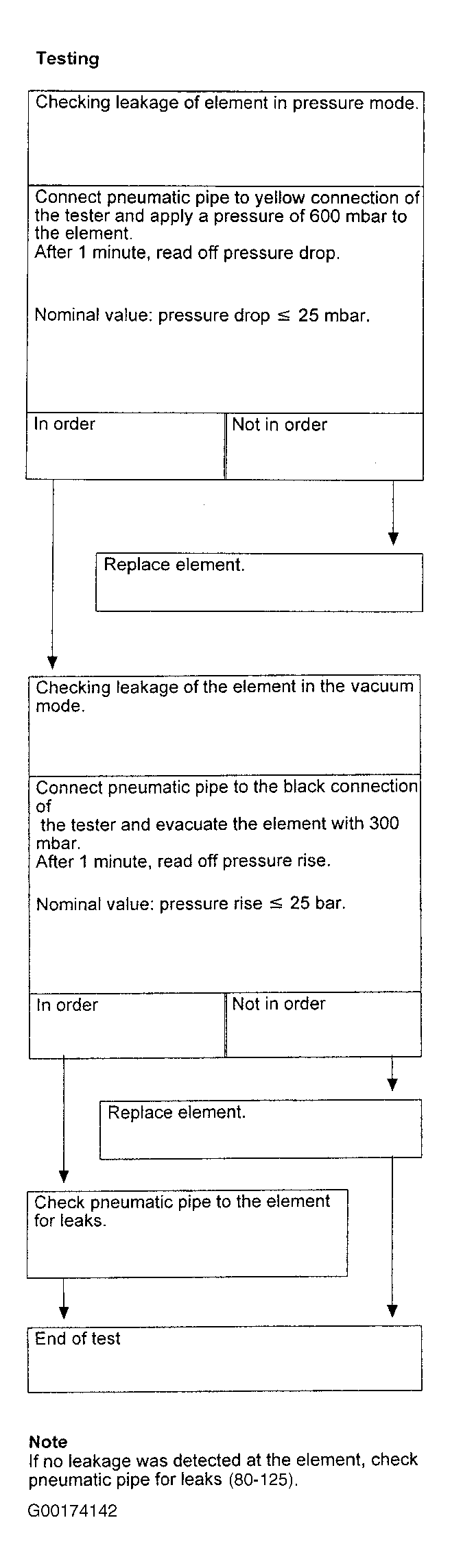

Fig 1: Checking Pneumatic Function Of Element (1 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

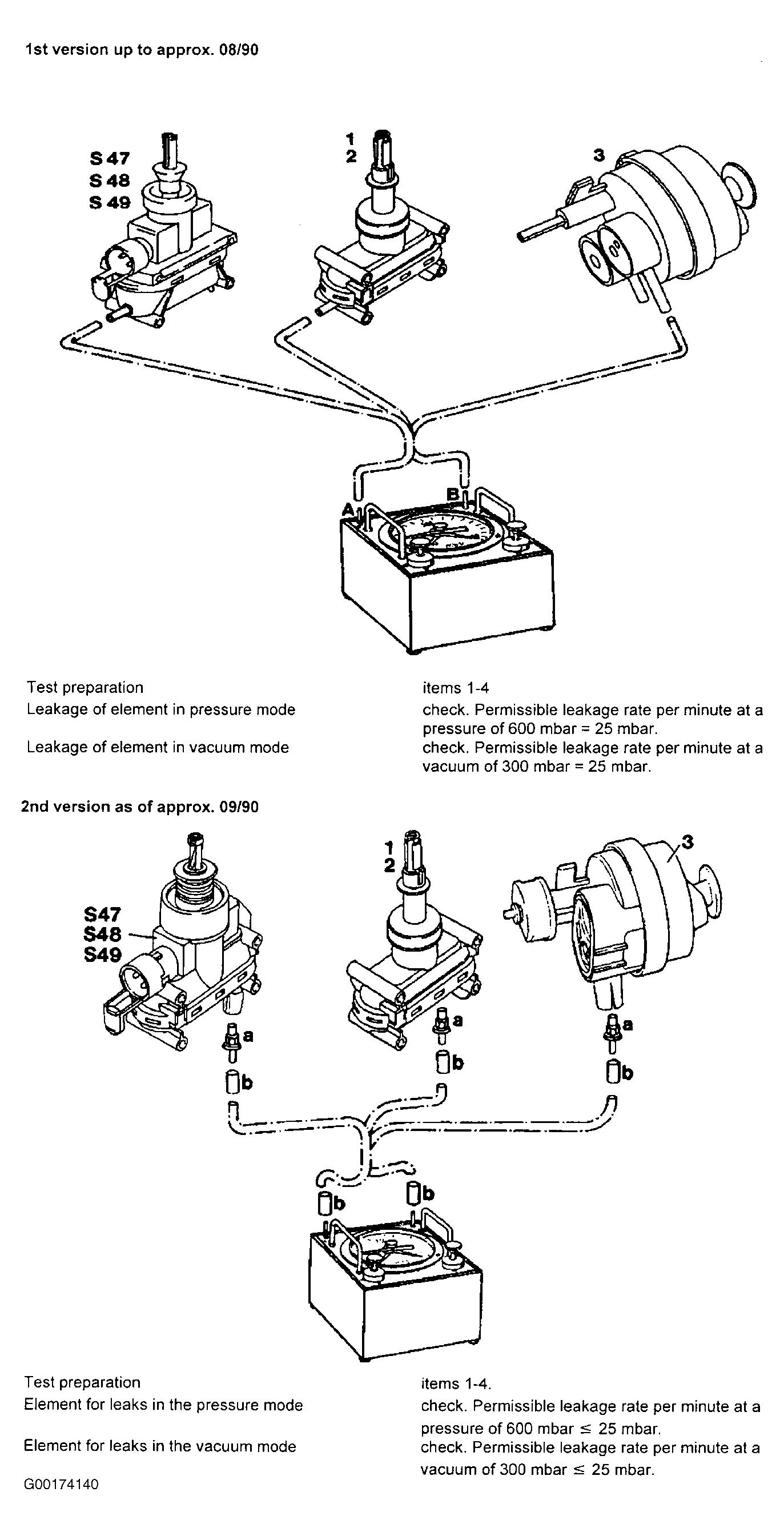

Fig 2: Checking Pneumatic Function Of Element (2 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

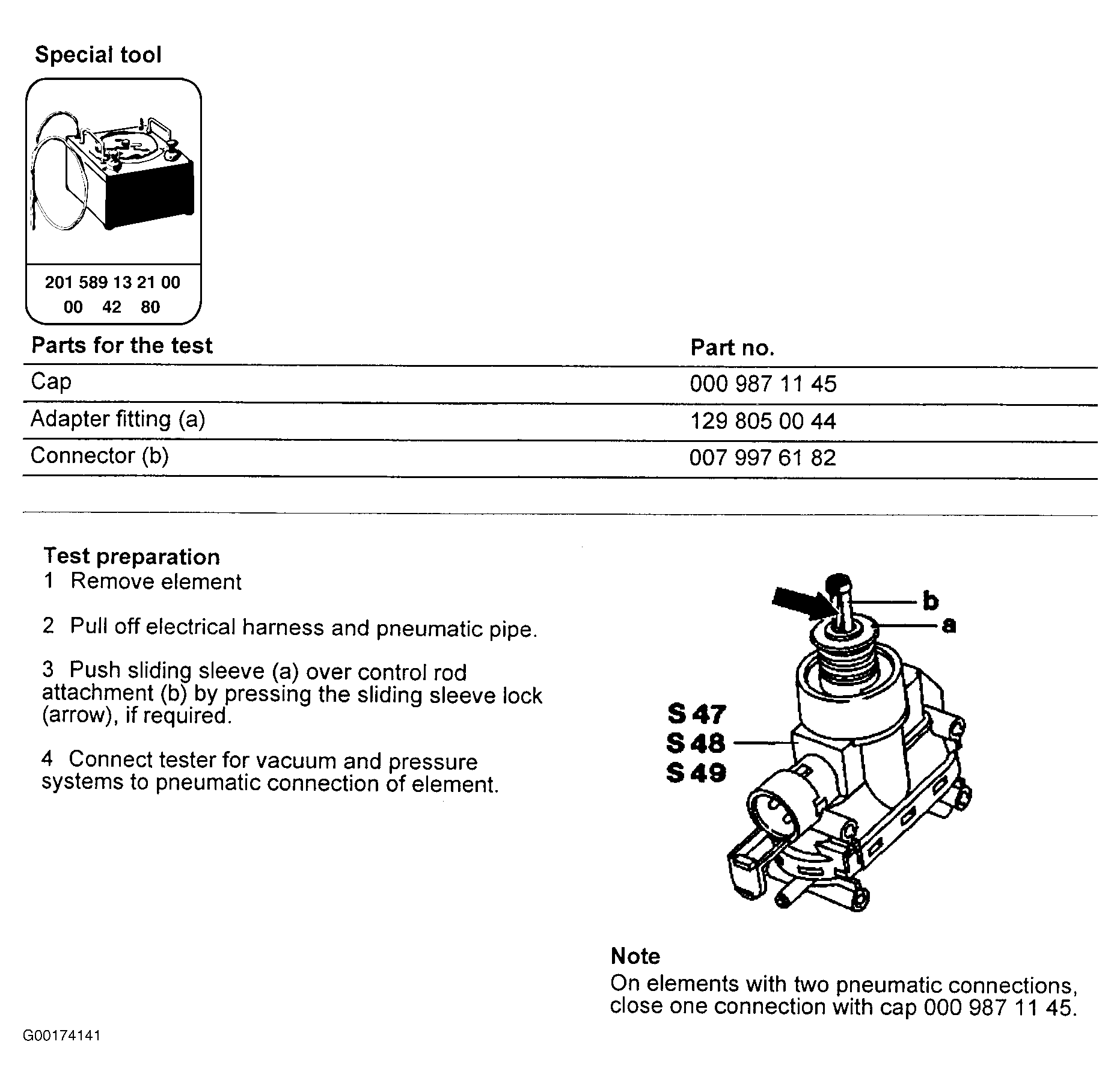

Fig 3: Checking Pneumatic Function Of Element (3 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
