Main Relay (Computer/Fuel System): Locations



Fuse and Relay Block Identification and Location

Left Rear Corner of Engine Compartment:




The fuse/relay box is located in the left rear corner of the engine compartment.

F15 - Aux. Fuse Holder for Blower Motor (Near Brake Fluid Reservoir):




The auxiliary fuse holder is located in the engine compartment near brake fluid reservoir.

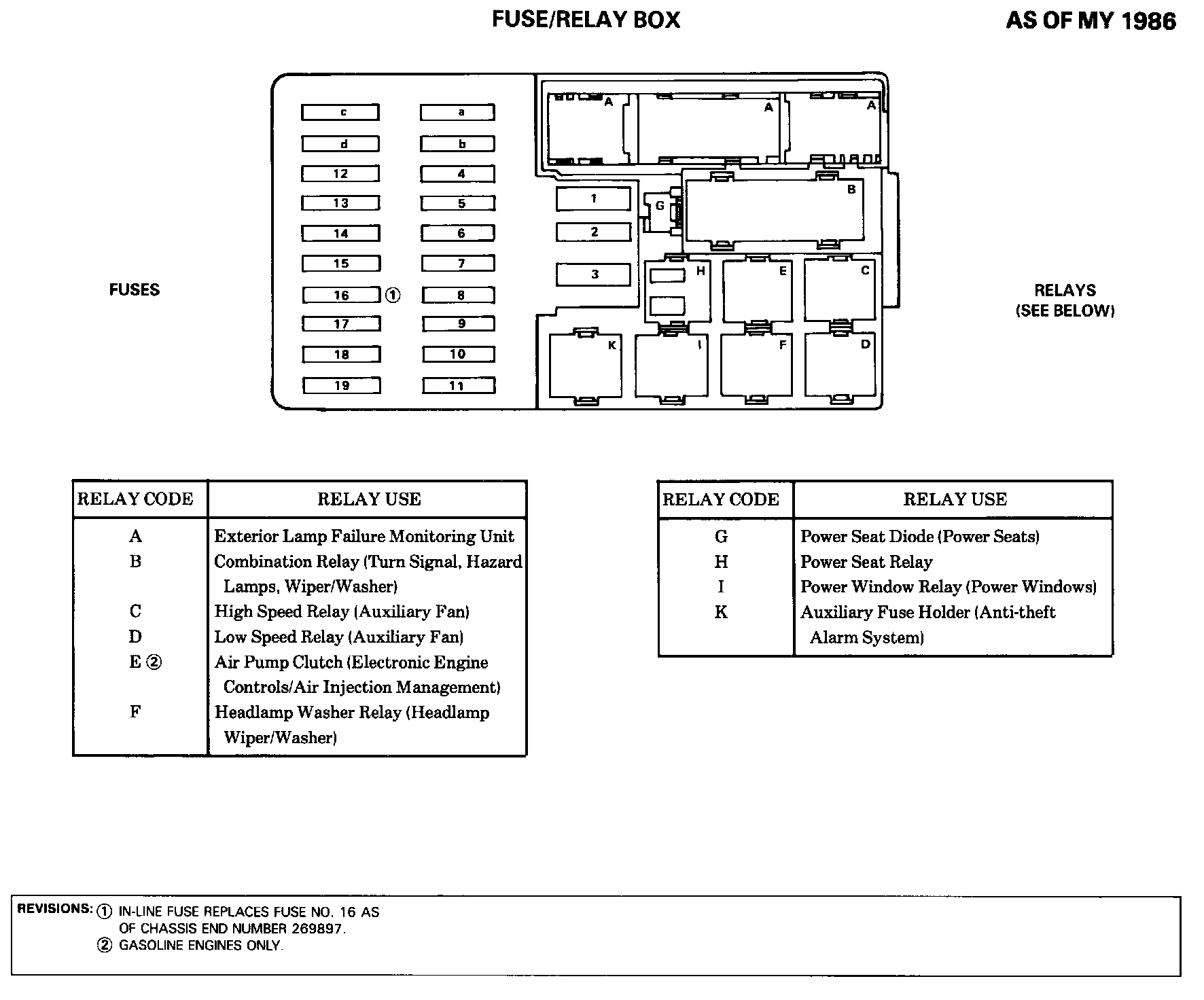

Fuse & Relay Box Layout / Relay Identification:

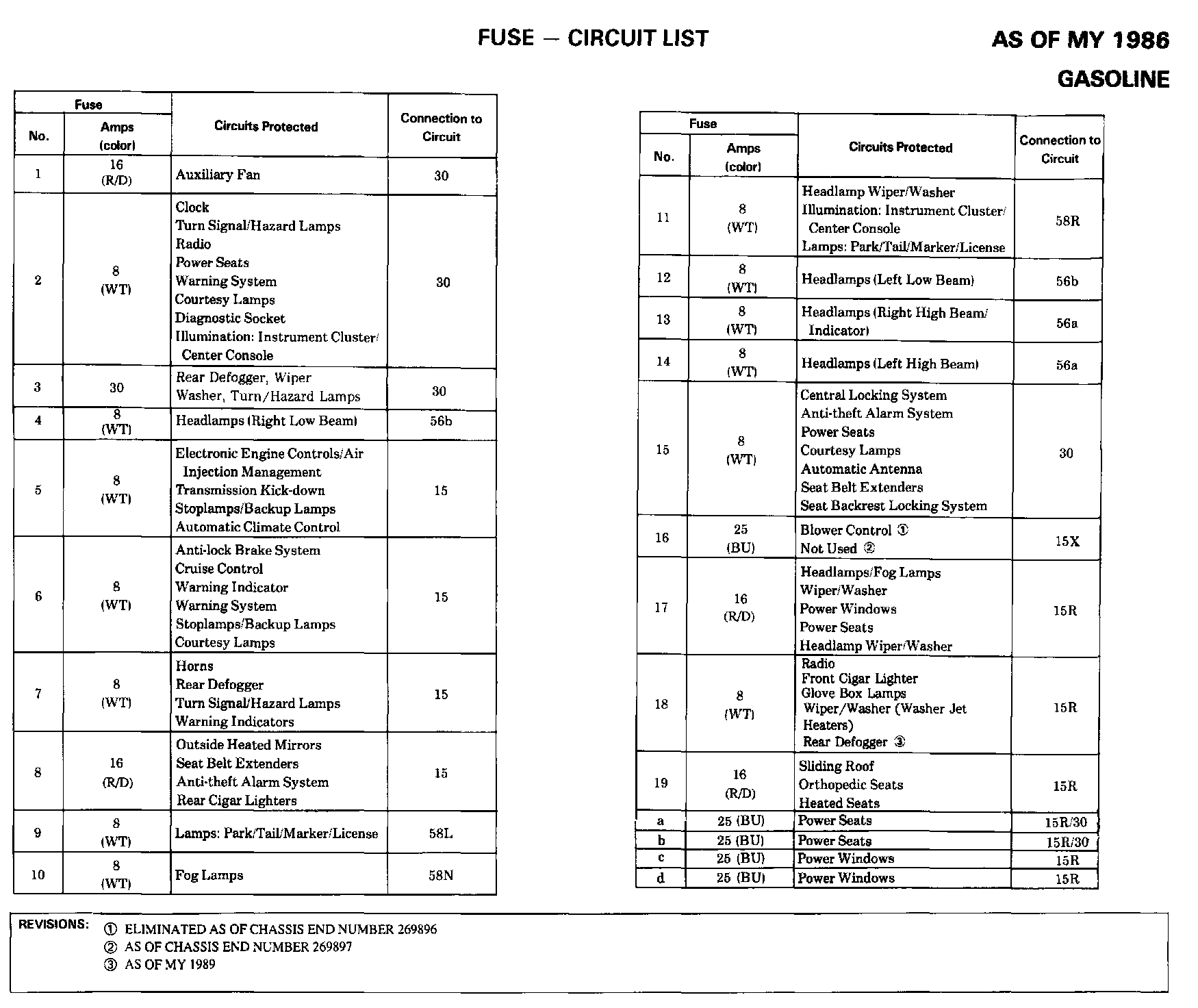

Fuse Identification:
