Ignition Rotor: Service and Repair

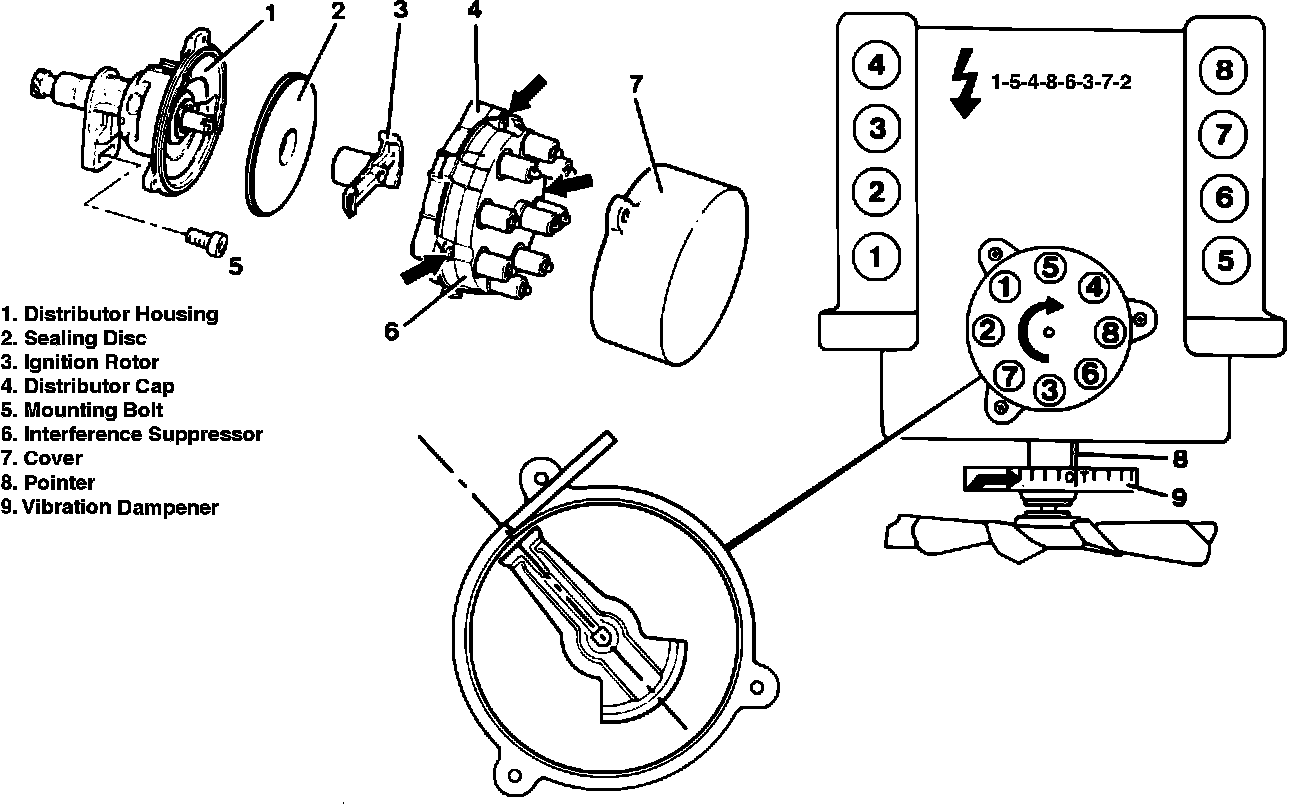

Ignition Distributor Assembly:

1. Remove the cover (7) from the high voltage distributor.
2. Unscrew the retaining screws and remove the distributor cap.
3. Lift off the ignition rotor.
4. Replace in reverse manner.
