Starting System Test
Test Data:
Special Tools:
Equipment
-
Multimeter -- e.g. SUN DMM-5

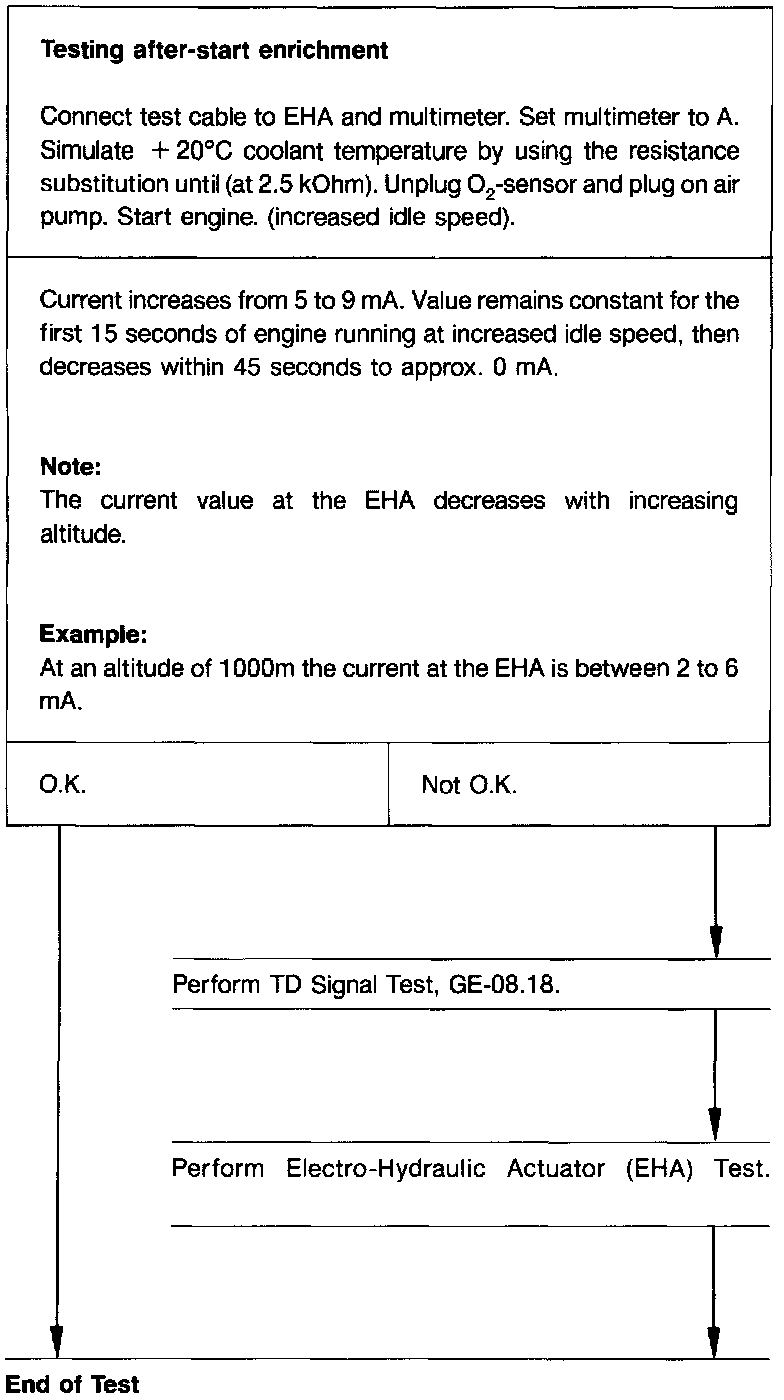

Test Page 1:

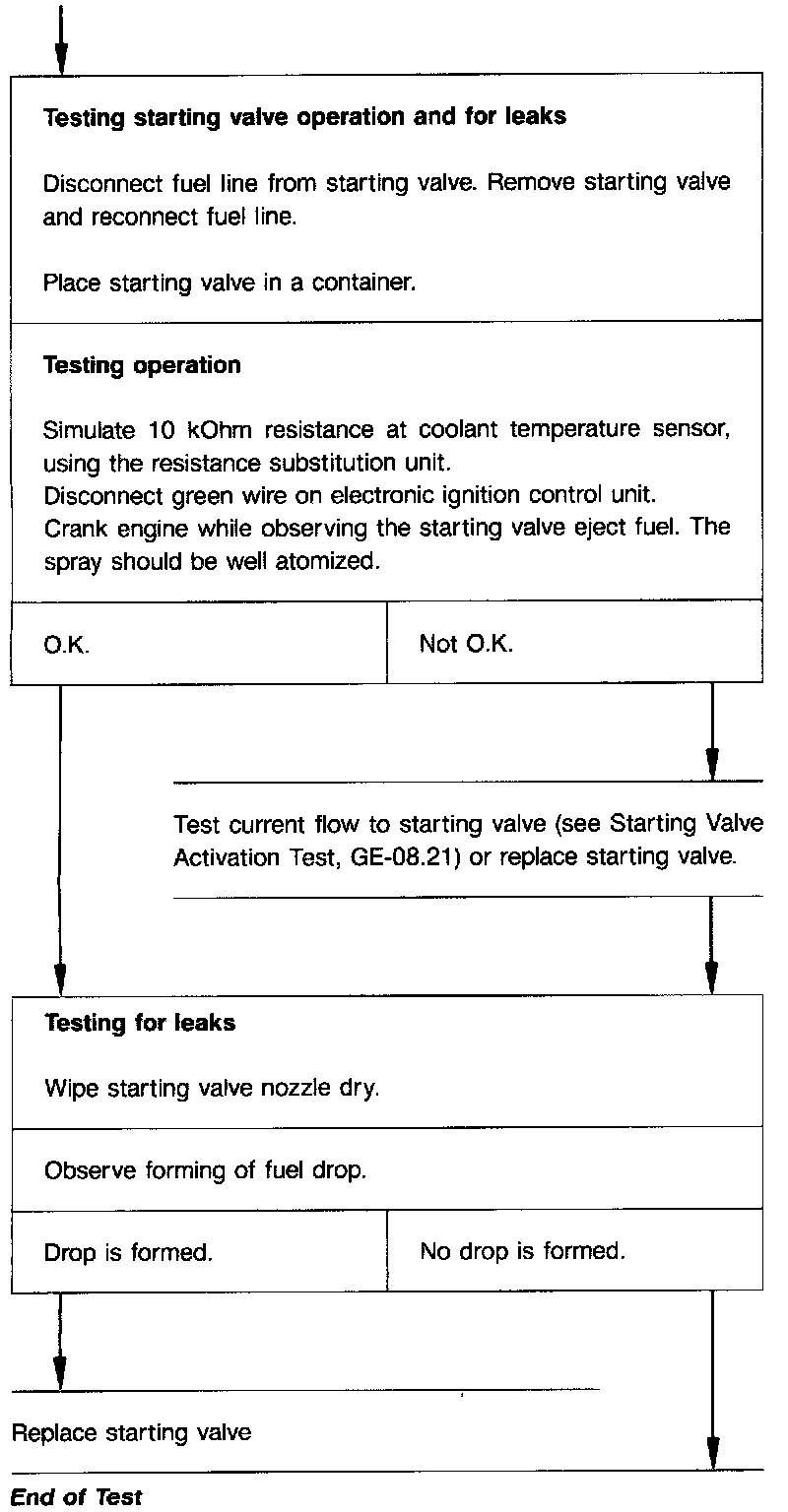

Test Page 2:
Test Page 3:
