Injection Valve Test

This Test Is Divided Into The Following Sections:

A. Valves without Viton Seals

B. Valves with Viton Seals

Special Tools:

Injection Valve Test
A. Valves without Viton Seals

Injection Valves Without Viton Seals:

Tightening Torque (without Viton Seals)
- Injection lines to fuel distributor (reference value)
^ 10-12 Nm (89-107 in. lbs.)
- Injection lines to injection valves (reference value)
^ 12 Nm (107 in. lbs.)

NOTE: Before testing injection valves, fill container of tester with clean test fluid (e.g. Shell Mineral Spirits 135) and bleed tester.

CAUTION!
^ Never use normal gasoline or other easily flammable/combustible fluids in valve tester.

^ Only injection valves which do not meet specifications must be replaced. Always install new seals when reinstalling the injection valves.

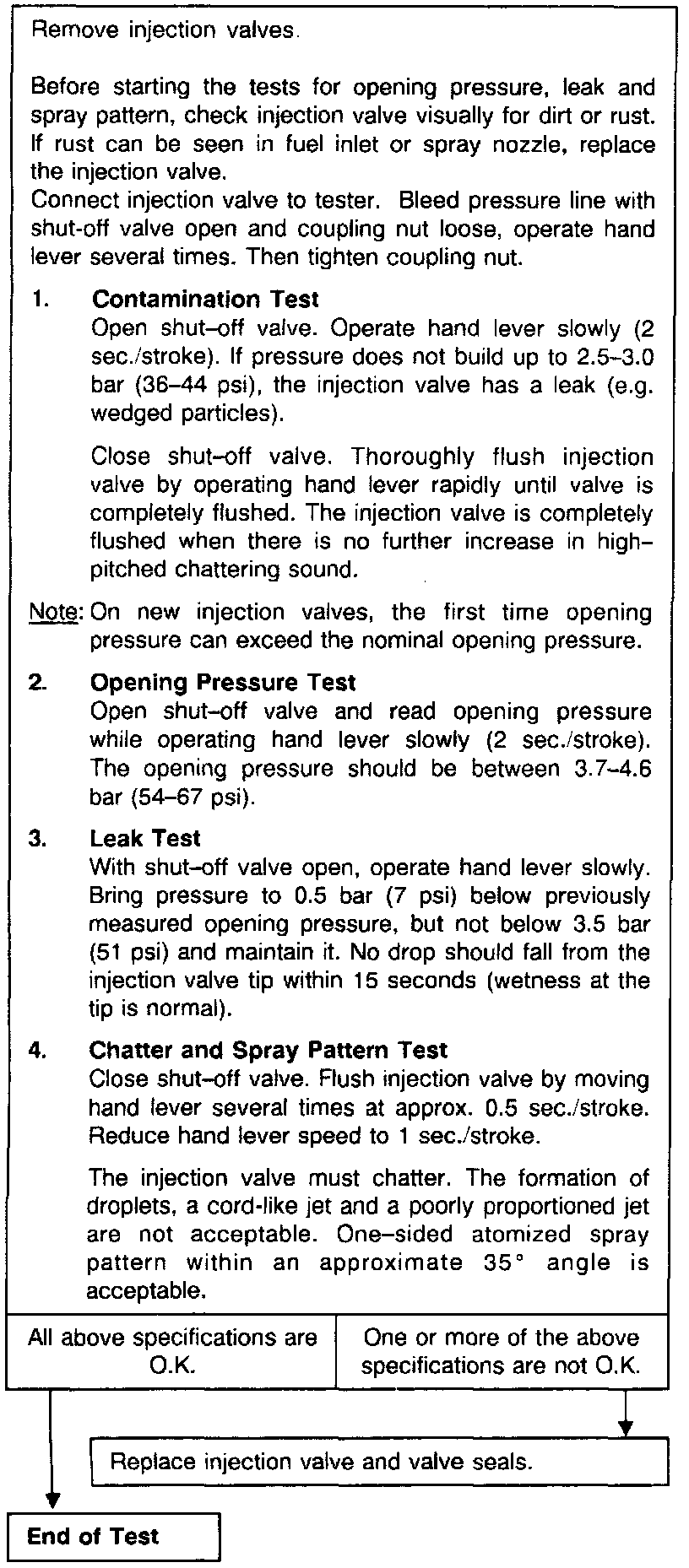

Test:

Injector Tester:

Damaged Injection Valves
- Evaluate On Valves Without Viton Seals Only!

Formation Of Drops:

Cord-like Jet:

Poorly Proportioned Jet:

Good Injection Valves
- Evaluate On Valves Without Viton Seals Only!

Well Proportioned Jet:

Slightly One-Sided Atomization:

Injection Valve Test

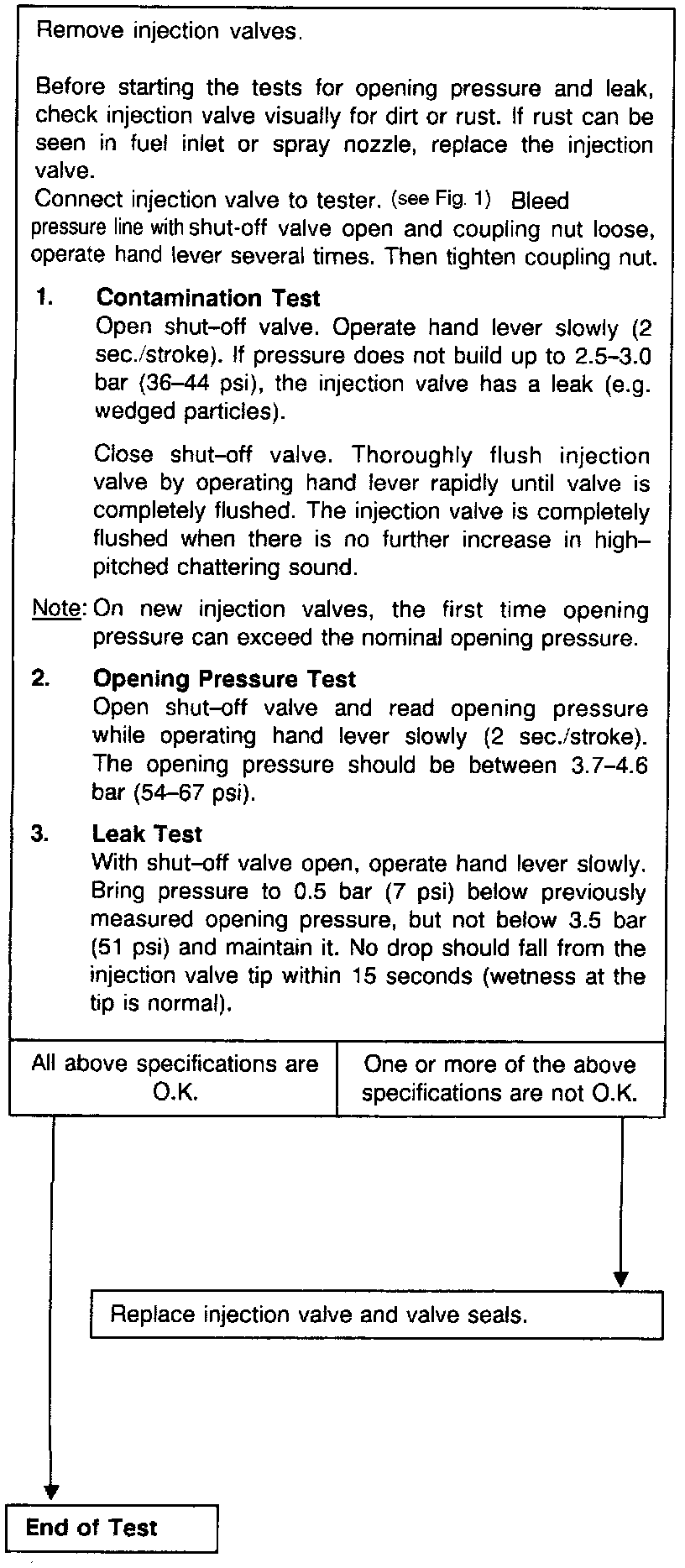

B. Valves with Viton Seals

Tightening Torque (with Viton seals)
- Injection lines to fuel distributor (reference value)
- 10-12 Nm (89-107 in. lbs.)
- Injection lines to injection valves (reference value)
- 12 Nm (107 in. lbs.)

NOTE:
^ Injection valves should be tested as soon as possible after removal from the engine (Viton seals will dry out and affect the opening pressure readings).

^ Before testing injection valves, fill container of tester with clean test fluid (e.g. Shell Mineral Spirits 135) and bleed tester.

CAUTION!
^ Never use normal gasoline or other easily flammable/combustible fluids in valve tester.

^ Only injection valves which do not meet specifications must be replaced. Always install new seals when reinstalling the injection valves.
