Deceleration Shut-Off Test
Special Tools:
Equipment
- Multimeter -- e.g. SUN DMM-5
- Engine analyzer -- SUN EMT-1O19/Master 3 or MCM-2110. All-Test 3610-MB

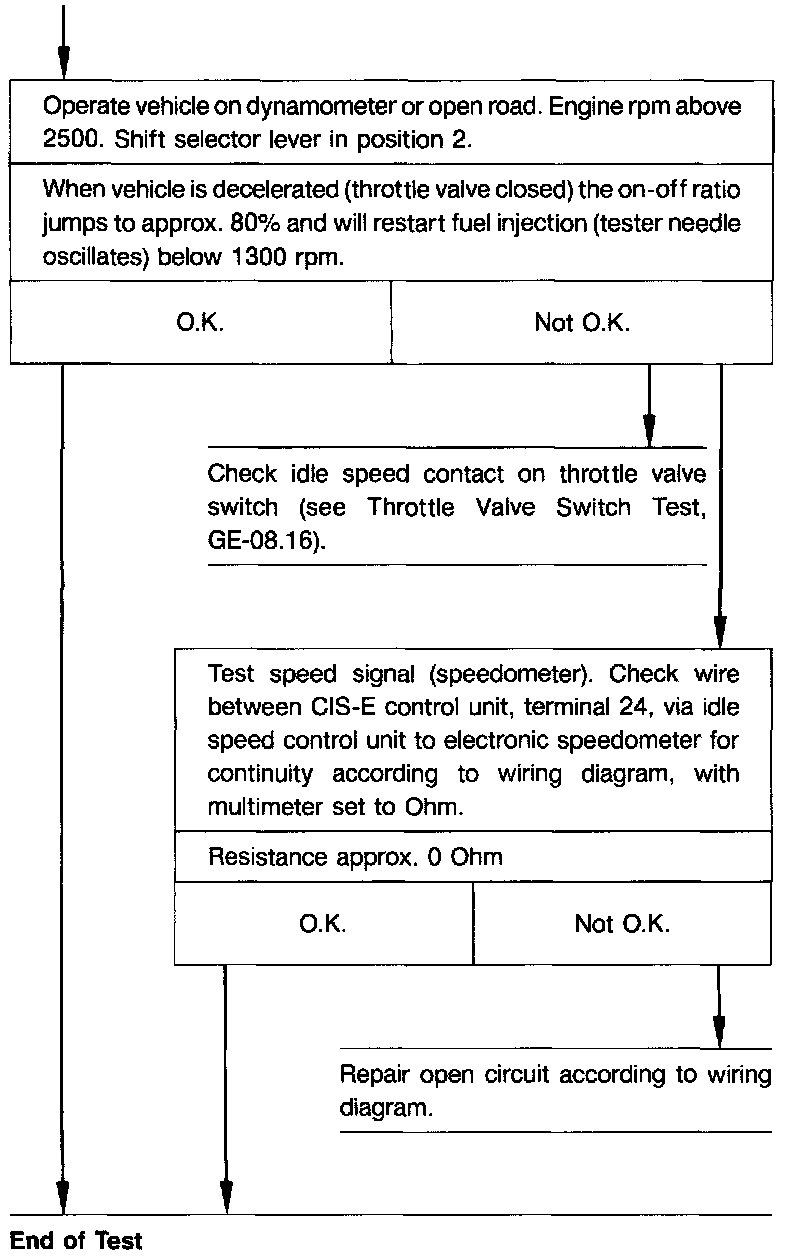

Test Page 1:
Fig. 1:
N3 CIS-E control unit
P On-off ratio tester
X11 Diagnostic socket
Test Page 2:
