Timing Component Alignment Marks: Locations

Timing Component Alignment Marks

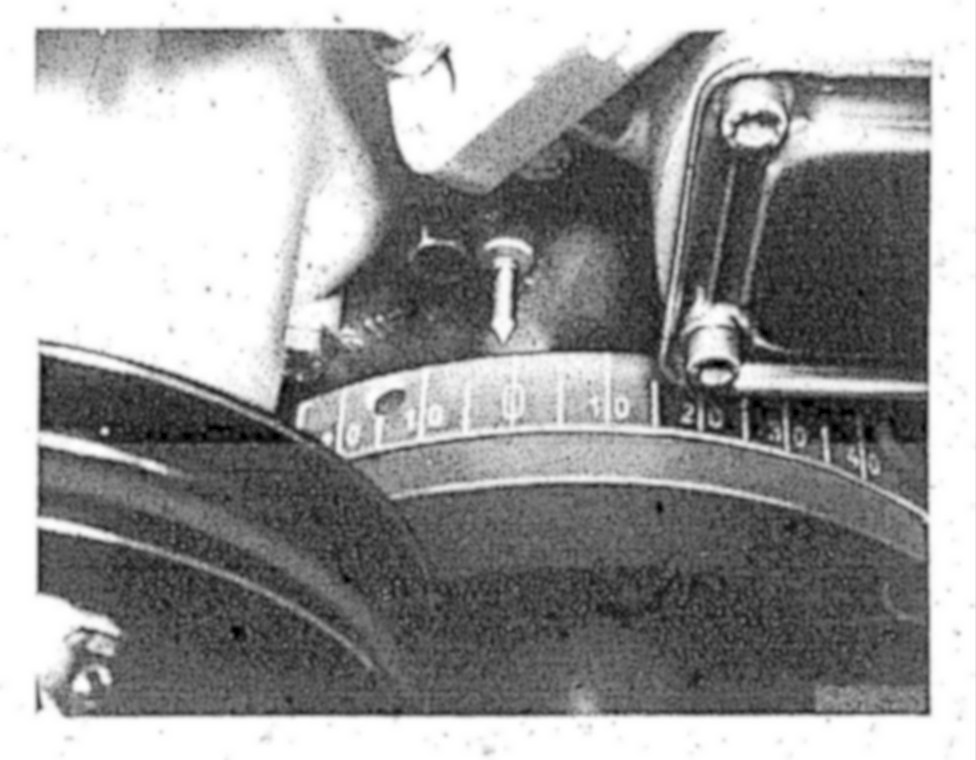

Set engine to ignition TDC at No.1 cylinder.

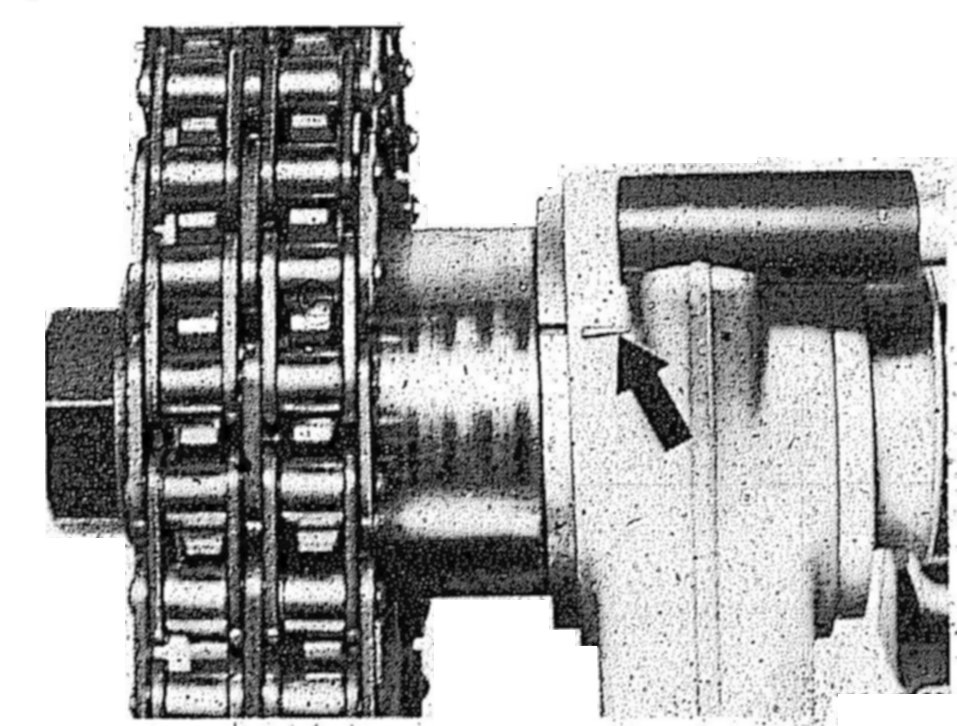

If the markings (arrow) are not accurately lined up, check camshaft timing.

For further information refer to Camshaft, Engine : Adjustments
Adjustments
and Timing Chain : Service and Repair
Service and Repair
