Brake Caliper Exploded View (Teves and Bendix Type)

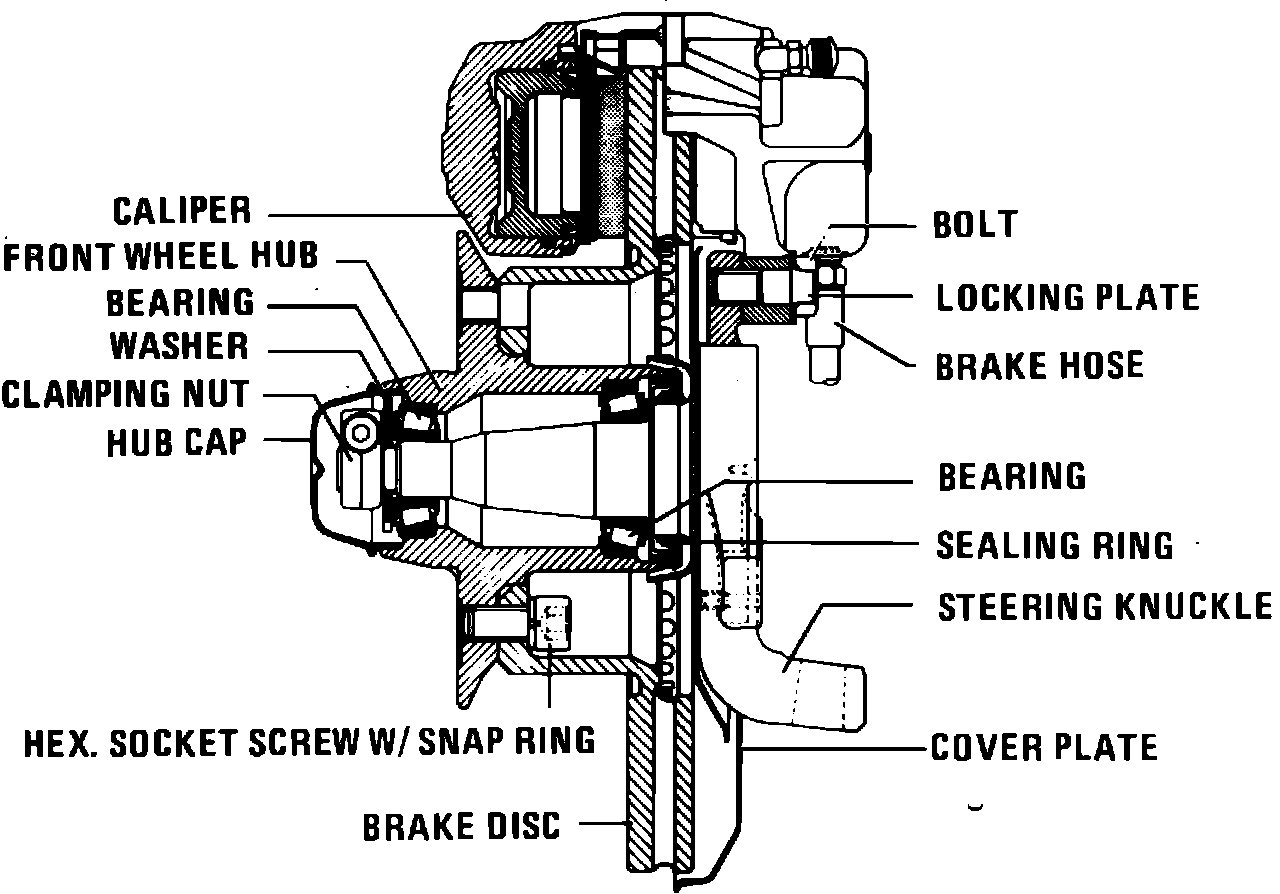

Fig. 1 Sectional view of Teves & Bendix type front brake calipers.:
