Cruise Control Reference Resistor Expanded Scope (54/54)

Publication date: 1989-10-01
Reference number: 54/54

CRUISE CONTROL REFERENCE RESISTOR EXPANDED SCOPE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 54/54, Date of Issue: October 1989

CRUISE CONTROL REFERENCE RESISTOR

Model(s): Mercedes Benz Models 107.048, 124, 126, 201

Group: Electrical

Bulletin No.: 54/54

Date: October 1989

SERVICE INFORMATION

The scope of reference resistors for the cruise control unit has been expanded. For their test values as well as individual applications, see Reference Resistance Test Values or Parts Information.

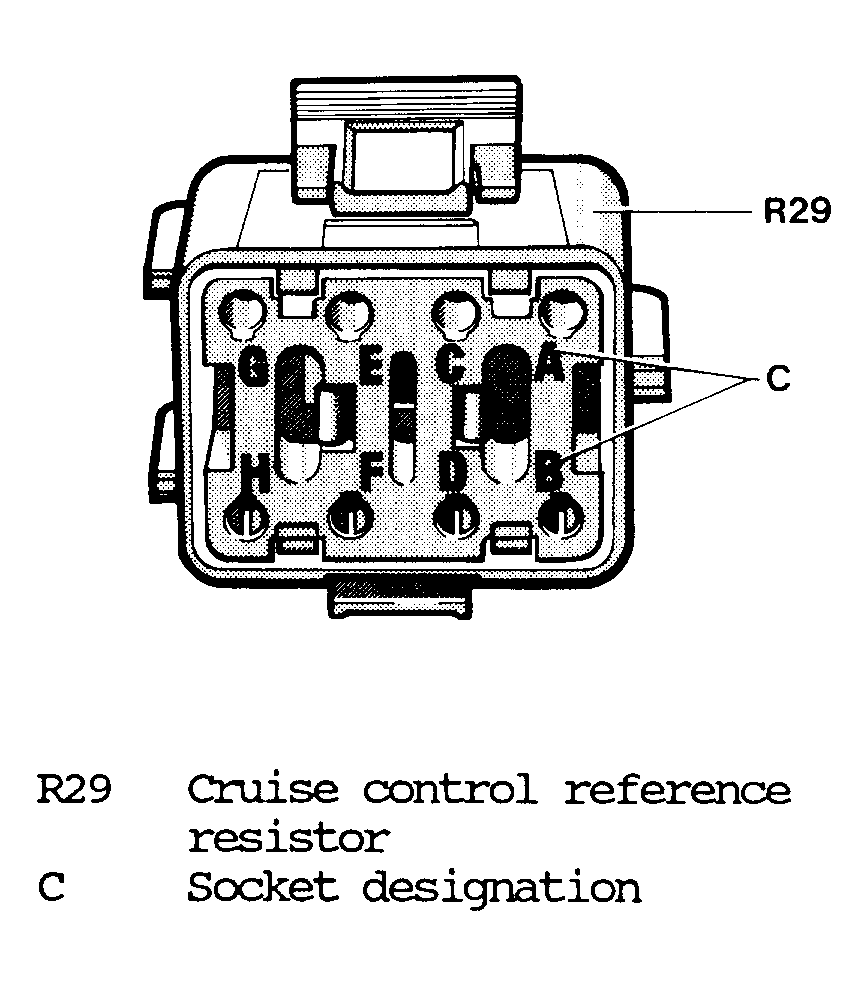

Fig 1: View of Cruise Control Reference Resistor

RESISTANCE DATA/SOCKET DESIGNATION - PART 1

Part No.

E - G K -Ohms

E - F K -Ohms

E - B K -Ohms

005 545 07 32

501 - 521

26.2 - 27.2

1470 - 1530

005 545 08 32

501 - 521

26.2 - 27.2

1470 - 1530

005 545 10 32

684 - 712

39.4 - 41

1190 - 1230

005 545 11 32

667 - 695

52.4 - 55.2

⁽¹⁾ 1960 - 2040

007 545 12 32

684 - 712

39.4 - 41

1190 - 1230

007 545 13 32

501 - 521

35.8 - 37.2

1470 - 1530

006 545 25 32

980 - 1020

39.4 - 41

1470 - 1530

006 545 26 32

1470 - 1530

98 - 102

⁽¹⁾ 3570 - 3720

007 545 39 32

465 - 485

39.4 - 41

1190 - 1230

005 545 42 32

98 - 102

19.6 - 20.4

592 - 616

005 545 43 32

166 - 172

13 - 13.6

490 - 510

005 545 46 32

1660 - 1720

39.4 - 41

1470 - 1530

006 545 61 32

980 - 1020

98 - 102

⁽¹⁾ 2940 - ⁽¹⁾ 3060

⁽¹⁾	Multimeter Fluke Model 23 can be used for measuring this data. SUN DMMS is not suitable.

RESISTANCE DATA/SOCKET DESIGNATION - PART 2

Part No.	E - DOhms	D - H Ohms	D - C Ohms	A -D Ohms
005 545 07 32	Inf.	3.21 - 3.27 kohm	less than 10	Inf.
005 545 08 32	Inf.	1.98 - 2.02 kohm	less than 10	Inf.
005 545 10 32	Inf.	8.28 - 8.62 kohm	less than 10	Inf.
005 545 11 32	Inf.	2.88 - 3 kohm	Inf.	less than 10
007 545 12 32	Inf.	1.92 - 2 kohm	Inf.	Inf.
007 545 13 32	Inf.	2.62 - 2.72 kohm	Inf.	Inf.
006 545 25 32	Inf.	1.98 - 2.02 kohm	less than 10	Inf.
006 545 26 32	Inf.	325.4 - 338.6kohm	Inf.	less than 10
007 545 39 32	Inf.	1.92 - 2 kohm	Inf.	Inf.
005 545 42 32	Inf.	3.18 - 3.3 kohm	Inf.	less than 10
005 545 43 32	Inf.	1.37 - 1.43 kohm	Inf.	less than 10
005 545 46 32	Inf.	less than 10 ohm	Inf.	less than 10
006 545 61 32	Inf.	3.92 - 4.08 kohm	Inf.	less than 10

Multimeter Fluke Model 23 can be used for measuring this data. SUN DMMS is not suitable.

PARTS INFORMATION

PART NAME	PART NUMBER	APPLICATION
Reference resistor	005 545 07 32	107.048, 126.035/039/045
" "	005 545 08 32	126.037/044
" "	005 545 10 32	126.024/025
" "	005 545 11 32	201.122 Automatic
" "	007 545 12 32	124.026/030/050/090 Automatic
" "	007 545 13 32	201.028
" "	006 545 25 32	201.029
" "	006 545 26 32	201.128
" "	007 545 39 32	124.026/030 Manual
" "	005 545 42 32	201.122 Manual
" "	005 545 43 32	201.126 Automatic
" "	005 545 46 32	124.133/193
" "	006 545 61 32	201.126 Manual
