Blower Override Switch

Removal:

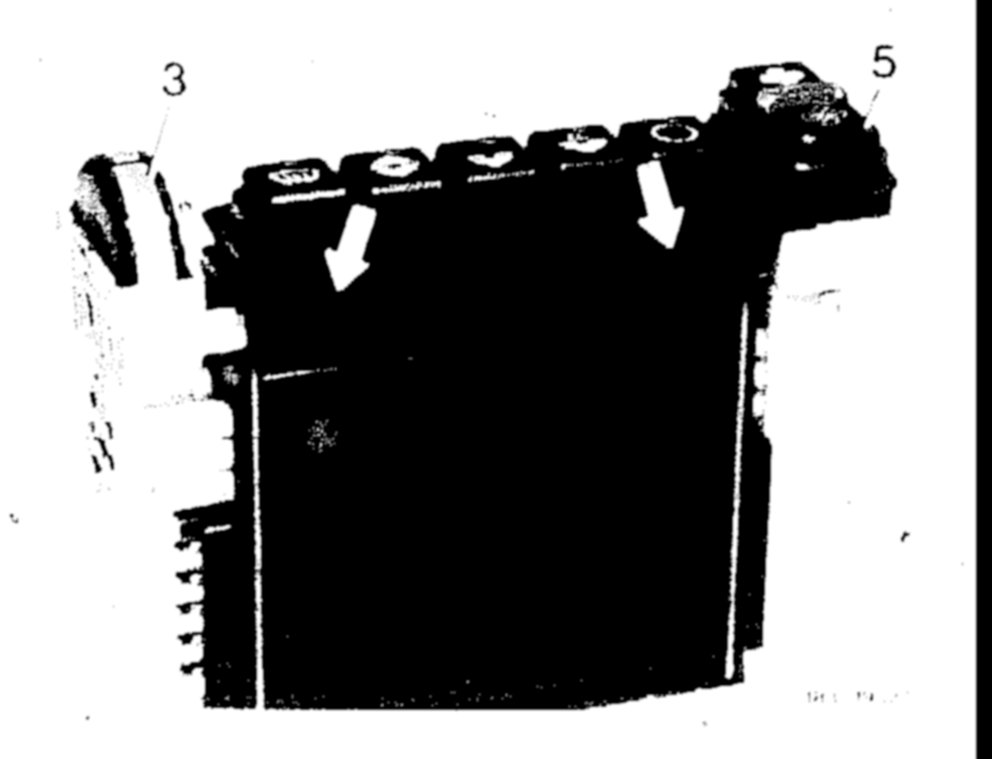

1. Pull out clip (64). Remove plastic cover (refer to arrow) from control unit, beginning at blower switch (5). 50 that pushbuttons will drop out individually.
2. Unclip blower switch (5) on control unit (refer to arrow) and remove blower switch (5).






Installation:
3. Position blower switch (5) with clip (64) at control unit and mount plastic cover. Reinstall pushbuttons under slight pressure with a circular motion.
