Remove/Install Temperature Selector








Removal:

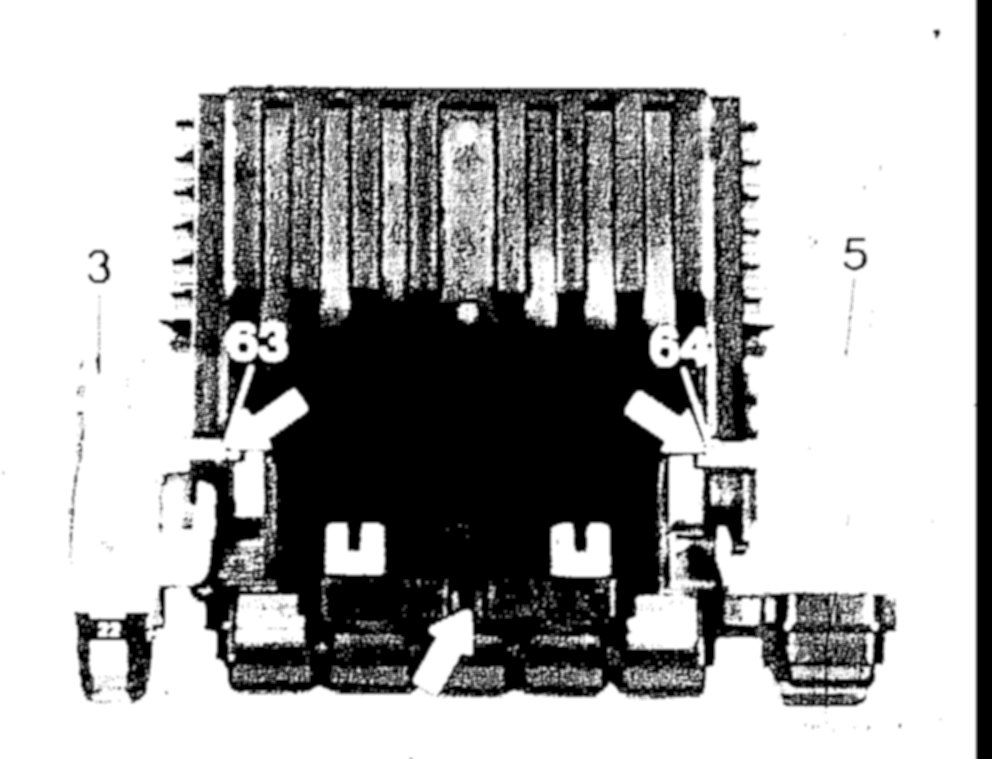

1. Unclip temperature dial (3) from control unit and pull off.






Installation:
2. Position temperature dial (3) against control unit and fasten with clip (63).
