Servo Units

SERVO UNITS LOCATION

Component Location

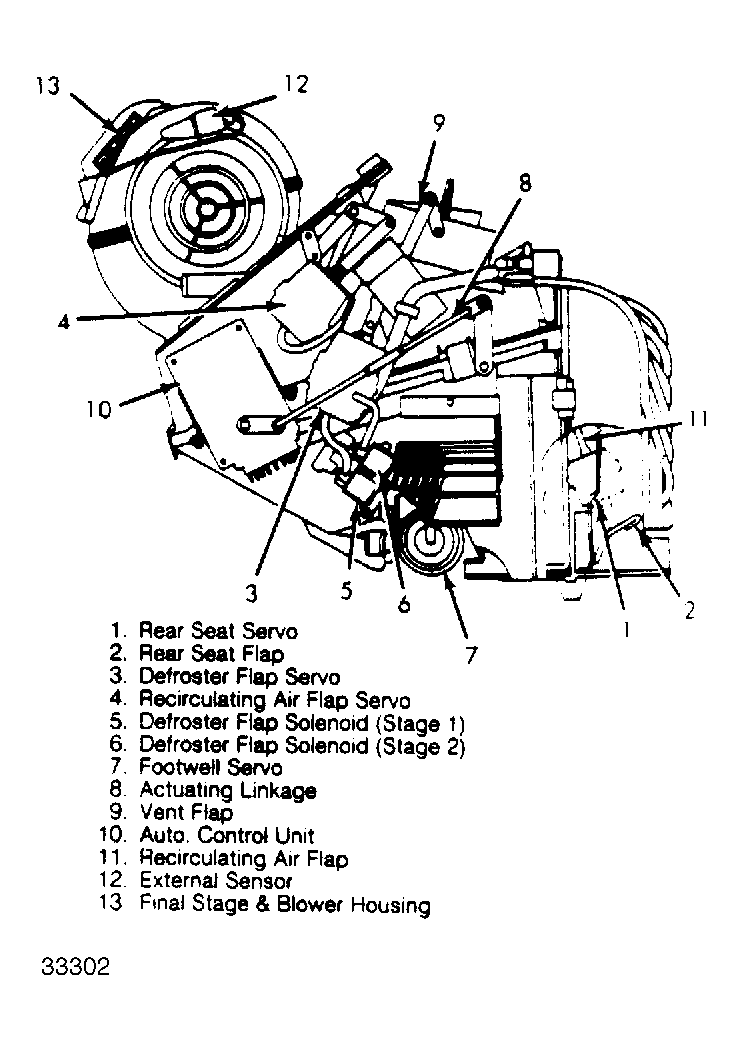

Defroster Flap Servo On right side of blower housing. See Figure .
Footwell Servo On right side of blower housing. See Figure .
Recirculating Air Flap Servo On right side of blower housing. See Figure .
Rear Seat Servo On right side of blower housing. See Figure .
