Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|

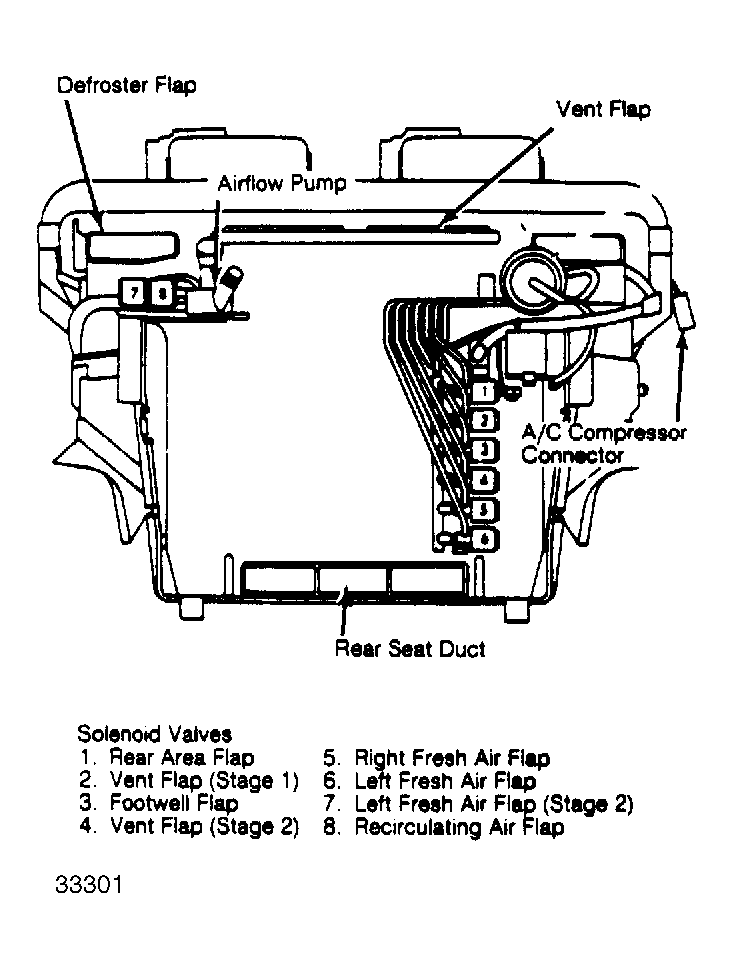

| A/C Airflow Pump | On top of A/C blower housing. See Figure . |

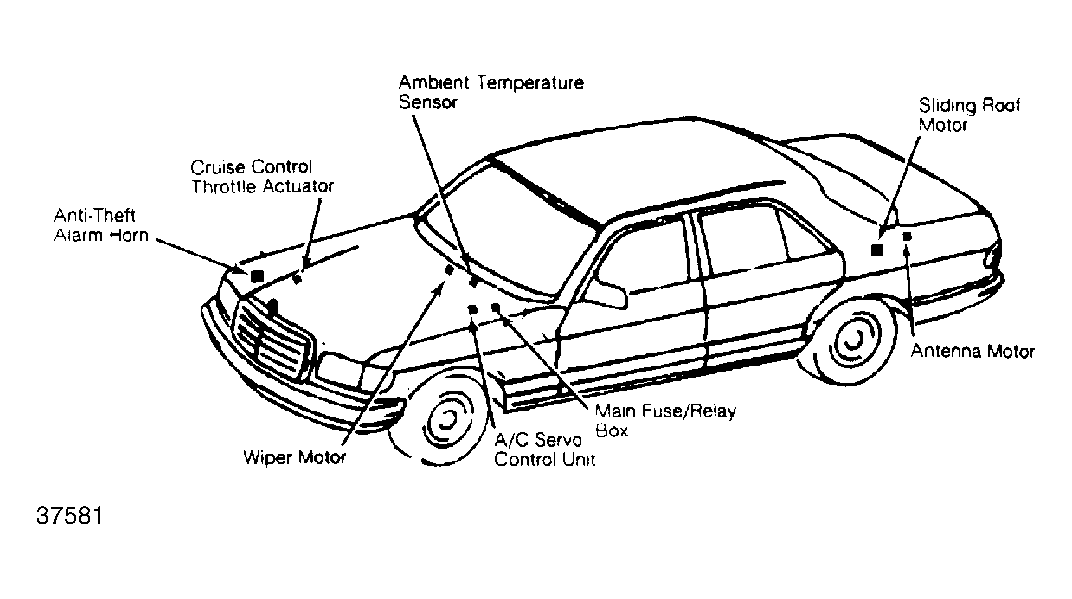

| Antenna Motor | In left front side of trunk. See Figure . |
| Auxiliary Water Pump (Heater) | Behind firewall below mono heater water valve. |
| Central Lock Vacuum Supply Pump | In spare tire well. |
| Sliding Roof Motor | In left front side of trunk. See Figure . |
| SRS Emerg. Tensioning Retractor | Below left and right door pillar post. See Figure . |
| Windshield Washer Motor | In washer fluid reservoir. |
| Windshield Wiper Motor | In center of fresh air duct. |
