Indicator Removal Note

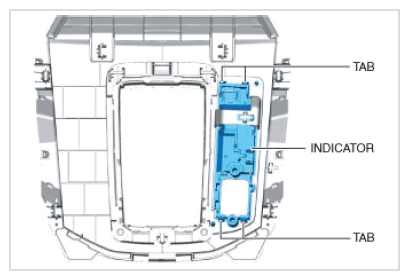

  1. Detach tabs shown in the figure and remove the indicator.
G16331822Courtesy of MAZDA MOTORS CORP.
