Front Turn Light Removal/Installation

D-code

• 51060B

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the following parts:
   1. Edge rubber (See FRONT BUMPER REMOVAL/INSTALLATION .)
   2. Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
   3. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION .)

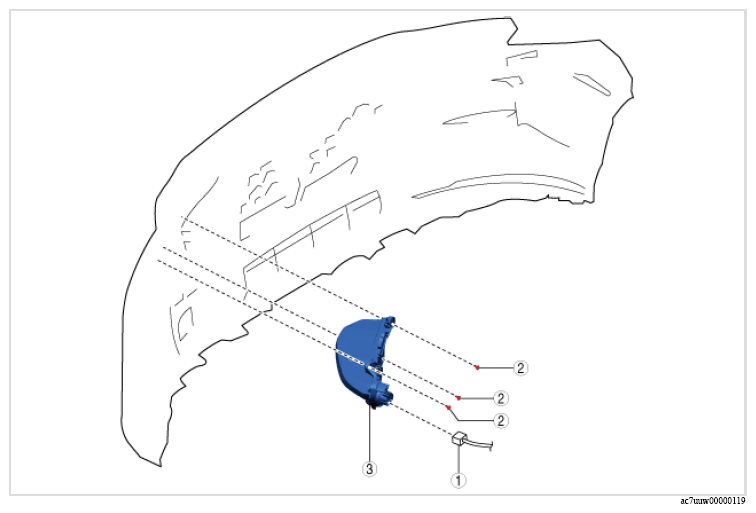

3. Remove using the procedure shown in the figure.
   • The figure shows the left side (same as right side).

   Courtesy of MAZDA MOTORS CORP.

   PART NAME DESCRIPTION



   Step	Part name
   1	Connector	-
   2	Screw	1 N.m {9 kgf.cm, 8 in.lbf}
   3	Front turn light/parking light	-

4. Install in the reverse order of removal.
5. Perform the power Liftgate (PLG) initialization procedure. (See POWER LIFTGATE (PLG) INITIALIZATION PROCEDURE .)
6. Initialize power outer mirror retract/return function. (See POWER OUTER MIRROR INITIALIZATION PROCEDURE .)
7. Perform the front radar sensor aiming. (without front side radar sensor) (See FRONT RADAR SENSOR AIMING .)
8. Perform the front side radar sensor aiming. (See FRONT SIDE RADAR SENSOR AIMING .)
9. Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360° VIEW MONITOR SYSTEM AIMING .)
