Fastener D Removal Note
WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

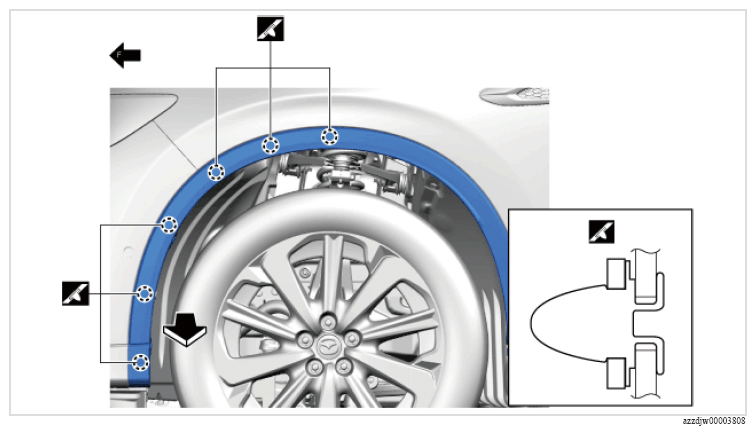

- Partially peel back the front over fender upper until fasteners D and bolts B can be removed as shown in the figure.
- Figure also shows the left side (same for the right side).
 Courtesy of MAZDA MOTORS CORP.
|
- Remove fasteners D.
