Remove Washer Fluid-level Sensor

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

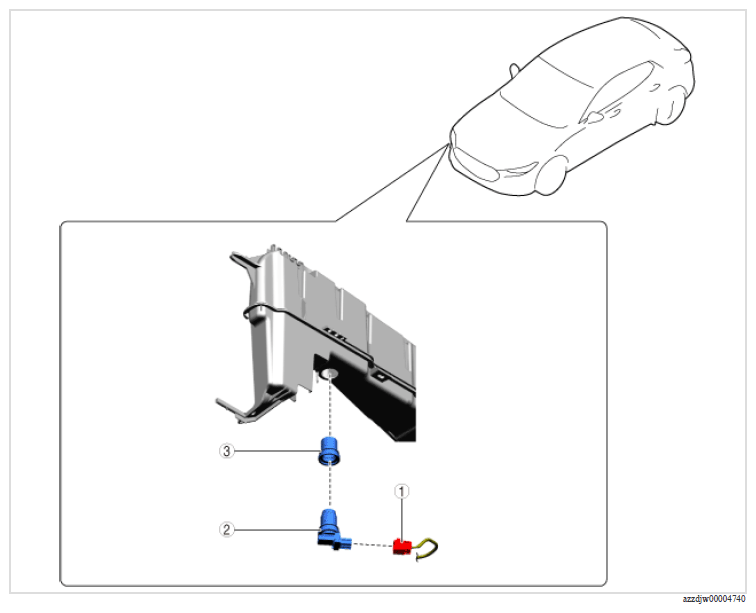

  1. Remove using the procedure shown in the figure below.
    G16706674Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Connector
2 Washer fluid level sensor
3 Grommet
