WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    2. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    3. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    5. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)

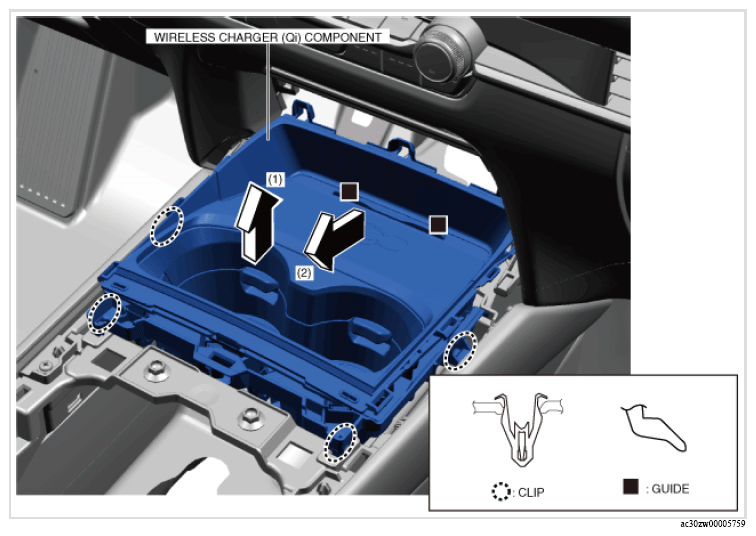

  3. Move the wireless charger (Qi) component in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the clips and guides.
    G16377355Courtesy of MAZDA MOTORS CORP.

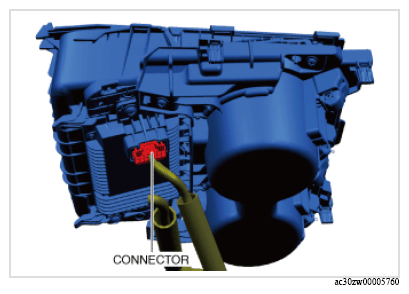

  4. Disconnect the connector.
    G16377356Courtesy of MAZDA MOTORS CORP.
  5. Remove the cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
  6. Remove the wireless charger (Qi).
  7. Install in the reverse order of removal.
