Quick Diagnostic Chart

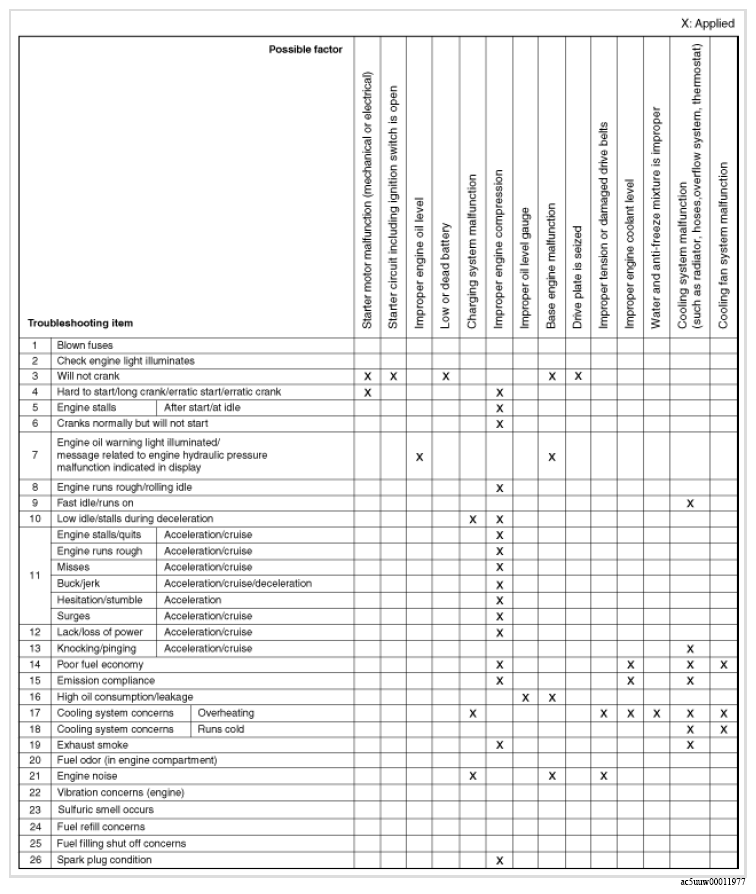

G16327133Courtesy of MAZDA MOTORS CORP.

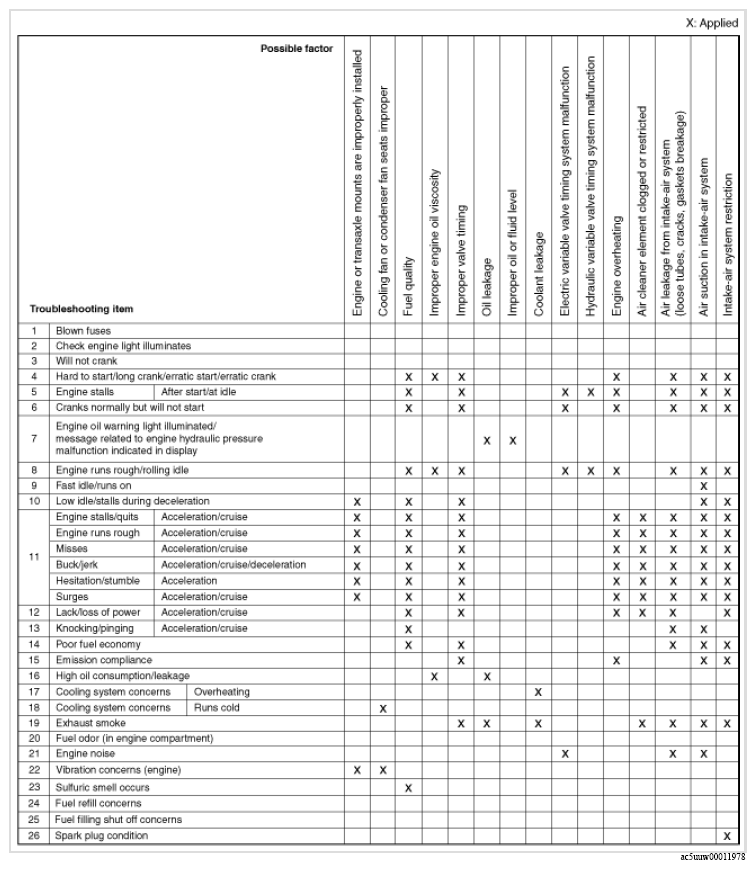

G16327134Courtesy of MAZDA MOTORS CORP.

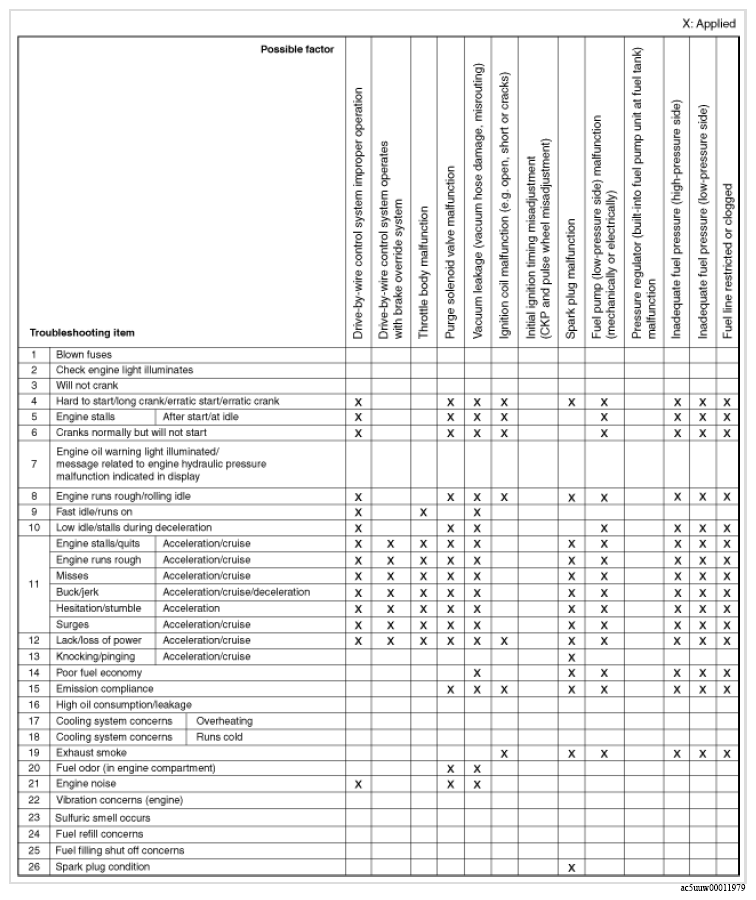

G16327135Courtesy of MAZDA MOTORS CORP.

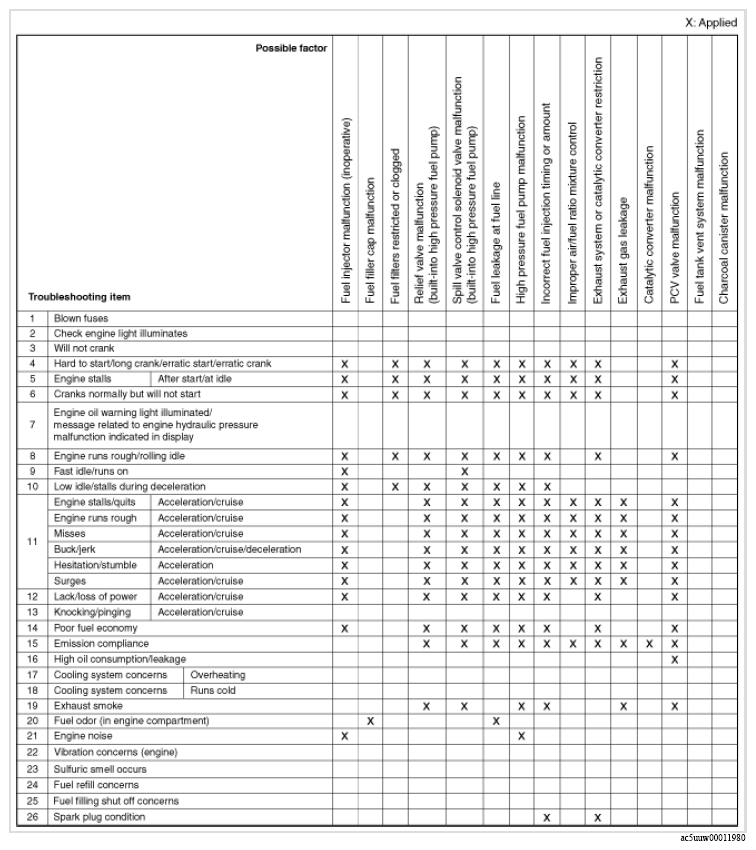

G16327136Courtesy of MAZDA MOTORS CORP.

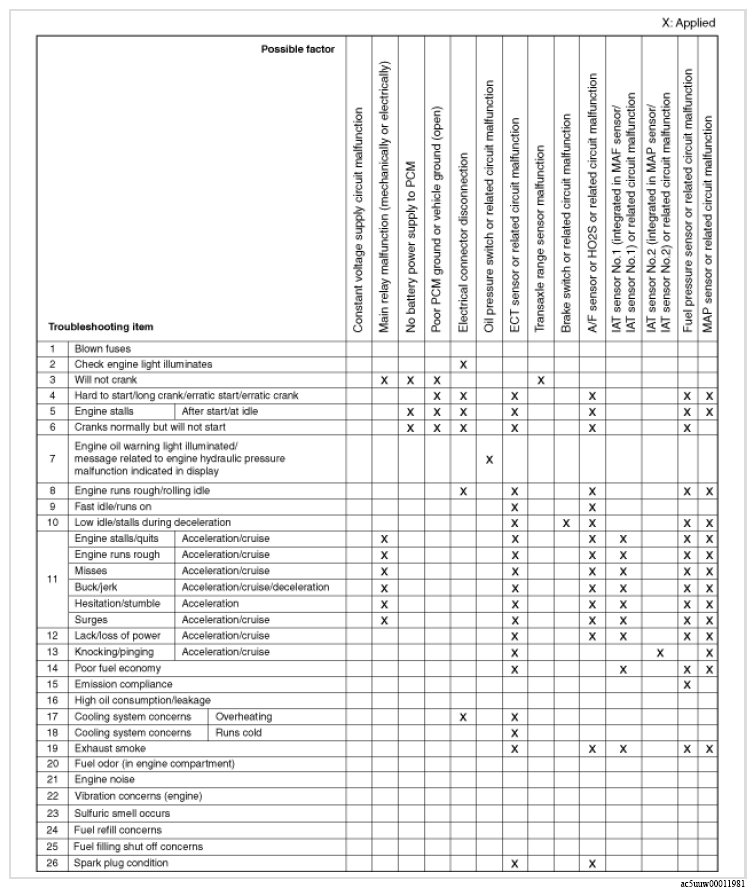

G16327137Courtesy of MAZDA MOTORS CORP.

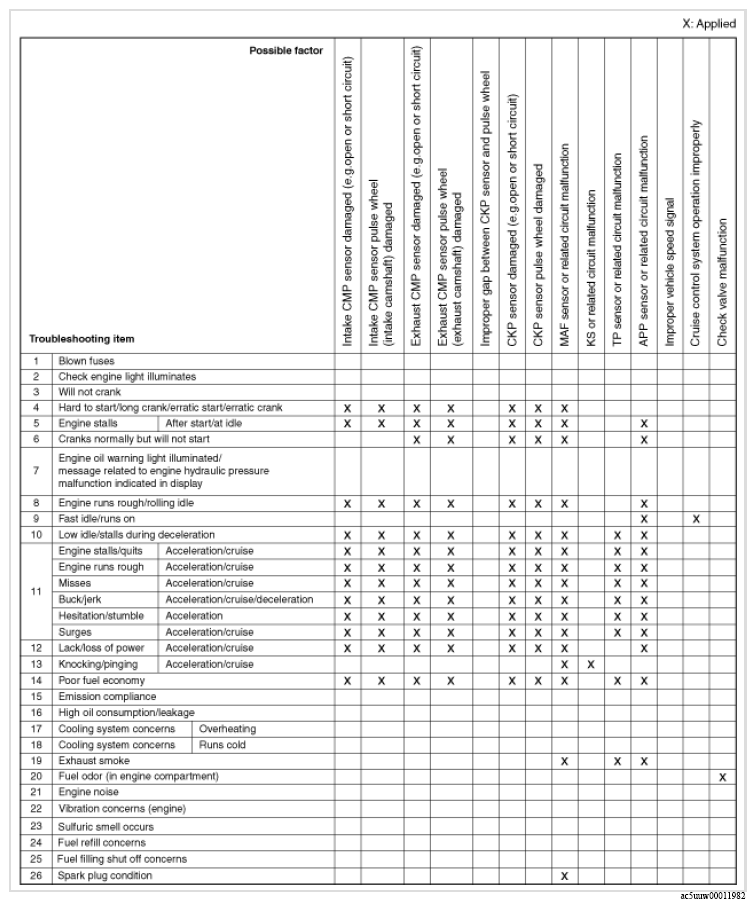

G16327138Courtesy of MAZDA MOTORS CORP.

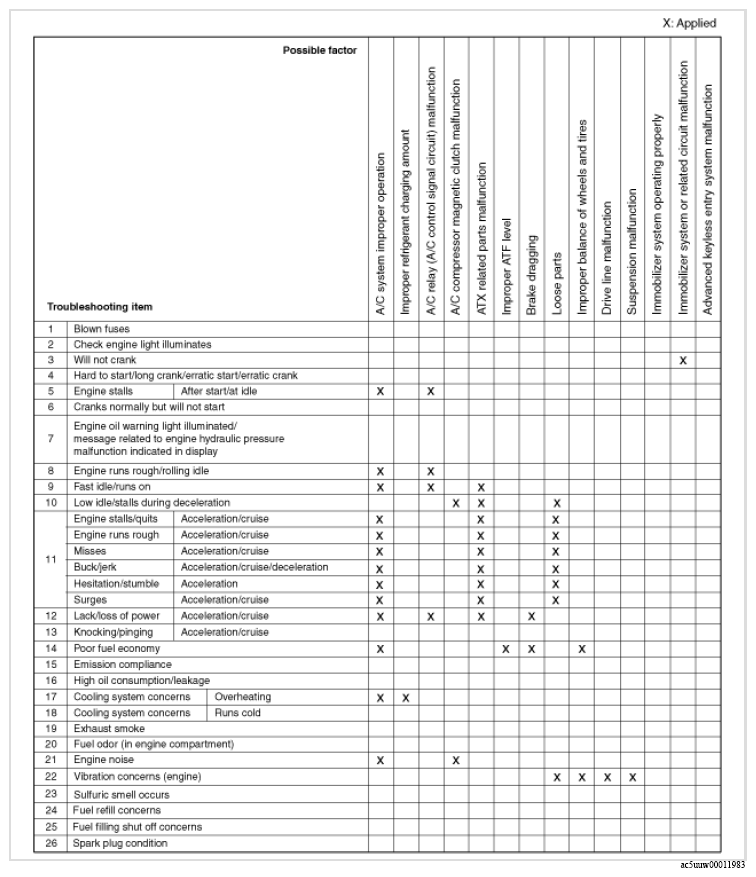

G16327139Courtesy of MAZDA MOTORS CORP.

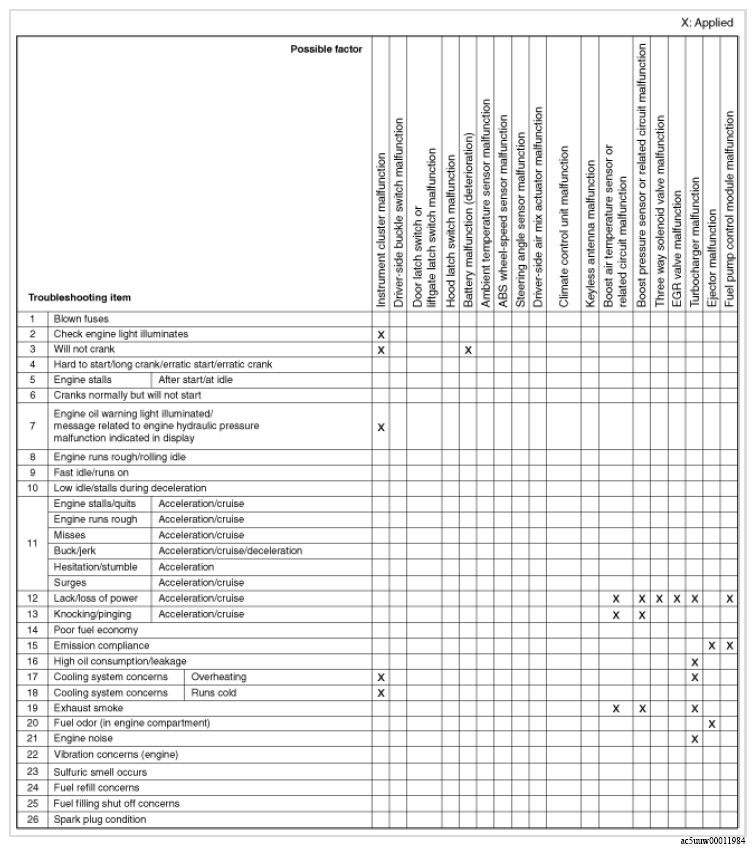

G16327140Courtesy of MAZDA MOTORS CORP.
