Quick Diagnostic Chart

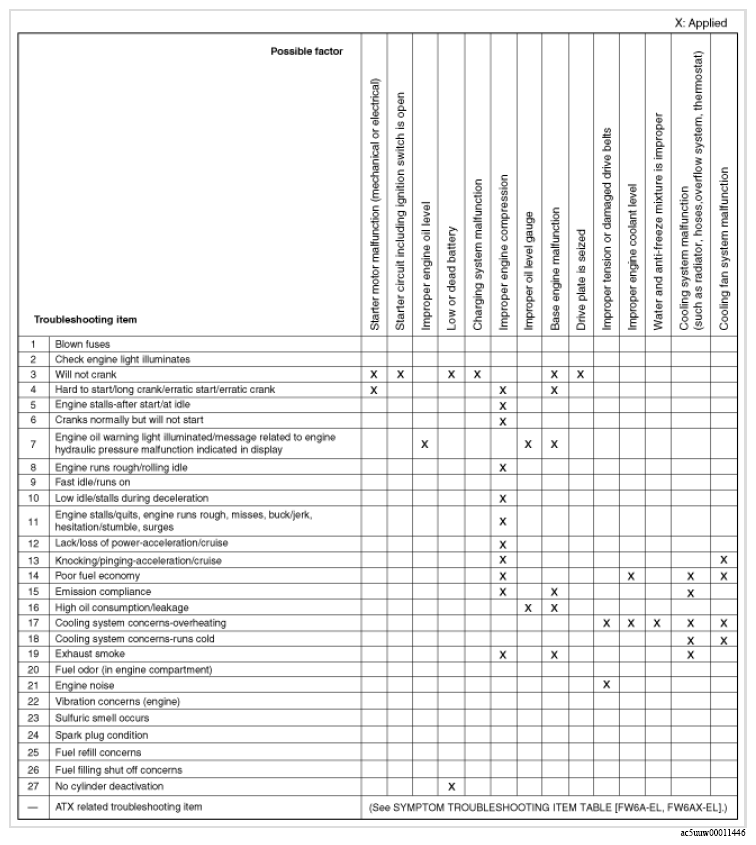

G16327169Courtesy of MAZDA MOTORS CORP.

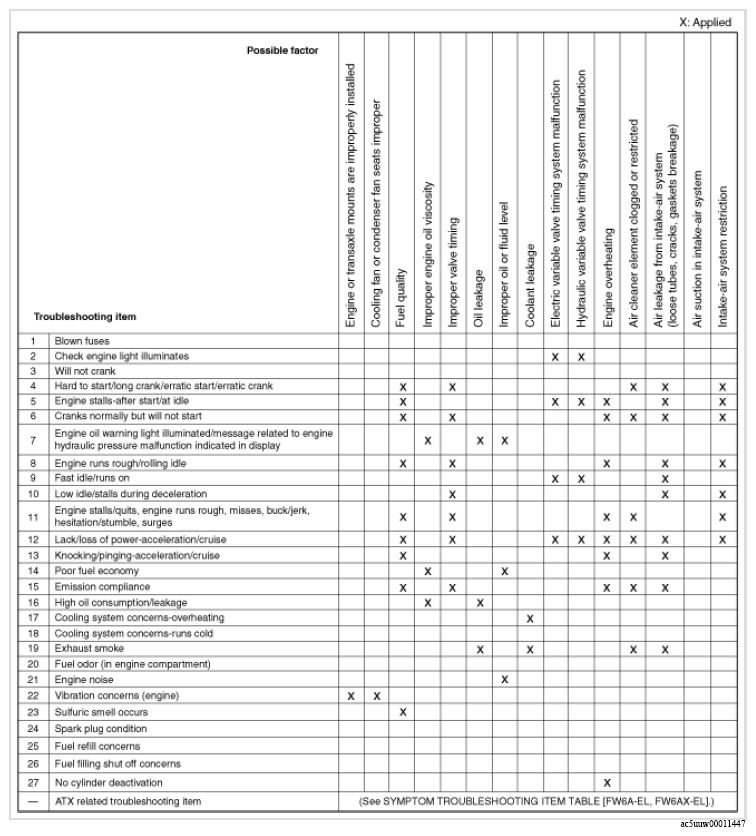

G16327170Courtesy of MAZDA MOTORS CORP.

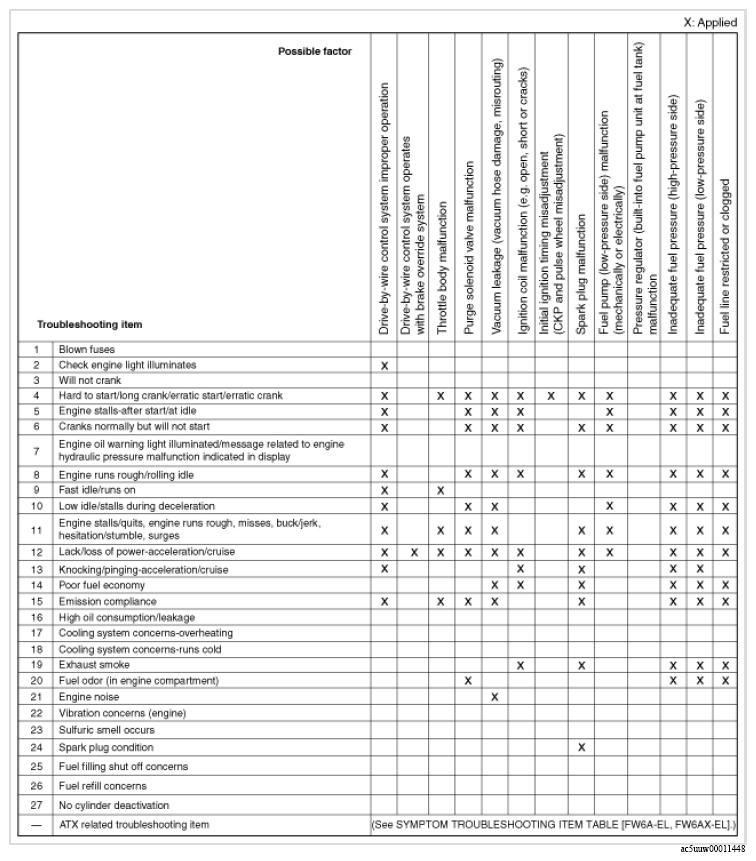

G16327171Courtesy of MAZDA MOTORS CORP.

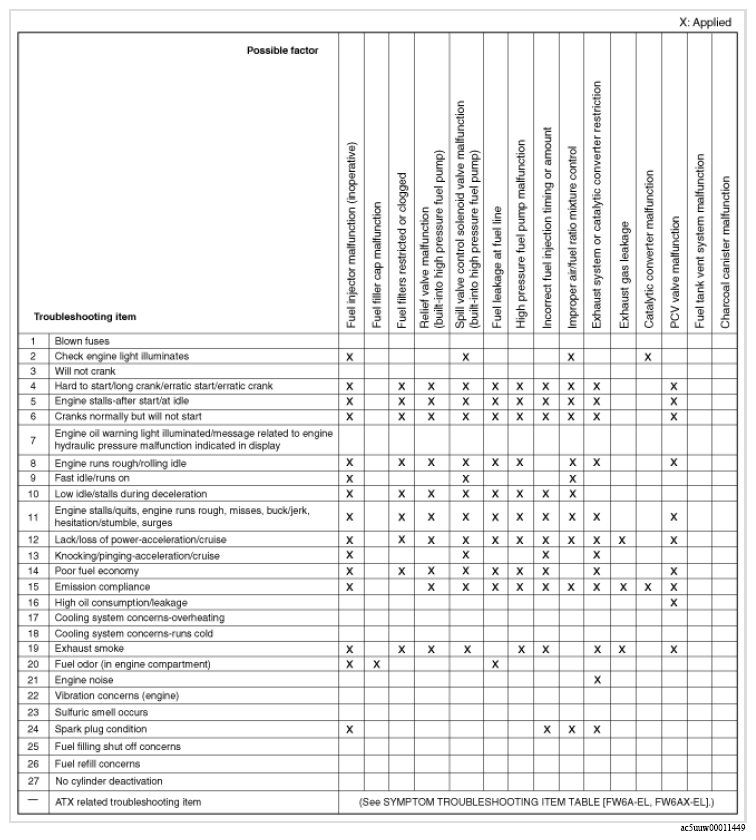

G16327172Courtesy of MAZDA MOTORS CORP.

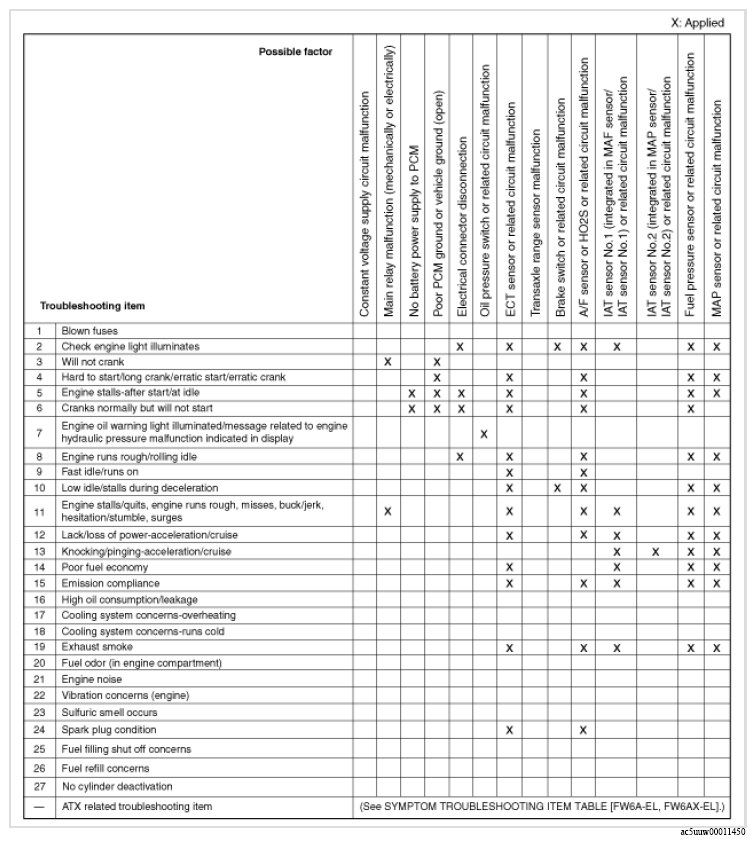

G16327173Courtesy of MAZDA MOTORS CORP.

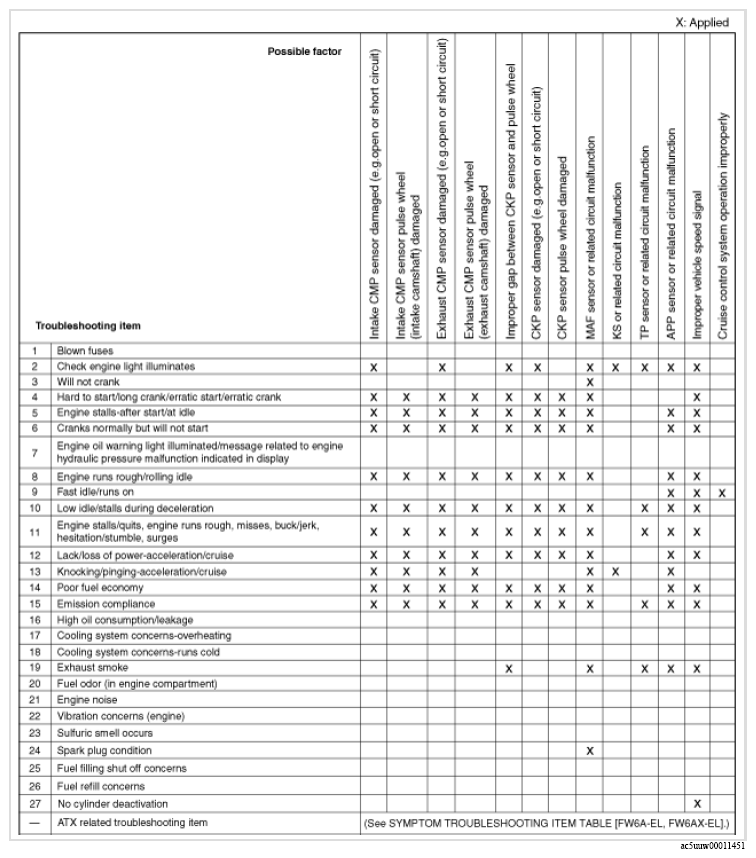

G16327174Courtesy of MAZDA MOTORS CORP.

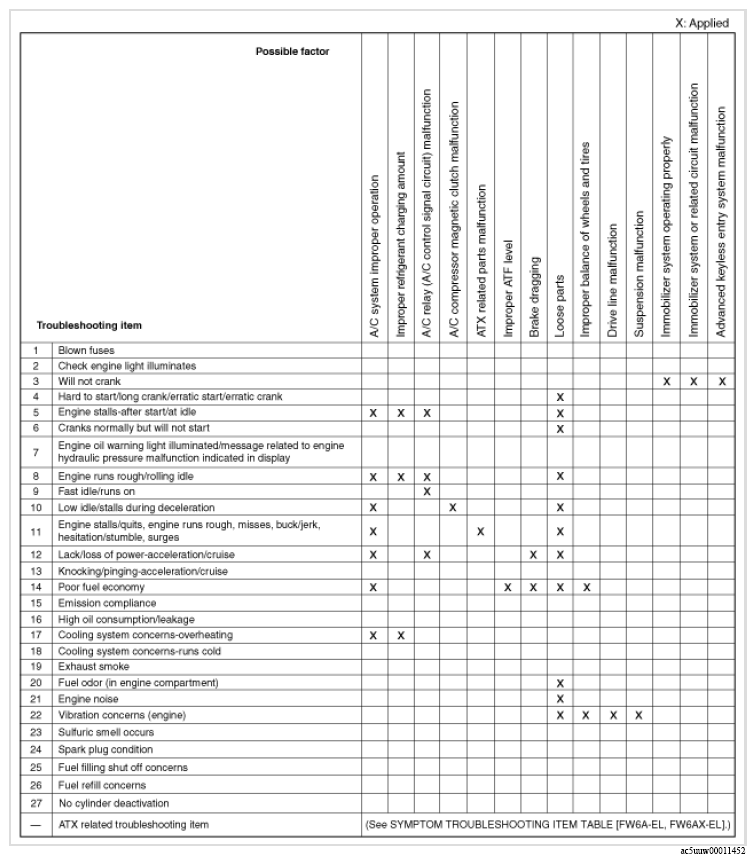

G16327175Courtesy of MAZDA MOTORS CORP.

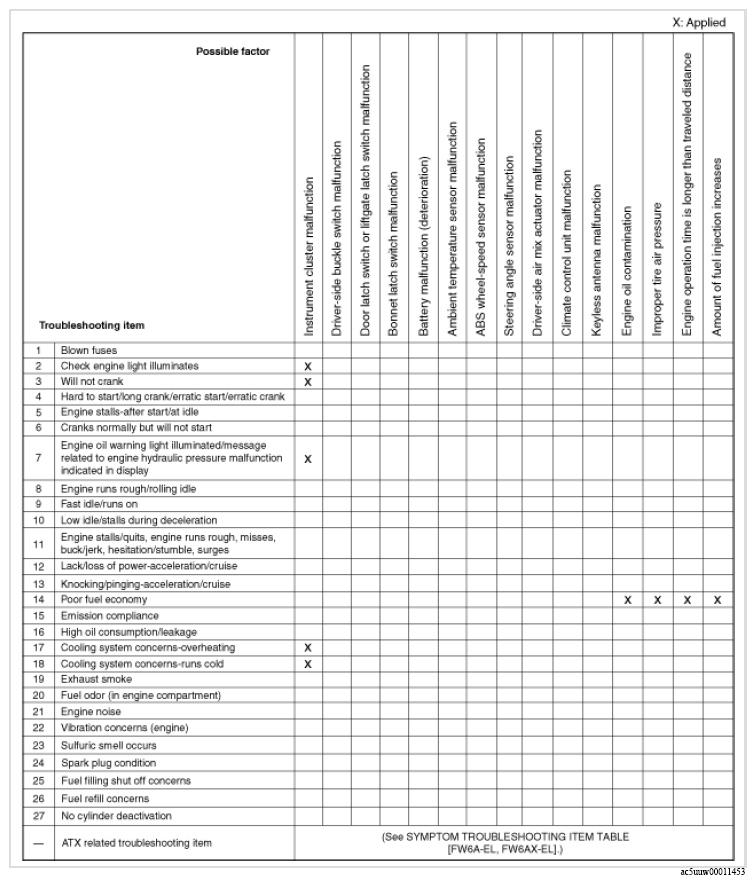

G16327176Courtesy of MAZDA MOTORS CORP.

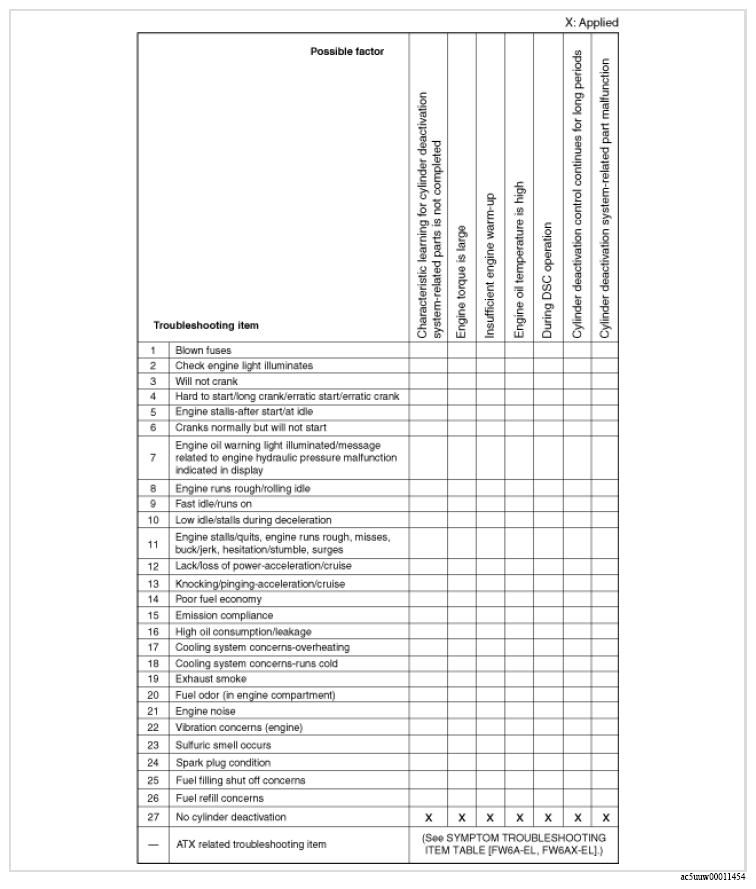

G16327177Courtesy of MAZDA MOTORS CORP.
