Starting System Location Index

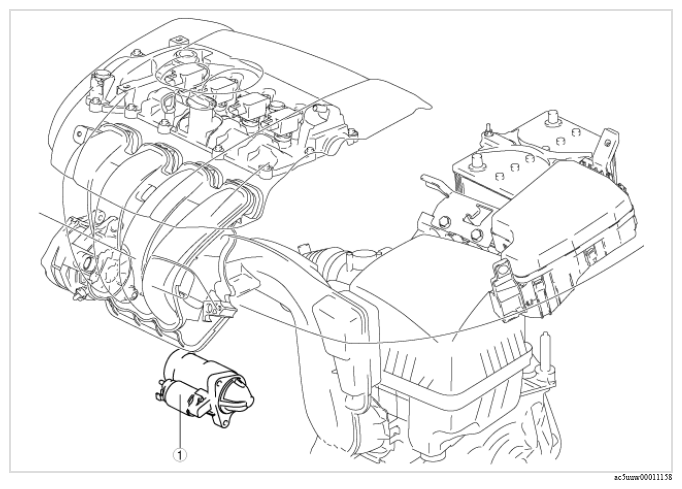

Fig 1: Starting System Components Location
G16328040Courtesy of MAZDA MOTORS CORP.
STARTING SYSTEM COMPONENT OPERATIONS

Component No. Refer to
1 Starter (See STARTER REMOVAL/INSTALLATION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .)
(See STARTER INSPECTION [VIN L (WITHOUT CYLINDER DEACTIVATION)] .)
(See STARTER DISASSEMBLY/ASSEMBLY [VIN L (WITHOUT CYLINDER DEACTIVATION)] .)
