VIN M, VIN L

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure below.
    G13115524Courtesy of MACK TRUCKS, INC.

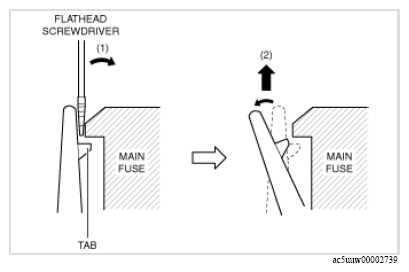

  3. Move the flathead screwdriver in the direction of the arrow (1) shown in the figure below, pull up the main fuse cover in the direction of the arrow (2) shown in the figure below, and detach the main fuse cover tab from the main fuse.
    G13115525Courtesy of MACK TRUCKS, INC.
  4. Remove the main fuse cover.
    G13115526Courtesy of MACK TRUCKS, INC.
  5. Remove the nuts.
    Fig 1: Main Fuse Nuts With Torque Specification
    G13115527Courtesy of MACK TRUCKS, INC.
  6. Remove the main fuse.
  7. Install in the reverse order of removal.
