Set Plate Installation Note

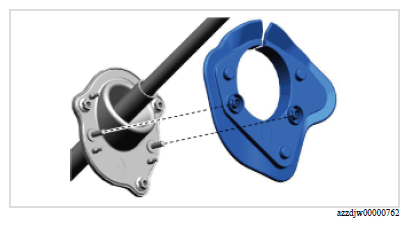

  1. Insert the set plate until it is seated in the bolt areas of the dust cover.
G16712159Courtesy of MAZDA MOTORS CORP.
